BVV XL Mini Closed Loop Extraction Starter Kit

Power Lab Supply 1SKU: EK0002-V1
No reviews

Select Configuration: Explorer
Price:
Sale price$981.09 USD
Description

XL Mini Closed Loop Extraction Starter Kit

(System comes with 1 yr. limited warranty)



Everything You Need to Get Your Extraction Started

Closed-loop extraction is a safe, fast, and efficient solution to removing oils from botanical material. Closed-loop systems allow you to do everything in a closed vessel.

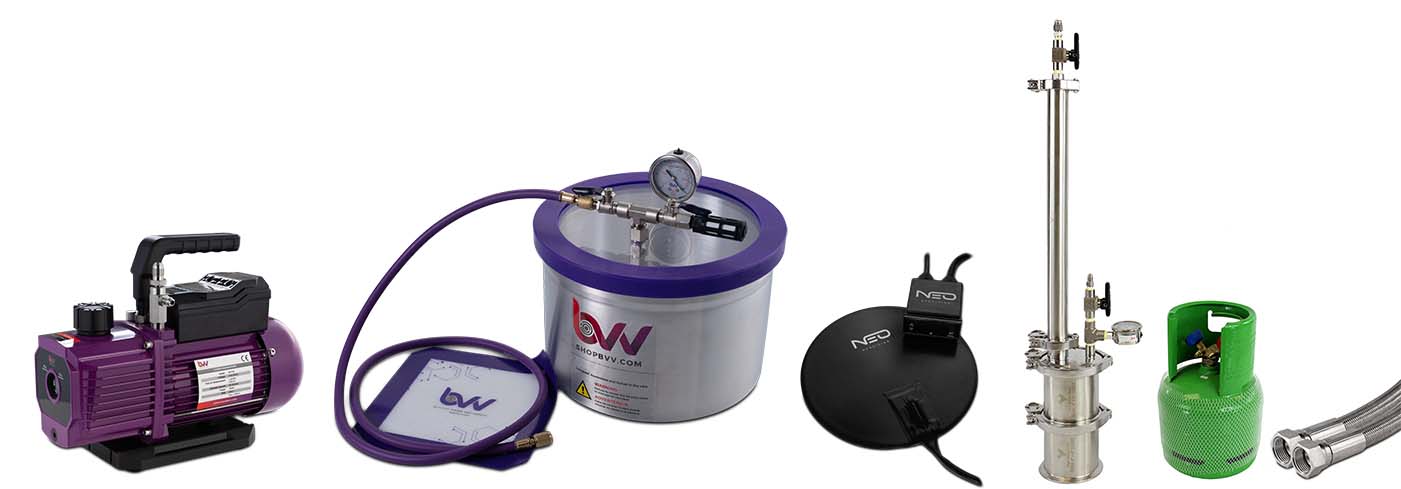

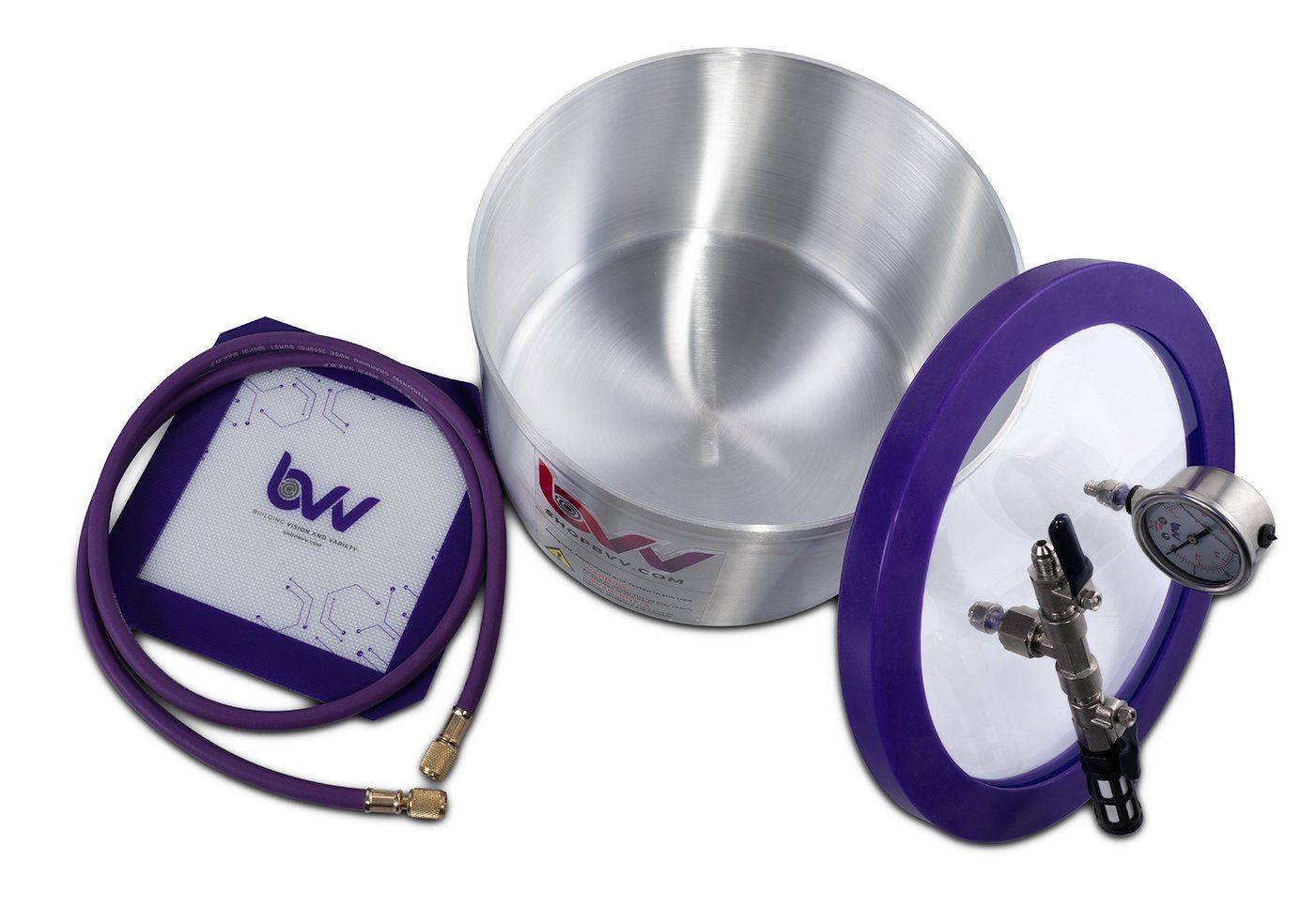

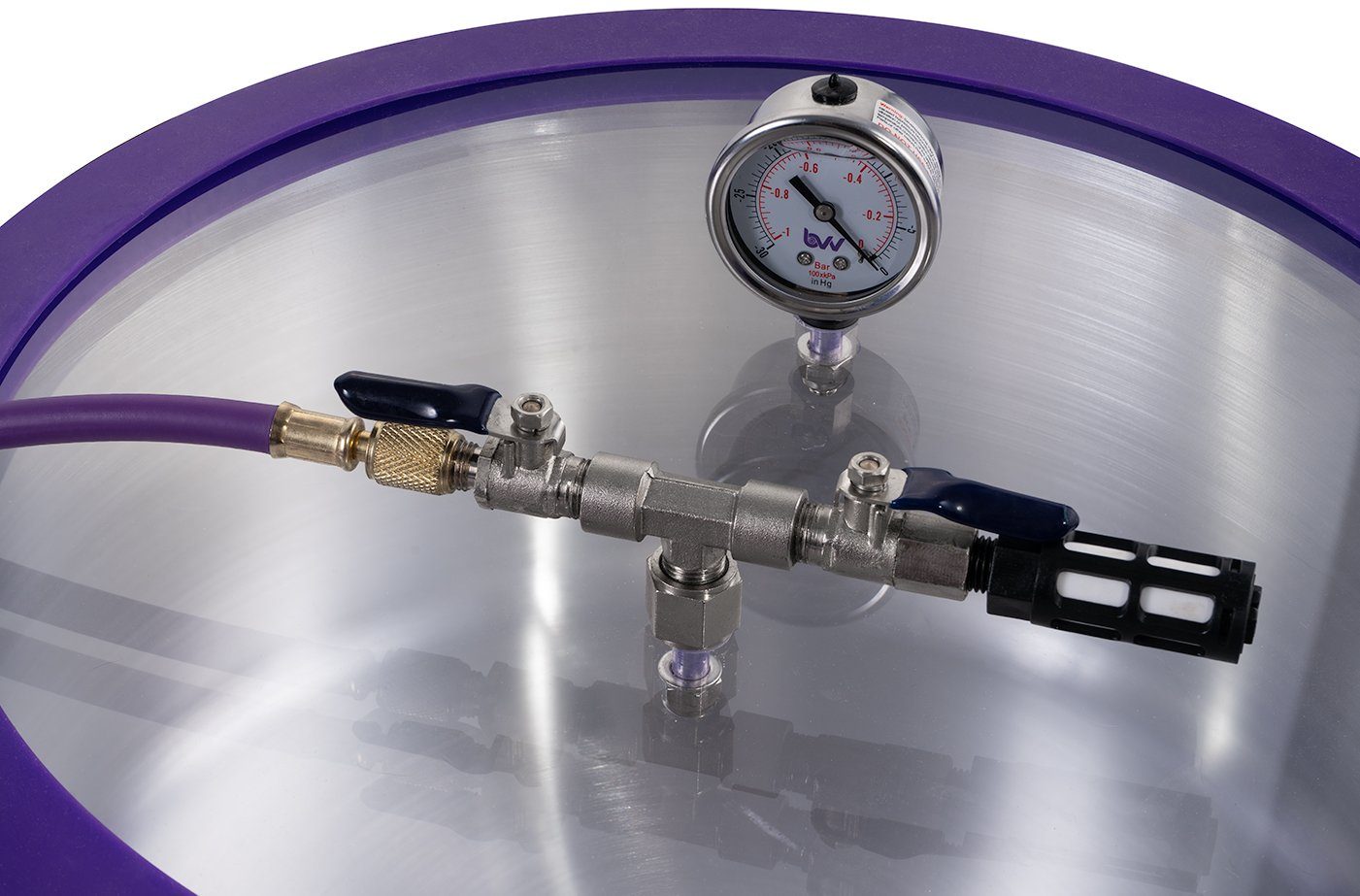

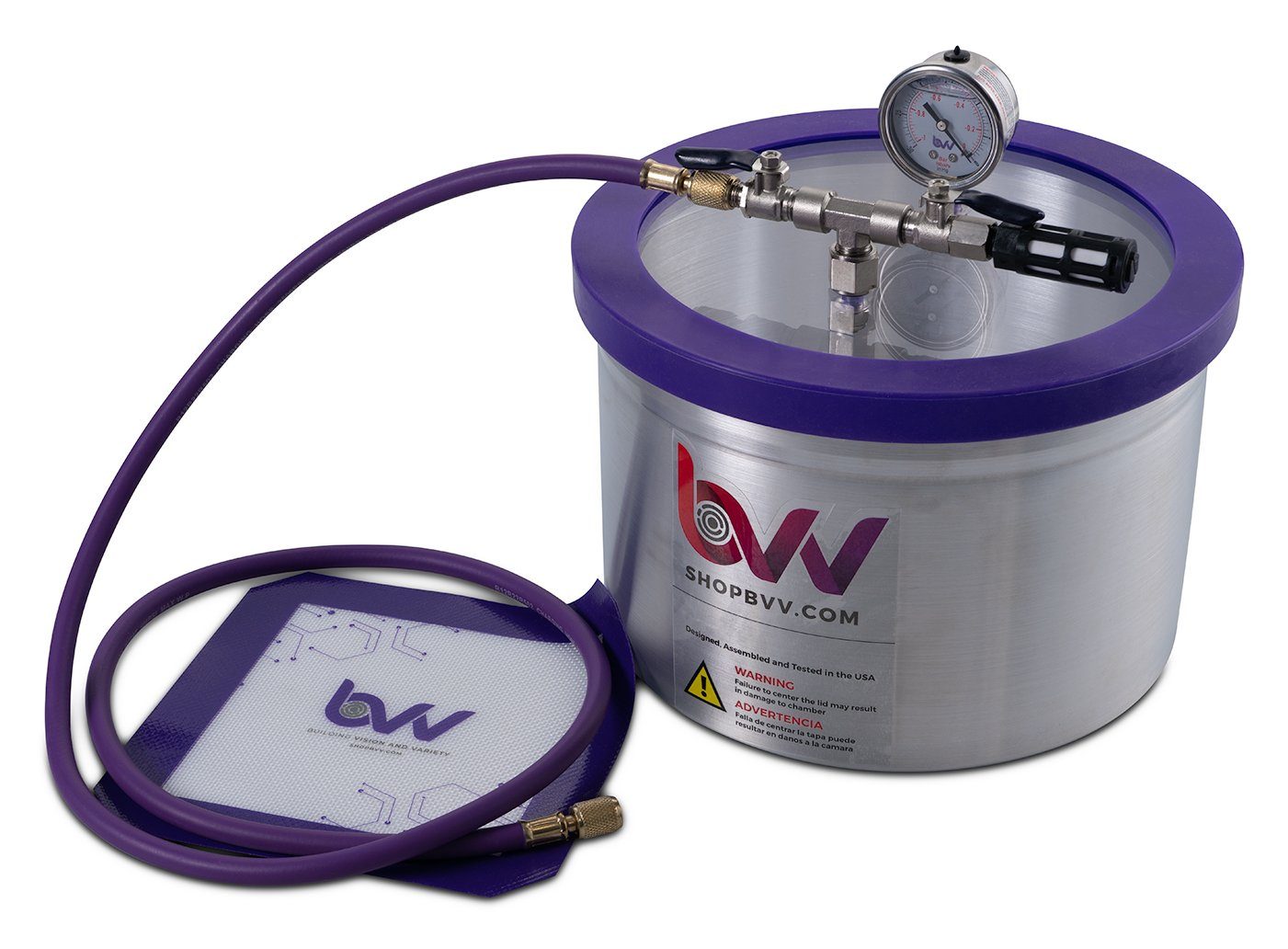

BVV™ has bundled our recommended vacuum chamber, vacuum pump, and complete extraction system to offer customers the most cost-effective solution possible.

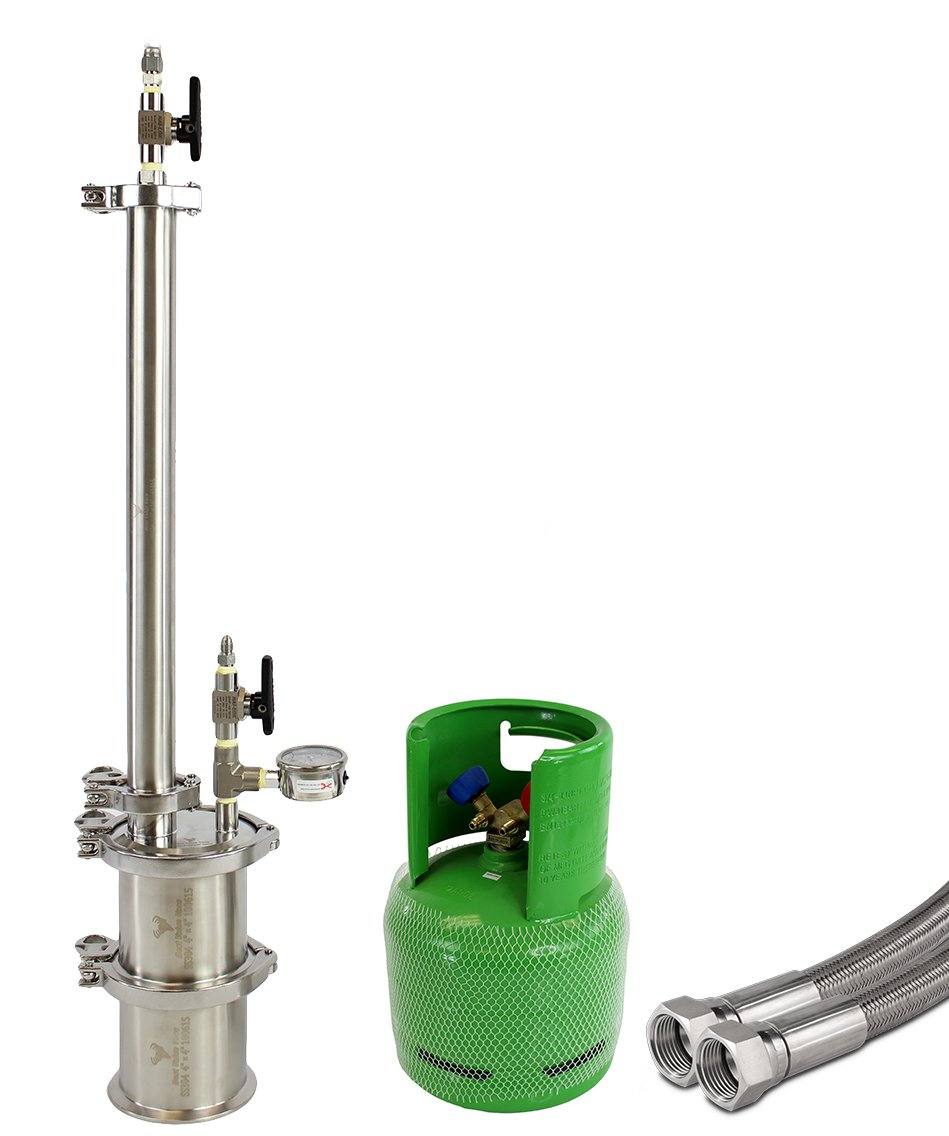

The Mini-XL Closed Loop Extractor Starter Kit is a step up from the closed column extractor starter kit. The Mini-XL Closed Loop Extractor is a tabletop version of a closed-loop extraction system that allows users to run personal or test-sized extractions in a short amount of time. The system also offers users the chance of recovering around 95% of their solvent. Not only does this save a considerable amount of money, but it's also safer for the user performing botanical oil extractions because the entire extraction process is in a closed-loop environment.



Mini CLS / Mini XL Upgrades:

Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. It comes with a welded bottom base and stainless reclaim container.  This model has minimal features to keep costs low while providing the necessary equipment to get the job done.



Professional: This model features upgrades to help produce a higher quality extract.  Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow to be suspended in the material column, as well as closing the collection base off during recovery.  Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.





Explorer Professional
  • Standard Valves
  • Welded Bottom Base
  • Standard Valves
  • Dewaxer
  • Ball Valve
  • Splatter Platter Base



Specifications:

  • 1.5"x 12" 304 Stainless Steel Material Tube 90g
  • 304 Stainless Steel Heavy Duty Miniature Ball Valves
  • System Rated to 100PSI
  • Multiple port connections for 1/4" 316 Stainless SAE 37 Degree
  • 304 Stainless Steel Base Container 4" diameter by 8" tall
  • Tri-Clamps at all interfaces make for high pressure, easy-clean unit.
  • Buna-N Gaskets are designed for Oil Processing Temp range -40-200F
  • Dimensions (Inches): 16" Overall Height x 4" Diameter
  • Weight: 18 lbs.
  • Operating Temperature Range: -40F to 160F
  • Ultimate Vacuum: as low as 10 Microns
  • Designed to run a single can of solvent and reclaim it (350ml) Max FILL!!
  • Construction: All components made of 304 Stainless Steel.
  • Max Vacuum -29.9inHg
  • High Polish Interior

Automatically Includes:

  • High-Pressure PTFE Braided Stainless Steel Hose
  • Can Tap Tool
  • 6LB Mastercool Solvent Recovery Tank

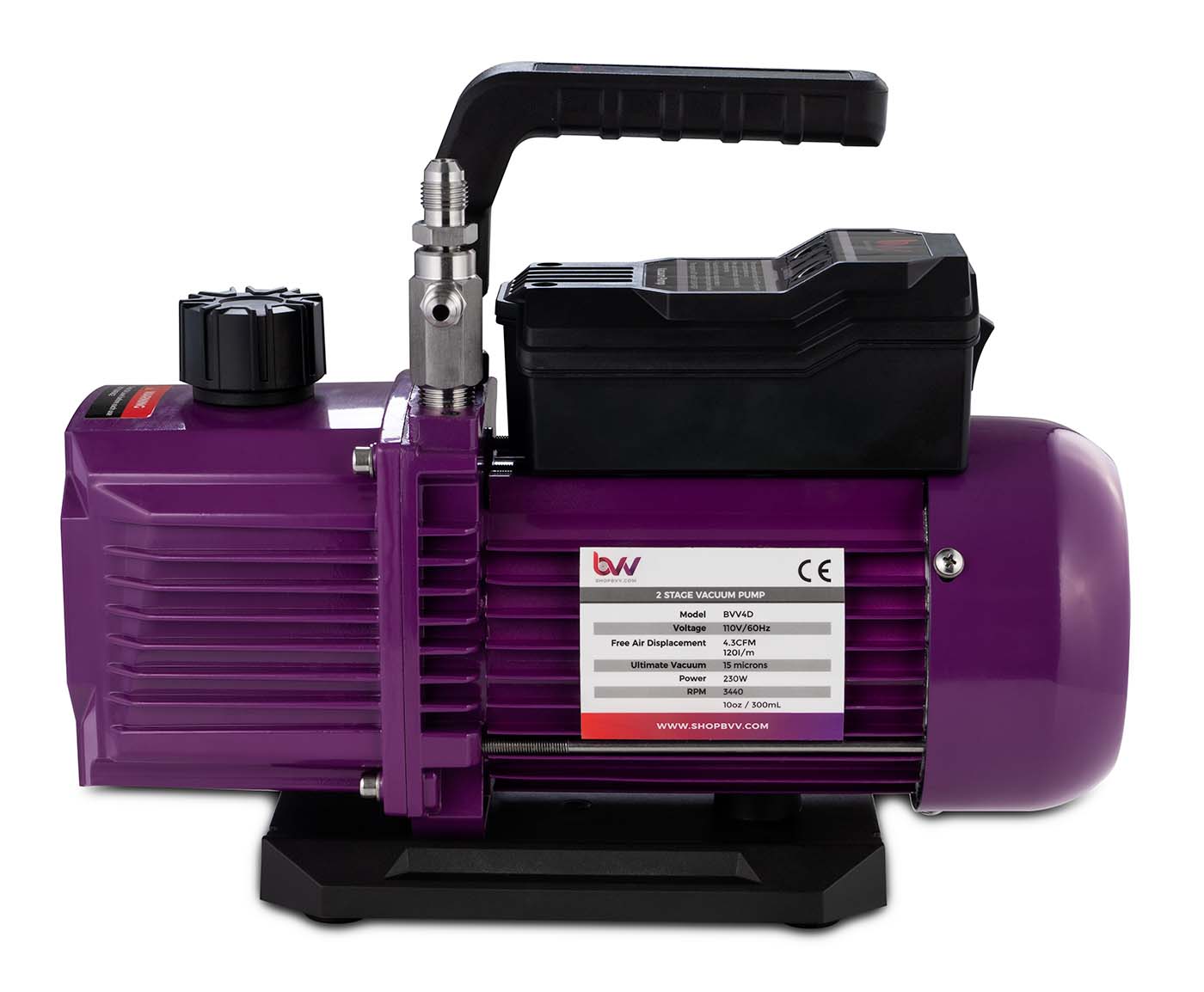

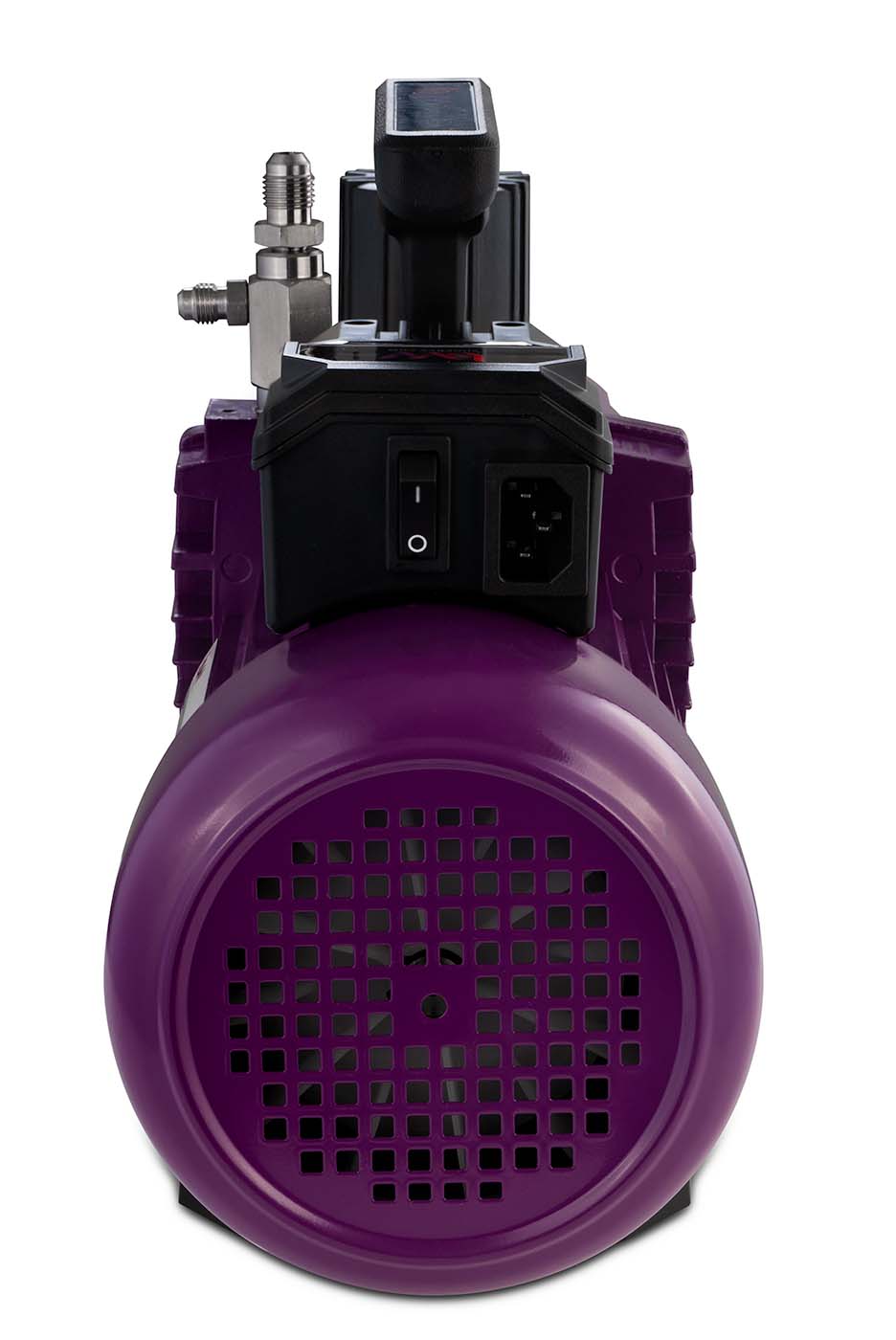

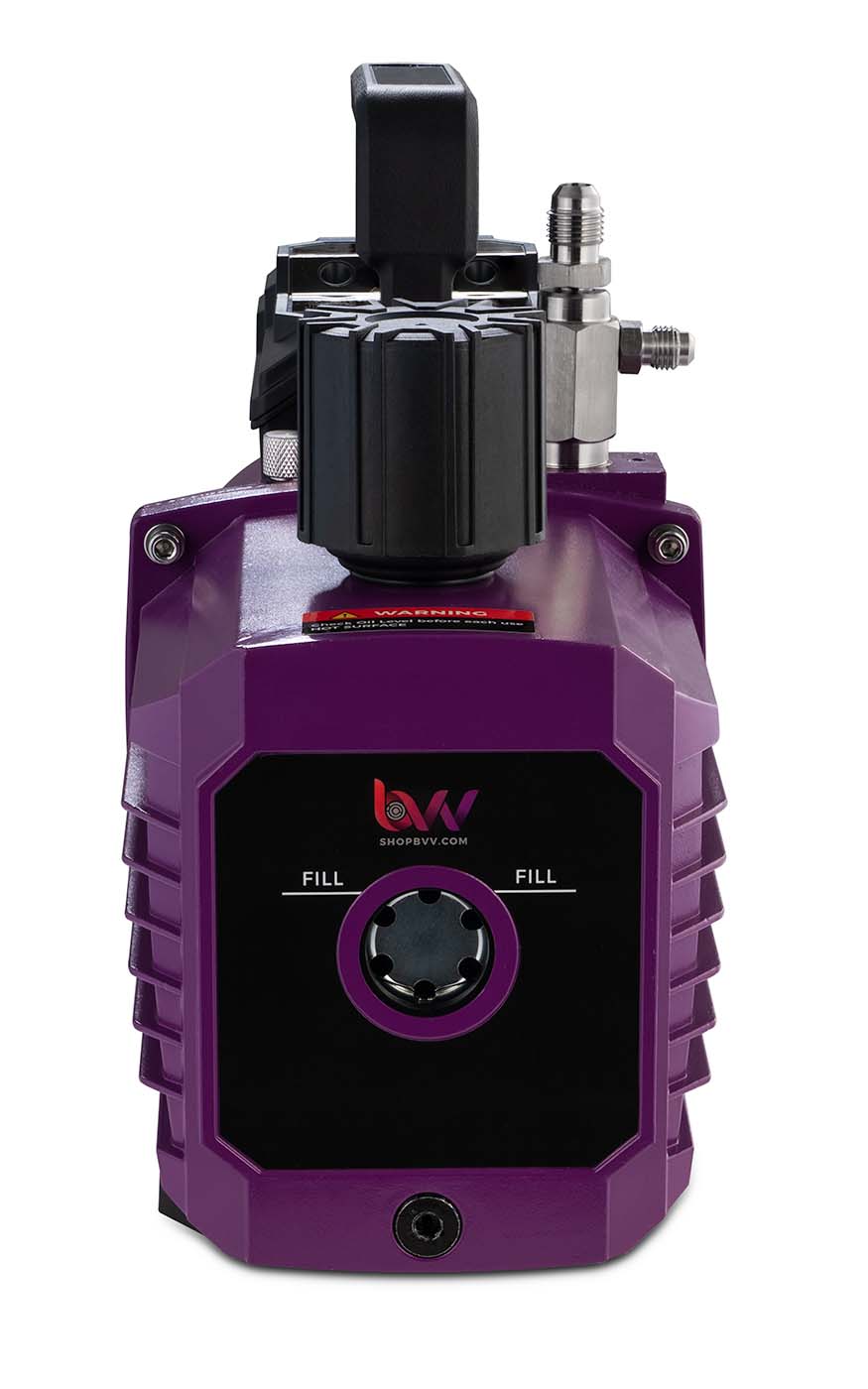

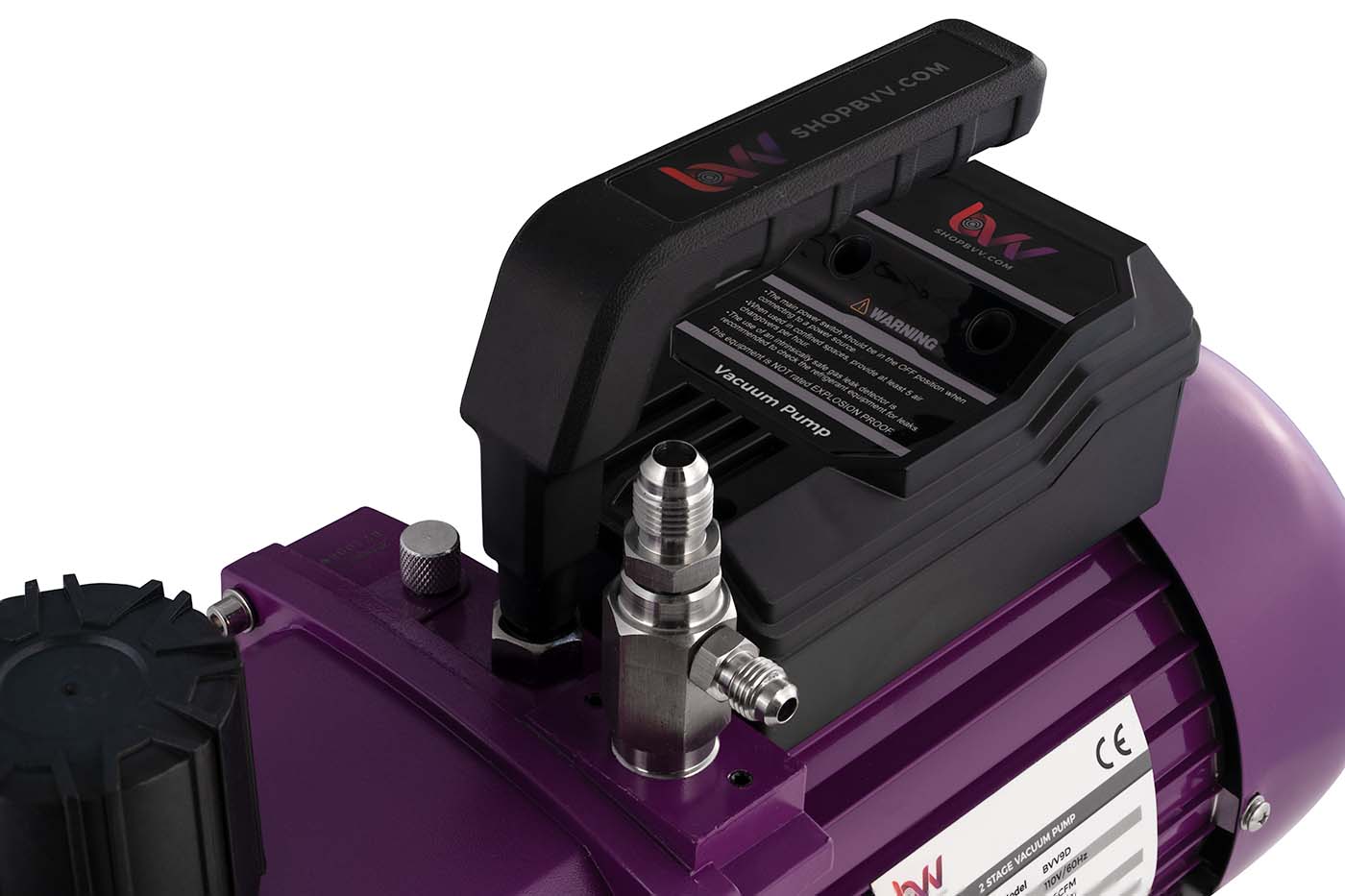

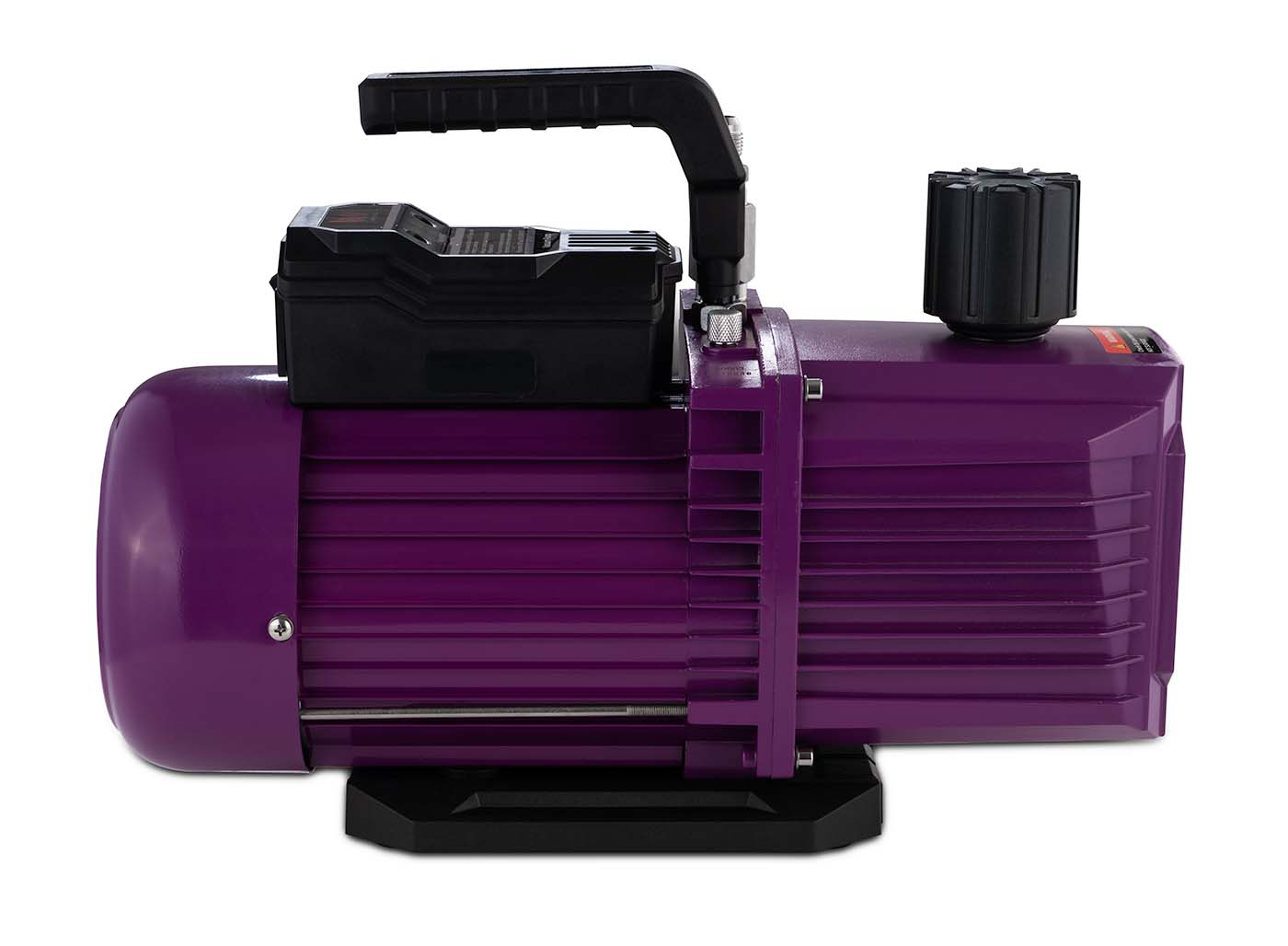

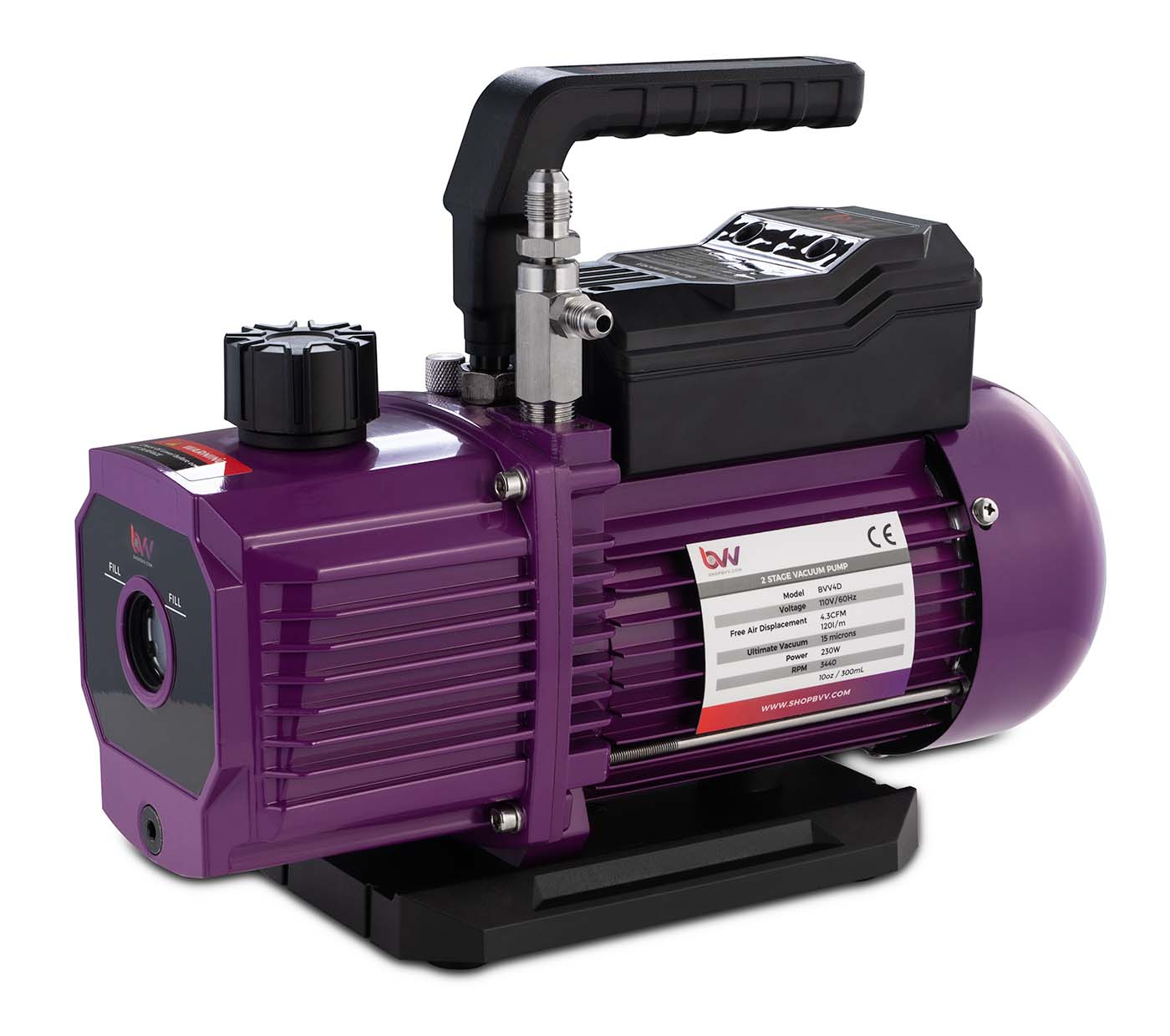

BVV™ V4D 4CFM Two Stage Vacuum Pump



This is the BVV™ V4D 4CFM Two Stage Vacuum Pump used in botanical extraction.

Please refer to these charts for vacuum specifications at altitude and conversions:





Key Feature

  • Internal Check Valve
  • Oil Mist Filter Cap
  • Larger Oil Reservoir for longer oil life
  • Lightweight
  • Rubber Feet for noise dampening
  • Reliable, economical, and efficient



Models BVV4D BVV7S BVV9D
Stage 2 1 2
Ultimate Vacuum (Microns) 15 75 15
Refrigerant Classes A1 Non-Toxic, Non Flammable
Dimensions (in) 12.4 x 4.8 x 10.16 12.4 x 4.8 x 10.16 15 x 6.3 x 11.22
Weight (lbs) 19.4 16.5 32
Free Air Displacement 4.3 CFM 6.4 CFM 8.5 CFM
Motor Size (HP) RPM 1 HP 3440 RPM
Oil Capacity 10oz / 300ml 14.5oz / 410ml 24oz / 680ml
Voltage 110V 60 Hz
Power Cord Hard Wired 3m / 9.8' Power Cord
Power Switch Standard On / Off
Operating Temperature Range 32F to 125 F (0C to 52C)
Gas Ballast Valve Yes No Yes
Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports

*Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend tightly packing coarse ground material.

***Note: Butane (Solvent) is not included with systems unless ordered in the drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.
