Description

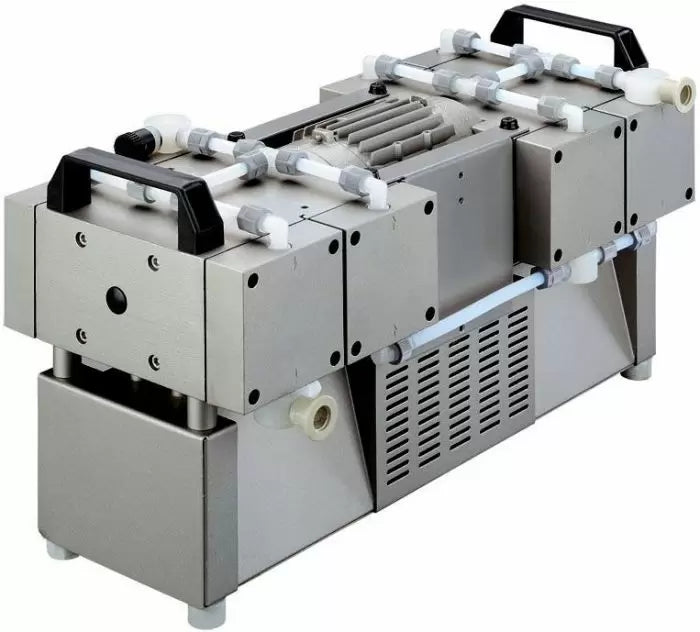

The Welch 2163 is a high capacity full chemical-resistant, 8-head, oil-free dry diaphragm vacuum pump with all-aluminum contact surfaces and deep vacuum capability. Oil-Free, portable, full chemical-resistant, means less maintenance and no more frequent and costly oil change, or cross-contamination.
Ai is now the official dealer of Welch vacuum pumps. These pumps are made in Germany with one year warranty and technical support from Welch Vacuum.
Â
Â
| Â Electrical requirements |
 110V or 220V, 50/60Hz single phase |
| Â Pumping rate |
 7.8 cfm / 222 L/min |
| Â Gasket material | Â All-PTFE |
| Â Ultimate vacuum level |
 6 torr / 8 mbar |
| Â Maximum vacuum | Â 29.9 in. Hg |
|
 Inlet/Outlet |
|
| Â Adjustable vac./gas ballast | Â No |
| Â Unit dimensions | Â 21.25 x 9.25 x 12" (LxWxH) |
| Â Package dimensions | Â 28 x 16 x 20" (LxWxH) |
| Â Shipping dimensions | Â 40 x 48 x 25" (LxWxH) |
| Â Package weight | Â 90 Lbs |
| Â Shipping weight | Â 130 Lbs |
| Â Compliance | Â cUL |
|
 Part description |
 Quantity |
Part image |
| Â Welch 2163 6.1 cfm 8-head diaphragm pump |
1 pc |
|
| Â Threaded Hose Barbs (Welch PN: 710798) | 2 pc | |
|
 Pneumatic Plastic Muffler |
1 pc | |
| Â Power Cord with Plug | 1 pc | |
| Â 12 mm diameter EDPM O-ring (Welch PN 829217-3) | 2 pc | |
| Â User's manual | 1 pc |
Tariff fees may apply. An invoice may be sent separately.
