Description
Product Details
- Corrosion Resistant
- Free Air Displacement of 127 L/min (4.5 cfm)
- Ultimate Vacuum Pressure 29" Hg (25 torr)
- Fitted Explosion Proof Motor (Class I, Groups C & D; Class II Groups F & G) with CSA/UL Mark
- Portable
- Recommended for 20L or 50L rotary evaporators
- UL & CSA certified
- Click here to download and
Suggested Applications
- Vacuum Filtration
- Vacuum Oven
Important: Always use a certified electrician for proper installation of pumps with explosion proof motors. Conduit wining required. No cord, plug, or switch included.
|
Part description |
Quantity |
Part image |

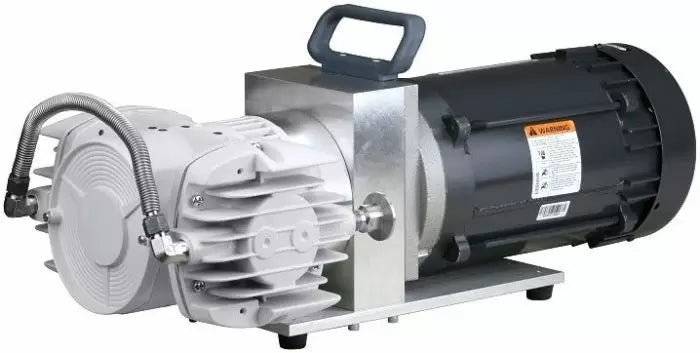

| Welch 2090 4.5 CFM Diaphragm Pump with Explosion Proof Motor |
1 pc |
|
| Motor Wiring Diagram (should be on motor) | 1 pc |
|
| Fastening Kit (4x Fastening Screws, 1x Ground Screws, 4x Lock Washers) | Located inside Junction Box |
9 pc |
|
| Outlet Box | 1 pc |
|
| User's manual |
1 pc |
