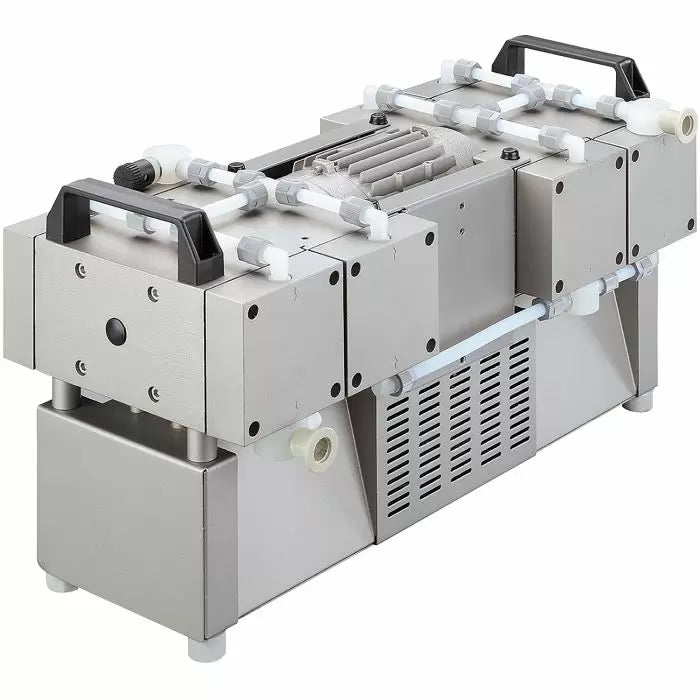

Across International Welch 2064B-01 Oil-Free 6.1 CFM 6 Torr PTFE Diaphragm Pump - 110v 60Hz

Save $141.30 USD
Power Lab Supply 2SKU: 2064B-01
No reviews

Price:
Sale price$6,923.70 USD Regular price$7,065.00 USD
Description

The Welch-Ilmvac 2064B-01 is a powerful, dry, chemical duty vacuum pump. The strong flow of 173 lit/min, along with the deep ultimate vacuum of 6 Torr, makes this quiet diaphragm pump the perfect networked vacuum pump. The Ilmvac chemical duty pumps can be used for any harsh chemical service.

The Ilmvac PTFE pumps are designed for quick and easy, infrequent maintenance. The Ilmvac PTFE pumps are light weight and quiet diaphragm membrane vacuum pumps providing excellent performance for rotary evaporators, vacuum ovens, degassing, mixing and networked vacuum projects.

Clean operation (oil free), low cost of ownership, highest reliability – these are just a few benefits that customers can appreciate when they use a diaphragm pump for laboratory or industrial applications. With a broad range of diaphragm pumps – ultimate vacuum from 75 to 1 mbar and peak flow rates up to 138 l/min – Welch offers specific pump families and models for a variety of uses.

Diaphragm pumps work completely without oil which has several advantages for the user:

Less maintenance compared to other technologies saves time and money Dry vacuum allows cleaner workplace and environment Uncontaminated pumping of gases results in cleaner samples and no risk of oil back-streaming





Specifications
Specifications



 Electrical requirements
 110V 60Hz single phase
 Pumping rate
 173 Lit/min. (6.1 CFM)
 Gasket material  All-PTFE
 Ultimate vacuum level
 6 torr / 8 mbar
 Maximum vacuum  6 Torr (8 mbar) 29.7" Hg
 Inlet/Outlet
 10mm hose barb / 1/4" OD hose barb
 Adjustable vac./gas ballast  No
 Unit dimensions
 28x17x20" inches LxWxH
 Package dimensions  28 x 20 x 20" (LxWxH)
 Shipping dimensions  40 x 48 x 25" (LxWxH)
 Package weight  90 Lbs
 Shipping weight  130 Lbs
 Compliance  cUL
Standard Packages
Standard package



 Part description

 Quantity

Part image

 Welch 2064B-01 Oil-Free 6.1 CFM 6 Torr PTFE Diaphragm Pump
1 pc

 Threaded Hose Barbs (Welch PN: 710798) 2 pc

 Pneumatic Plastic Muffler
1 pc

 Power Cord with Plug 1 pc

 12 mm diameter EDPM O-ring (Welch PN 829217-3) 2 pc

 User's manual 1 pc
