Description

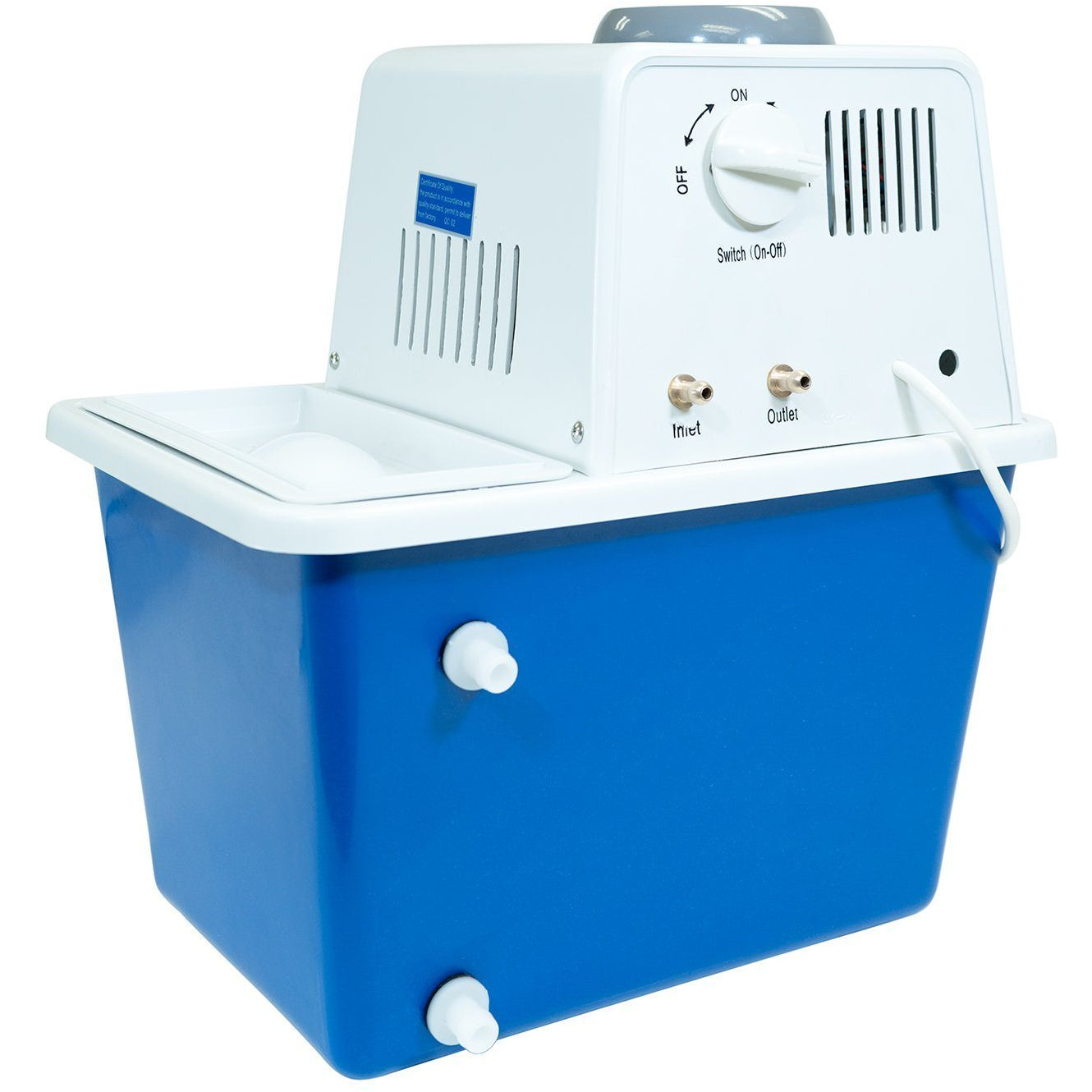

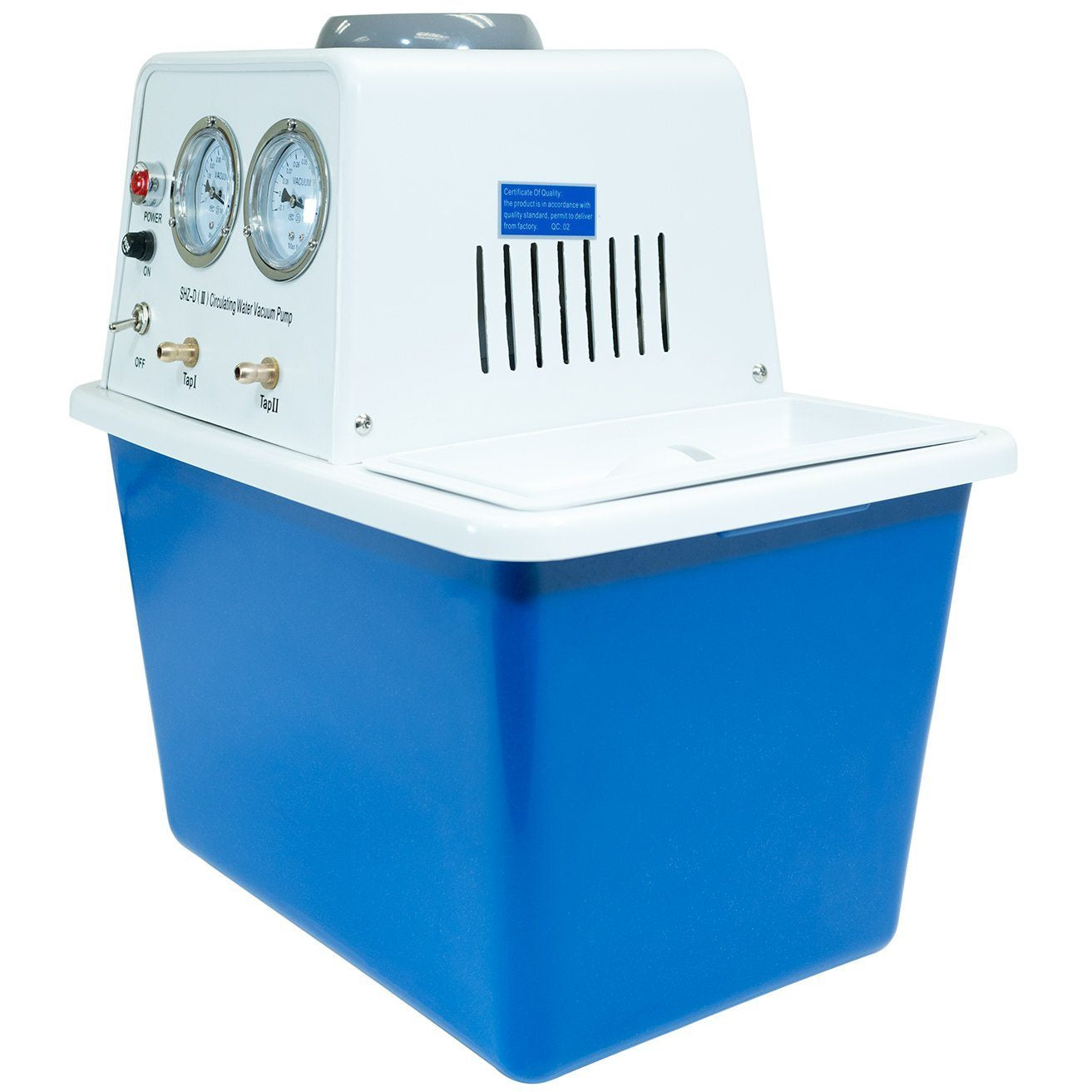

Water Circulation Vacuum Pump
This Circulation and Vacuum Pump combines the best of both worlds by using the circulating water to pull a vacuum which requires no oil at all and has very low maintenance requirements overall due to this unique process and design. Each vacuum port on the unit pulls vacuum separately from one another so the user can use it for different applications at the same time or combined to increase the vacuum. This pump will also circulate water through the backports as needed to cool and application and dissipate heat as needed.
| Specifications | |
| Vacuum Degree | 0.0980Mpa (735 Torr) @ 25°C |
| Single Tap Exhaustion | 10L/min |
| Voltage | 110V / 50Hz USA Plug |
| Noise | <50DB |
Â
Â
| Specifications | |
|---|---|
| Number of Vacuum ports: | 2qty (independent vacuum po |
| Vacuum Port Size: | 3/8" |
| Vacuum Depth: | 16 torr |
| Number or Water Circulation inlet: | 1qty |
| Number or Water Circulation Outlet: | 1qty |
| Pumping Speed: | 6.5 L/min |
| Reservoir Capacity: | 12L |
| Overall Dimensions: | 15.5" x 11.5" x 17" |
| Decibel: | 62 dB |
| Weight (no water): | 17lbs 10oz |
