Save $1,039.60 USD
Power Lab Supply 2SKU: VIM2000
Price:
$24,950.40 USD $25,990.00 USD
Description

Call us for detailed prices for any custom sizes

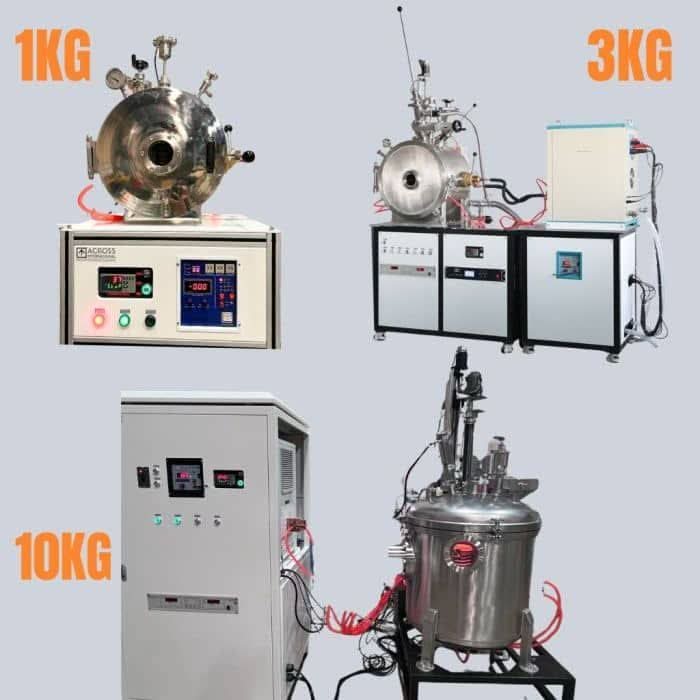

Please give us a call for detailed price for 5kg, 7kg, 25kg, 50kg, and 100kg

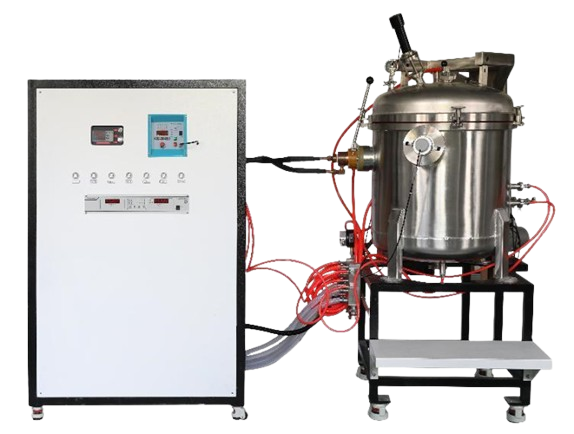

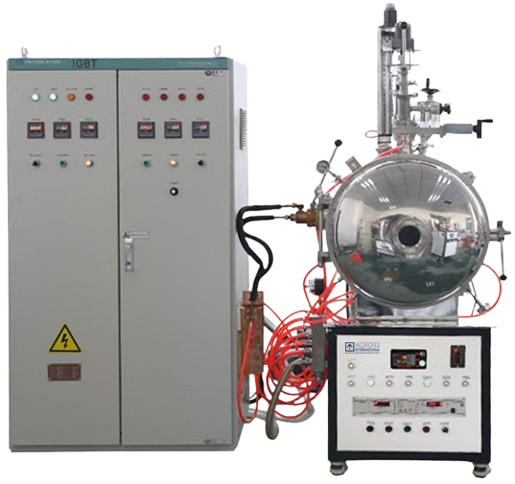

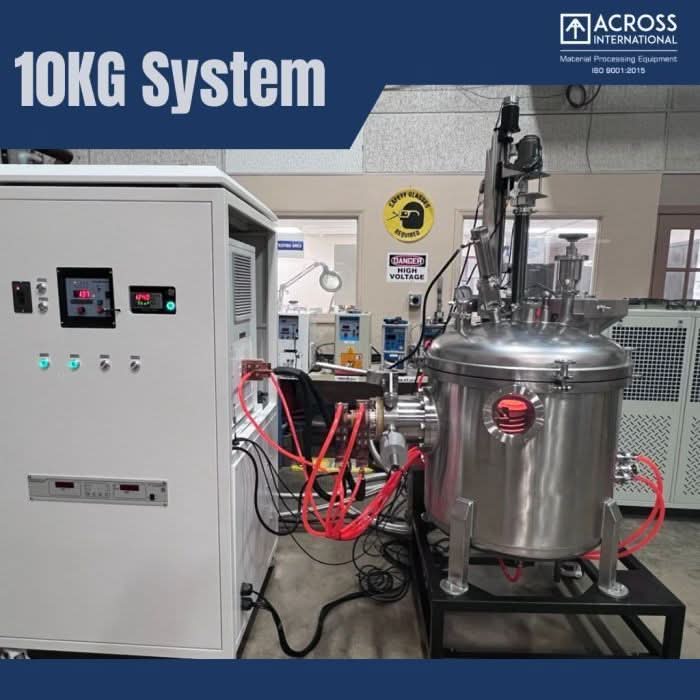

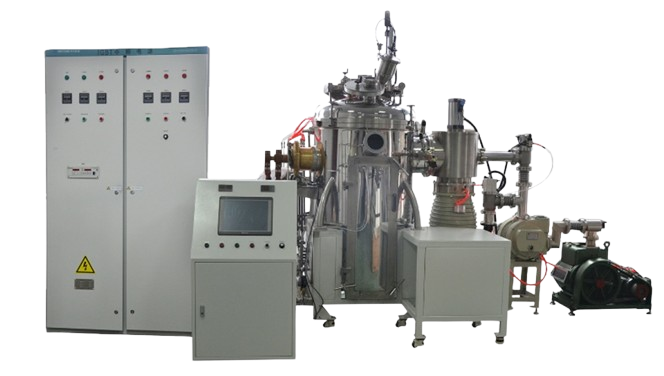

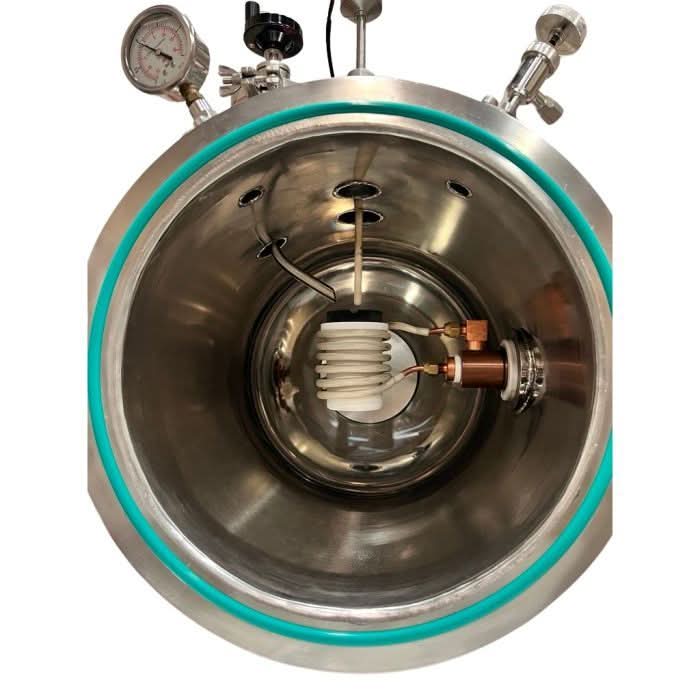

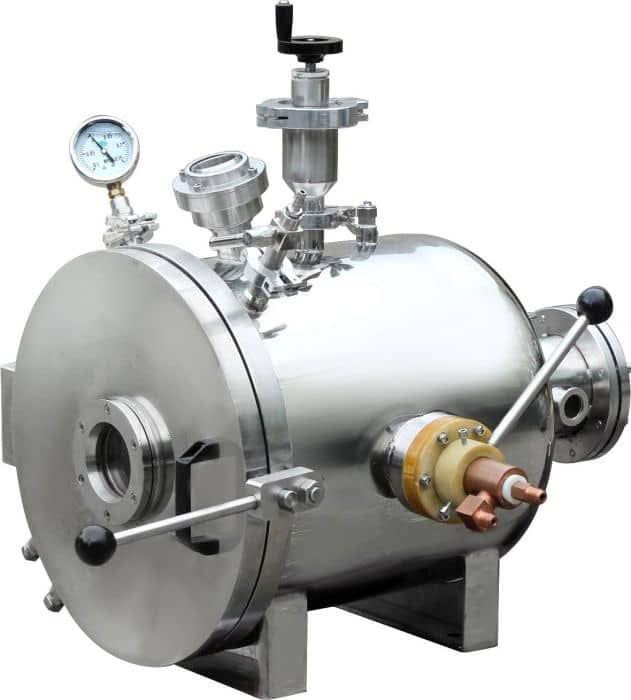

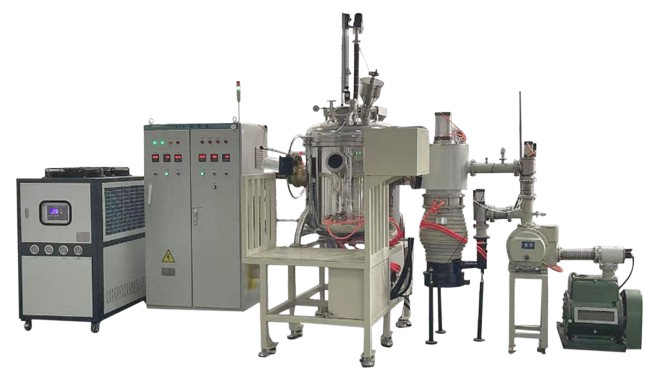

The new Across International VIM2000 stainless steel vacuum induction furnace allows you to melt material in a high vacuum environment.

Induction Heater NOT INCLUDED, to be used in conjunction with an induction heater and chiller. Please contact us for a complete system recommendation based on your needs.



 Features

  • Compact tabletop design
  • Side swing-open door for easy operation
  • Multiple KF ports for high vacuum operation
  • Jacketed water-cooled chamber keeps surface temperature down

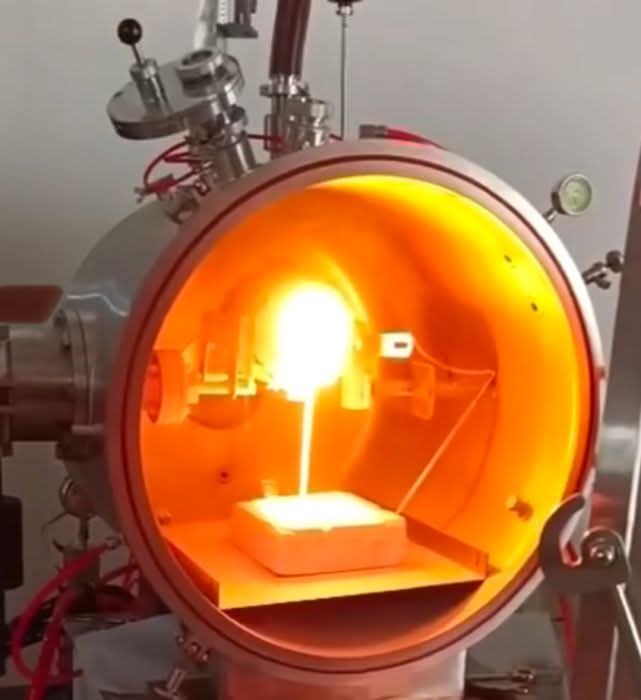

  • Swing handle allows pouring of melted material into a casting mold
  • Built-in water-cooled door channel protects door sealing gasket

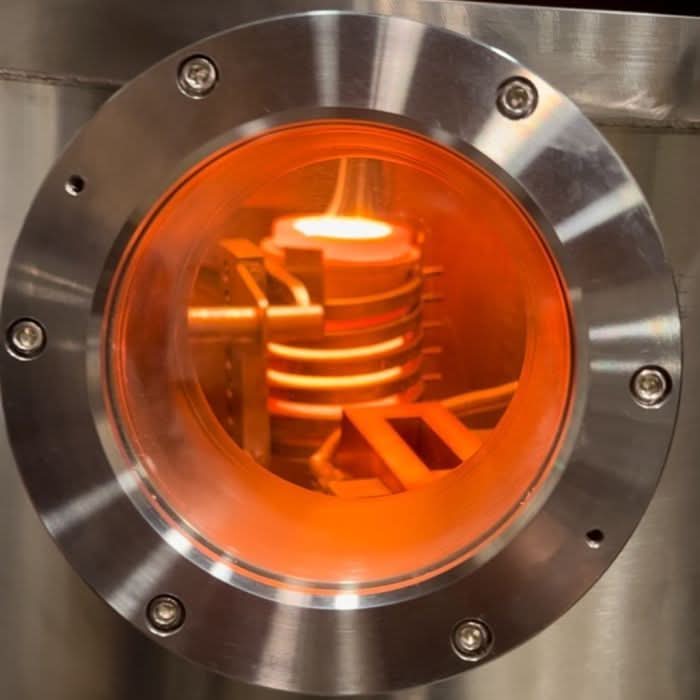

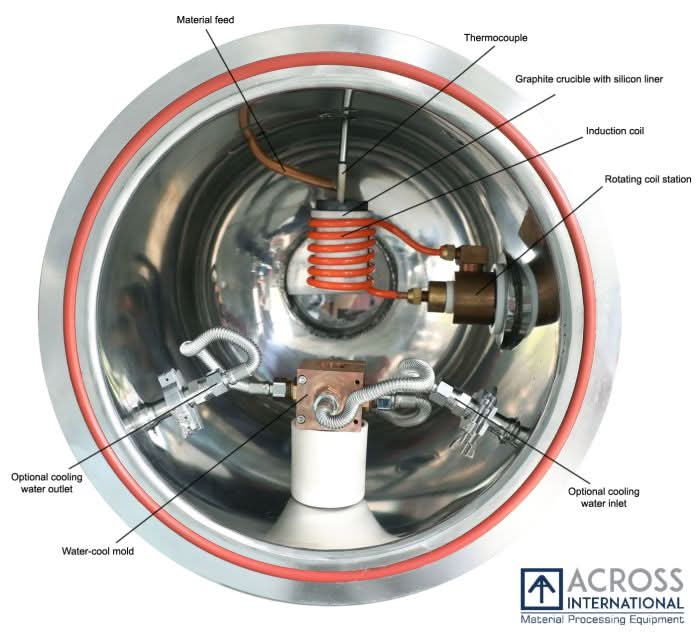

  • Built-in material feed port and viewing window
  • Gas in-feed capability. Pressure release valve required (not included)



Caution!

  • Vacuum pump should be always running during melting operation, pressure should be monitored at all time.
  • To eliminate arcing, protective gas and pressure release valve is required if system is pairing with a high frequency induction heater.









































More videoes:











 Model

 VIM2000
 Melting capacity

 1 to 100 Kgs (2.2 to 220 Lbs)
 Maximum temperature

 > 2000C (3632F)
 Chamber diameter

 300mm (11.8 inches)
 Maximum vacuum

< 0.75 micron / 0.001 Pascal
 Build material

 Stainless steel

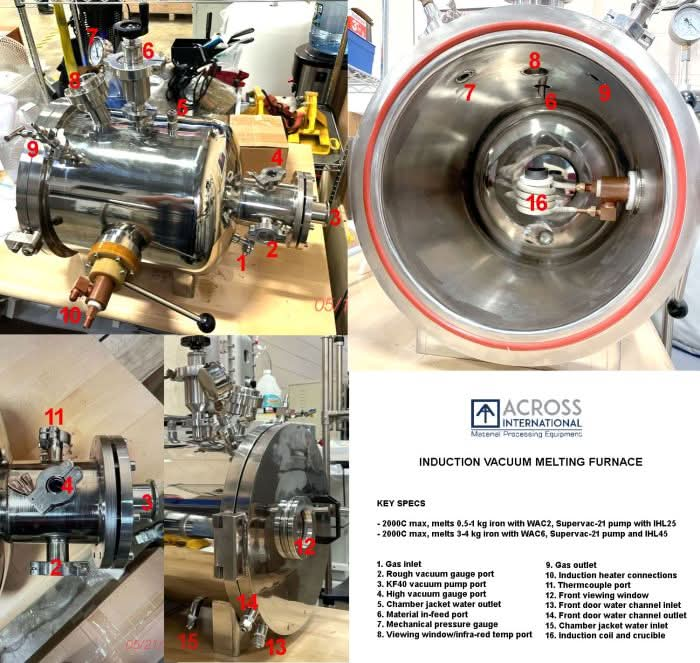

 Vacuum port  KF16, KF25, KF40
 Warranty  One year

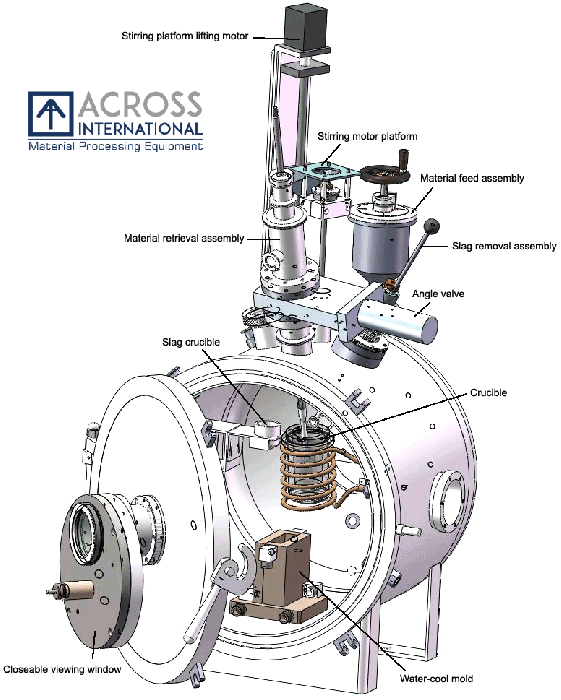

 Optional accessories

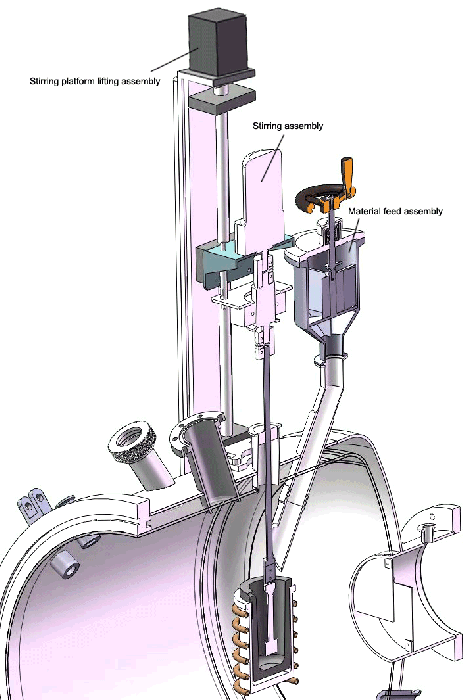

 - Stirring assembly
 - Material retrieval assembly

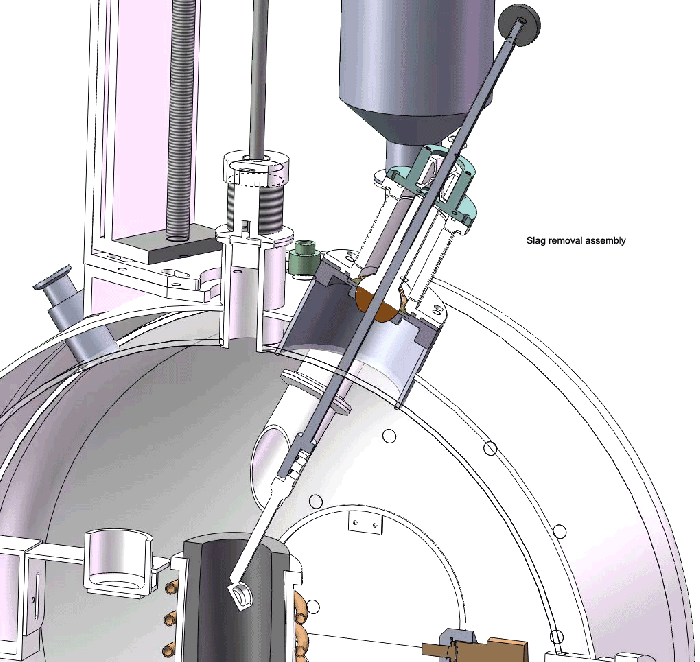

 - Slag removal assembly (for smlting)

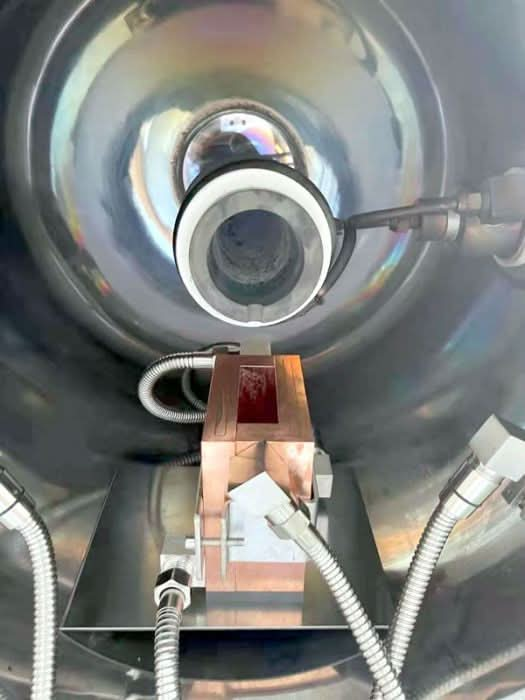

 - Plumbing for water-cool mold
 - Closeable viewing window
 - Induction heater
 - Recirculating chiller
 - Rough vacuum pump, turbo pump
 - High precision vacuum gauge
 - KF bellows, clamps, tubing, vacuum pump oil, mist filter
Recommended settings

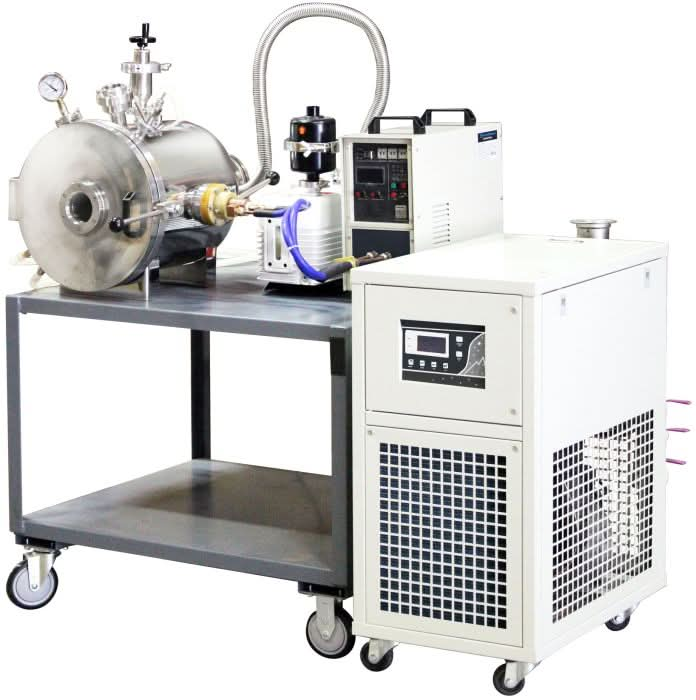

 Melting 0.5 to 1 kg of iron: WAC1 chiller, SuperVac-21 pump, IHL25 low frequency induction heater

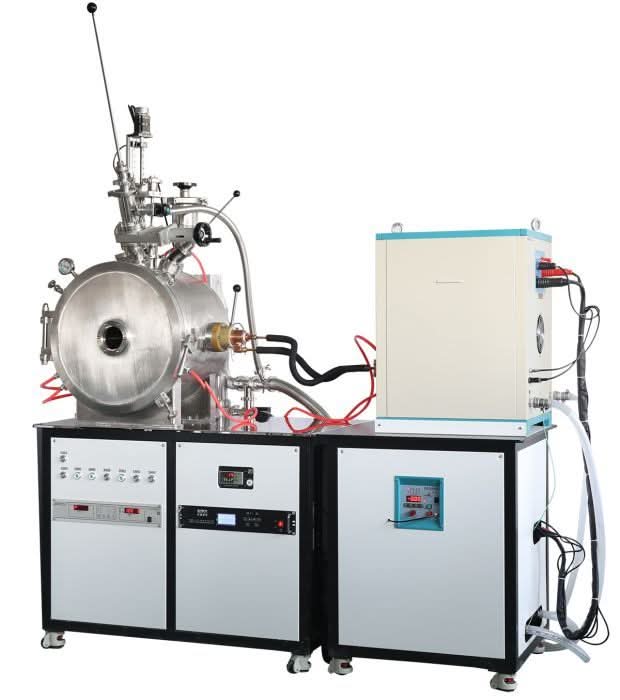

 Melting 3 to 4 kgs of iron: WAC4 chiller, SuperVac-21 pump, IHL45 low frequency induction heater
