Description

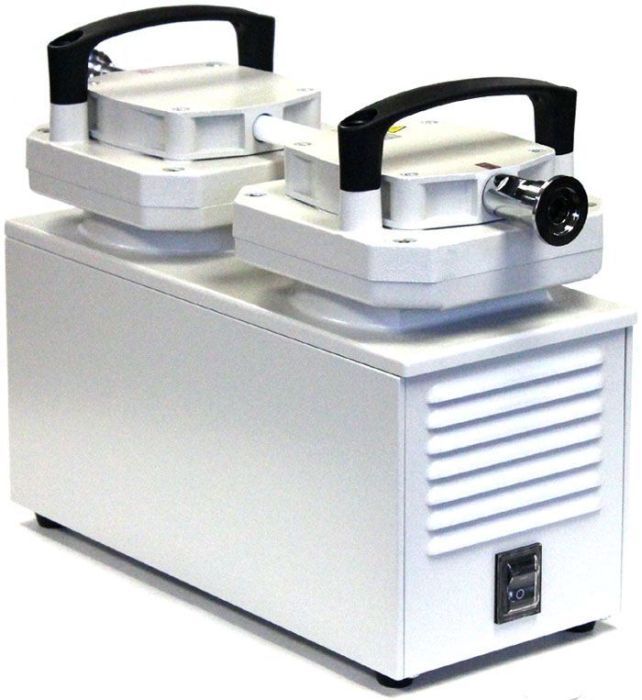

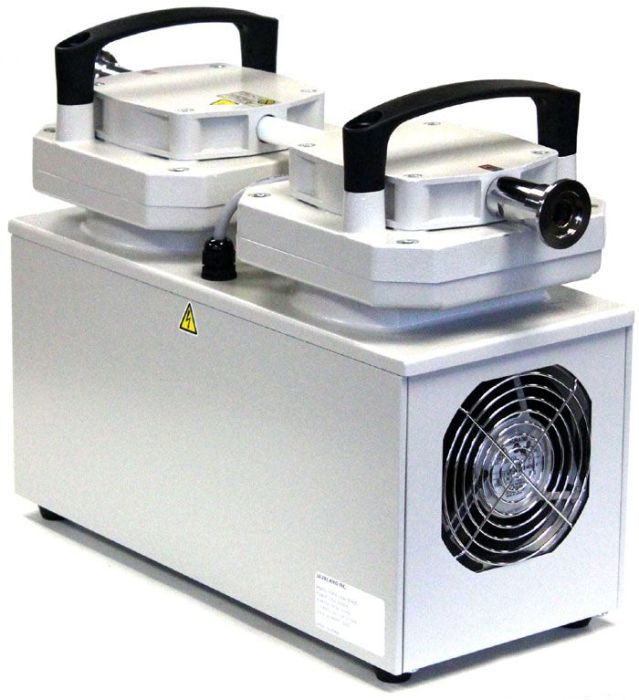

Ai exclusive, compact, lightweight, manufactured and imported directly from Japan, ULVAC UDP-6 is a high capacity full chemical-resistant 2-head pump that creates deep vacuum by reciprocate movement of rubber diaphragms. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.
Applications
- TUV certified to UL and CSA standards
- Moisture & solvent evaporation
- Vacuum chucks, wafer and tip handling devices
- Vacuum tweezers, medical appliances
- Printing equipment
- Automatic packing machines
- Optical appliances
- Semiconductor industry
| Ā Model | Ā ULVAC UDP-6 (DA-170DA/B) |
| Ā Electrical requirements |
Ā 110V 50/60Hz or 220V 50/60Hz single phase Ā 400 watts, 5.6 amp rated current |
| Ā Pumping rate |
Ā 6 cfm |
| Ā Ultimate vacuum level |
Ā 6 torr |
|
Ā Inlet/Outlet |
Ā KF25 flange |
| Ā Adjustable vac./gas ballast | Ā No |
|
Ā Unit/shipping dimensions (LxWxH) |
Ā 16 x 7 x 13" / 18 x 11 x 14.5" |
| Ā Noise level | Ā 68 dBA at Atmosphere pressure Ā 62 dBA at ultimate pressure |
| Ā Unit/shipping weight |
Ā 58 Lb / 63 Lb |
| Ā Working environment | Ā 32Ā°F to 104Ā°F (0Ā°C to 40Ā°C) |

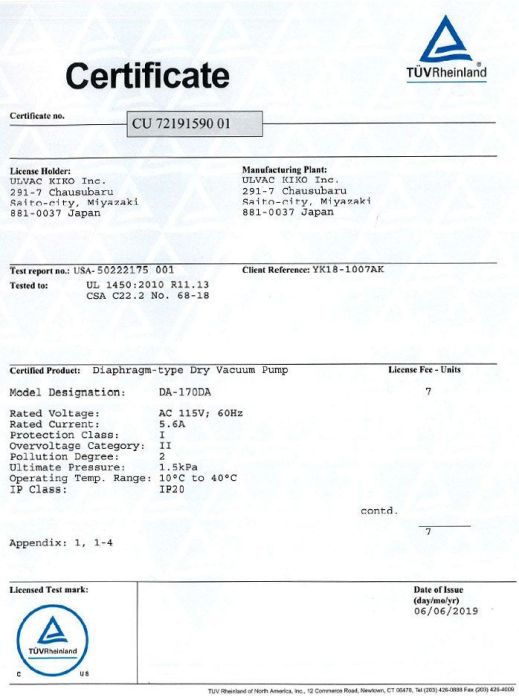

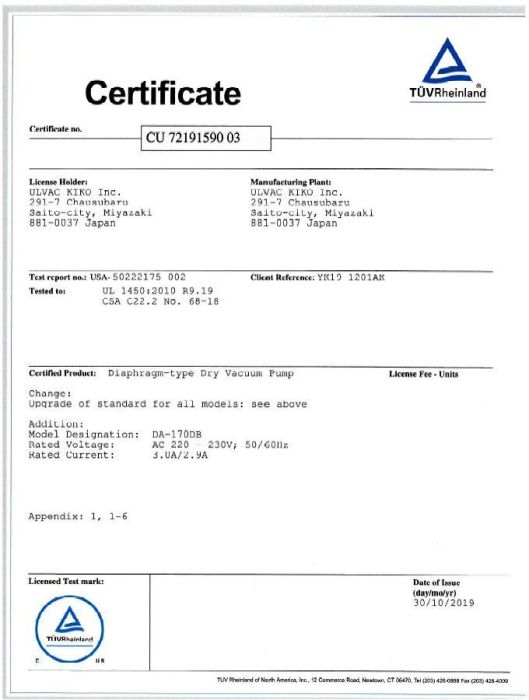

| Ā Compliance | Ā TUV certified to UL and CSA standards |
|
Ā Part description |
Ā Quantity |
Part image |
| Ā ULVAC UDP-6 6 cfm oil-free diaphragm pump |
1 pc |
|
| Ā |
1 pc |
|
| Ā |
Ā 1 pc |
|
|
Ā Power Cord with plug (may be hardwired to unit or with a detachable plug) |
1 pc | |
| Ā User's manualĀ |
1 pc |
