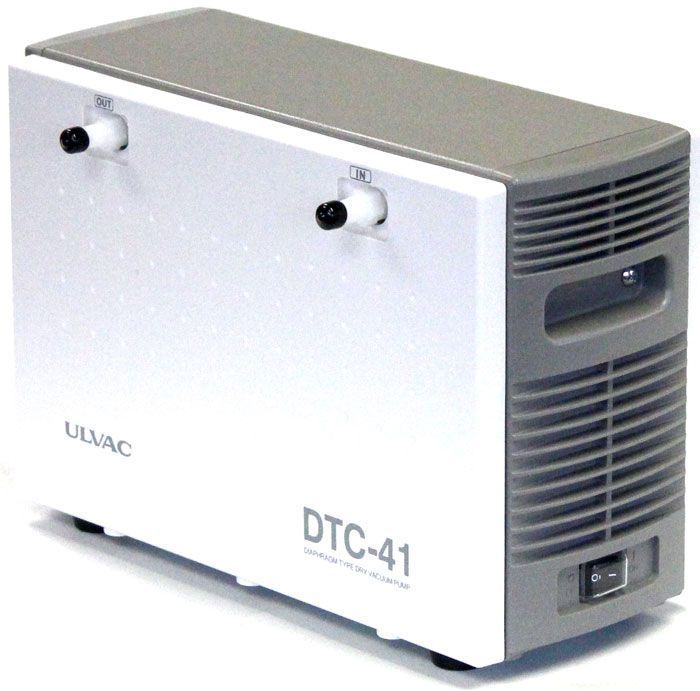

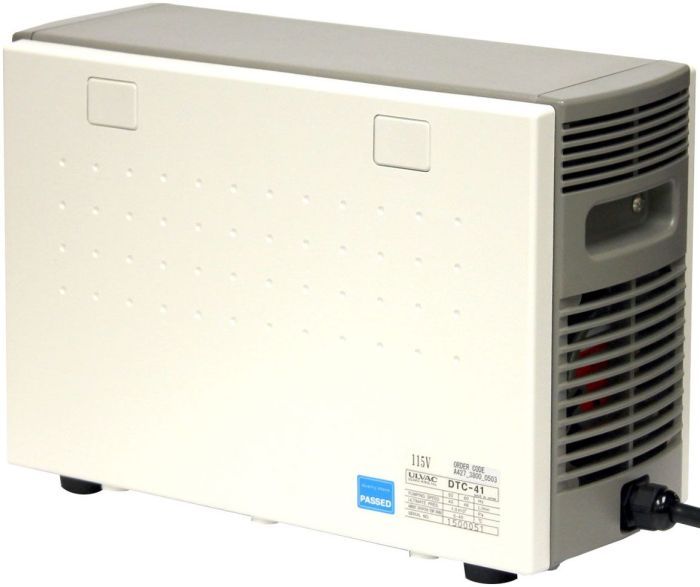

Across International ULVAC DTC-41 230V 1.6 cfm 2-Stage Chemical-Duty Diaphragm Pump TUV

Power Lab Supply 2SKU: DTC-41-UL-230
No reviews

Title: Please Select
Price:
Sale price$1,910.40 USD
Description

230V

Manufactured and imported directly from Japan, ULVAC DTC series diaphragm pumps feature integral forced-air cooling. They have two-stage PTFE diaphragms that are ideal for pumping corrosive gases and organic solvents. These pumps are oil-free, portable, and chemical-resistant, which means less maintenance and no more frequent and costly oil change, or cross contamination.

Ai is now the official dealer of ULVAC vacuum pumps. These pumps are made in Japan with one year warranty and technical support from ULVAC.

Features:

  • TUV certified to UL and CSA standards
  • Only PTFE components are exposed to vacuum, ideal for pumping corrosive gases and organic solvents
  • Integral forced-air cooling
  • Very compact and portable
  • Designed to back most hybrid turbo pumps

Applications:

  • Rotary evaporator
  • Evaporating system
  • Vacuum concentrator
  • Vacuum filtration
  • Vacuum drying systems
  • Medical/pharmaceutical equipments
  • Centrifuge
  • Laser-gas circulation

Free three feet ($19.99 value) included.








History of ULVAC





Specifications
Specifications



 Model  ULVAC DTC-41
 Part number  1042840
 Electrical requirements
 115V 60Hz or 230V 50/60Hz, single phase 0.13HP, 100 watts
 Full load current  1.1 amps

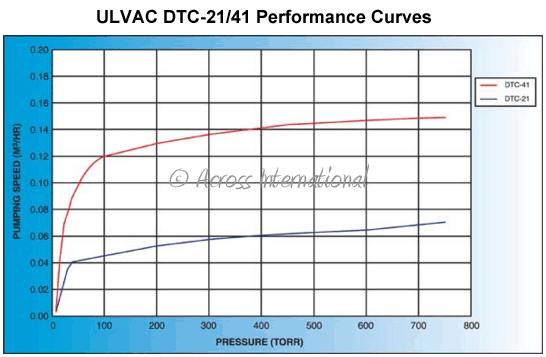

 Pumping rate
 1.62 cfm (6 minutes to pump down a 0.9 cu ft oven)
 Gasket material  All-PTFE
 Ultimate vacuum level
 7.5 torr / 10 mbar
 Inlet/Outlet
 3/8" hose barb
 Adjustable vac./gas ballast  No

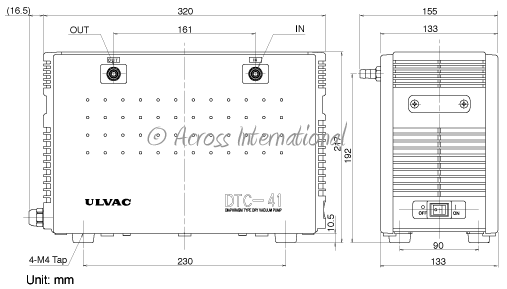

 Pump dimensions (LxWxH)
 13 x 5.5 x 8.5 inches
 Shipping dimensions (LxWxH)
 15 x 9 x 10 inches
 Pump weight
 23 Lb
 Shipping weight
 26 Lb
 Noise  53 dB(A)
 Working environment  32°F to 104°F (0°C to 40°C)

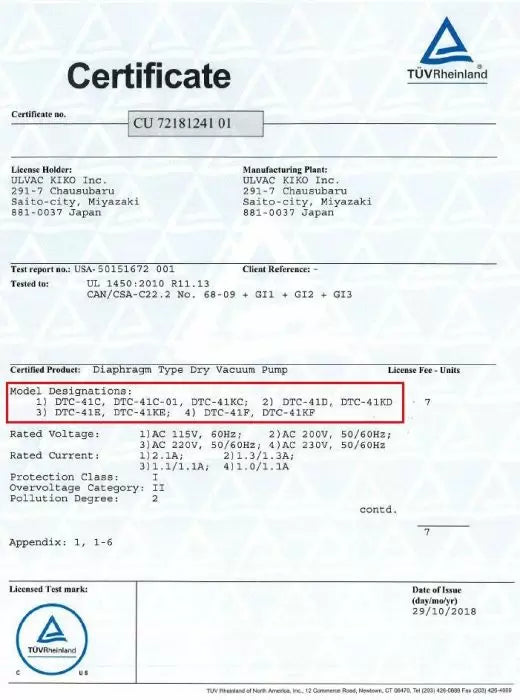

 Compliance  TUV certified to UL and CSA standards
Standard Packages
Standard package



 Part description

 Quantity

Part image

 ULVAC DTC-41 1.6 cfm full chemical-resistant oil-free diaphragm pump
1 pc

  (3 ft)
1 pc

 Power Cord with plug (may be hardwired to unit or with a detachable plug)
1 pc

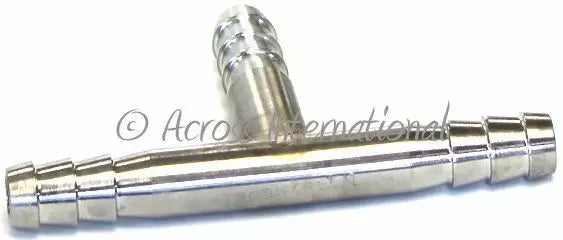

 Threaded Hose Barb (ID: 6mm OD: 9mm) with O-Ring (CS: 2.5 mm ID: 10 mm) (May be Installed on the unit) 4 pc

 User's manual
1 pc
