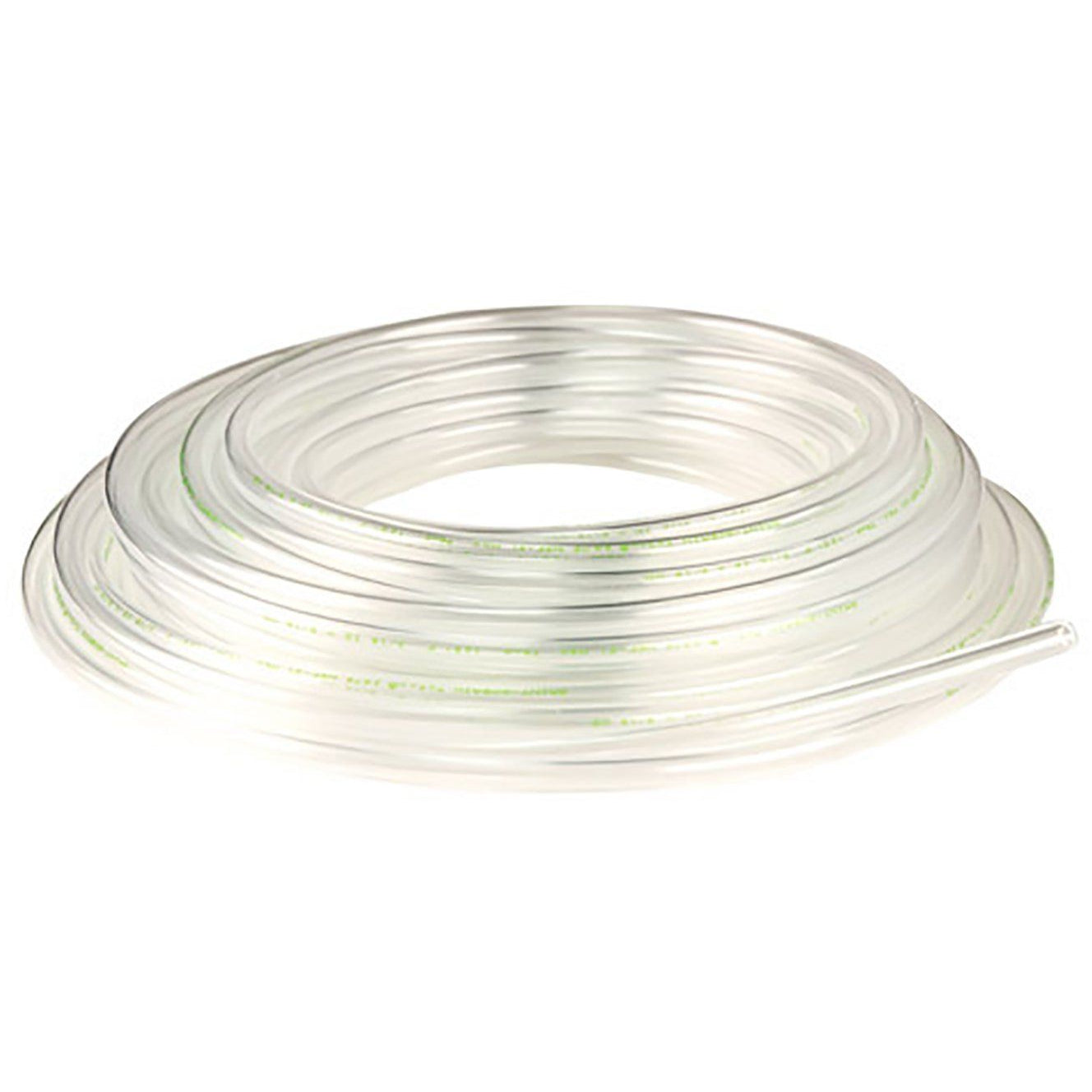

1/4" Tygon 2475 Smooth Bore High Purity PVC Tubing
Formulation 2475 Tygon tubing is the ultimate in performance PVC tubing this tubing is free of plasticizers, made of FDA listed materials, rated for vacuum, and has a minimum temperature range of -90°F all the way up to 120°F. This tubing is meant for sensitive transfer fluids, pharmaceutical solutions, biotechnological applications because of its high performance and smooth bore. Formulation 2475 also resistance damage from aggressive chemical cleaners and sanitizers and contains no plasticizers which could contaminate the transferred fluids. The smooth non-wetting inner bore prevents the build-up of particulates and limits absorption and adsorption to further preserve fluid purity and integrity. When burned for disposal this tubing will not release any hazardous byproducts such as chlorine and will only release carbon dioxide and water for a less toxic means of disposal it can also be sterilized with ethylene oxide (ETO), chemicals, or radiation. The tubing has a working temperature of -90 to 120°F and a durometer of 70a and a pressure rating of 30 psi at 72F. this tubing meets U.S. Pharmacopoeia (USP) Class VI criteria for medical grade plastic materials and U.S. Food and Drug Administration (FDA) 21 CFR 177.1520 criteria for food contact for quality assurance.
Key Features:
- Plasticizer-free plastic tubing for transferring fluids in medical, pharmaceutical, and biotechnological applications
- Clear Tygon formulation 2475 plastic for visually monitoring transfer of fluids
- Smooth bore to allow full drainage and prevent absorption and particulate build-up for preserving fluid integrity
- Working temperature range of -90 to 120°F and durometer (hardness) of 70A
- Meets USP Class VI and FDA CFR21 177.1520 standards for quality assurance
- Vacuum Rated to 29inHG
Specifications | |
ID | 1/4" |
OD | 3/8" |
Wall Thickness | 1/16" |
Temperature Rating | -90° to 120°F |
Vacuum Rating | 29 in. of HG @ 72°F |
Durometer | 70A |
Hardness Rating | Soft |
Flexibility | Very Flexible |
Bend Radius | 3/4" |
Maximum Pressure | 30psi @ 72°F |
Compatible Tube Fittings | Barbed |
Formulation | 2475 |
Standards |
Meets USP Class VI FDA CFR21 177.1520 standards for quality assurance |
Chemical Resistance: | |
Excellent |
Acetic Acid (10% in Water) Acetic Acid (30% in Water) Deionized Water Hydrochloric Acid (10% in Water) Hydrochloric Acid (30% in Water) Hydrogen Peroxide (10% in Water) Hydrogen Peroxide (30% in Water) Isopropyl Alcohol Methanol (Methyl Alcohol) Nitric Acid (Up to 50% Concentration) Phosphoric Acid (25% in Water) Phosphoric Acid (85% in Water) Sodium Hydroxide (Caustic Soda) (10% in Water) Sodium Hydroxide (Caustic Soda) (30% in Water) Sodium Hypochlorite (Bleach) Sulfuric Acid (10% in Water) Sulfuric Acid (30% in Water) |
Moderate |
Acetone, Methyl Ethyl Ketone (MEK) Vegetable Oil |
Not Recommended | Mineral Oil |
Note |
Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Safety Data | |
RoHS | Compliant |
