BVV Stainless Steel LP Tank - Includes Gas and Liquid Fill/Drain Ports

Power Lab Supply 1SKU: 30SSLP
No reviews

Stainless Steel LP Tank Size: 30# - Bare Tank
Price:
Sale price$470.25 USD
Description

Stainless Steel LP Tank - Includes Gas and Liquid Fill/Drain Ports

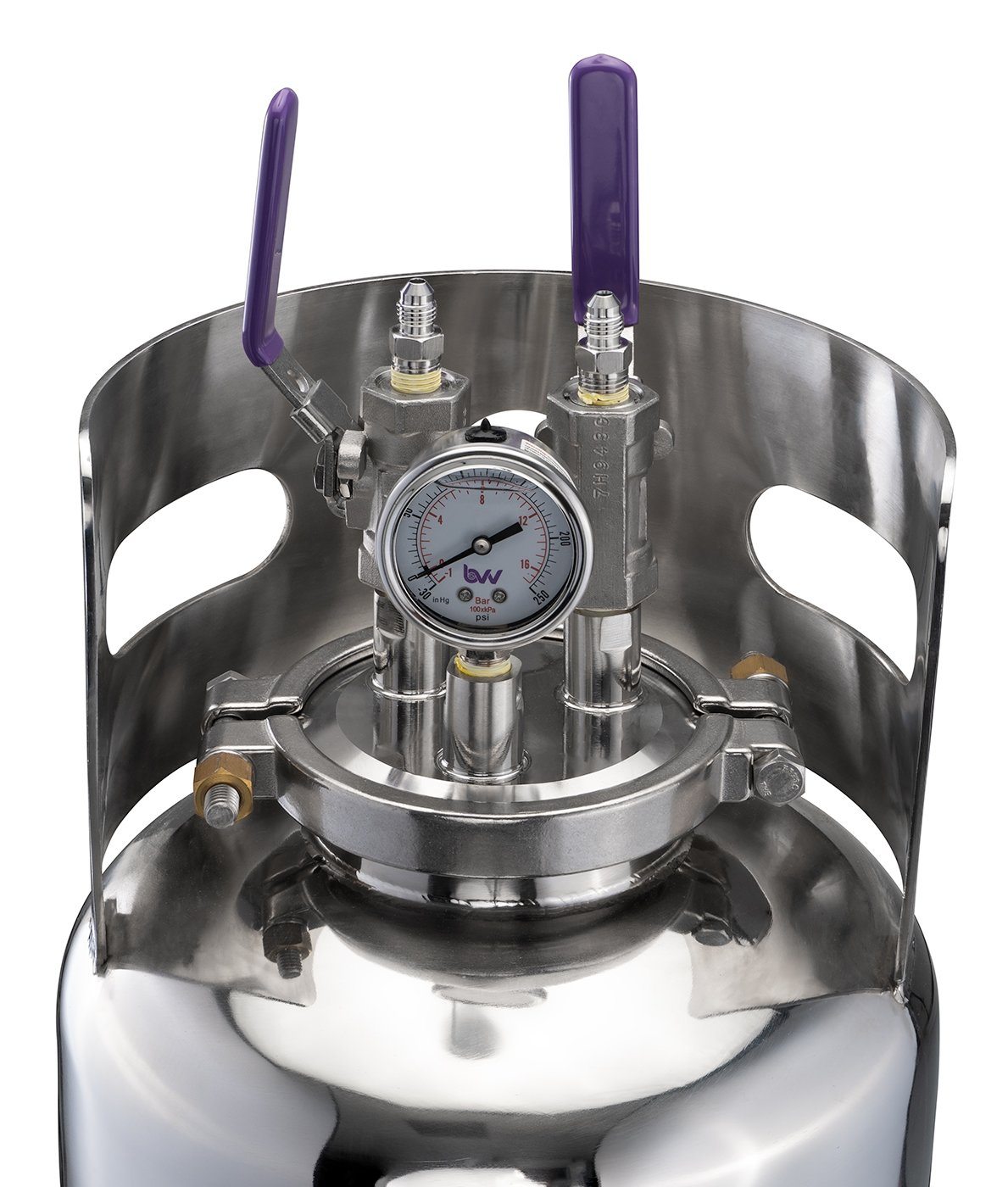

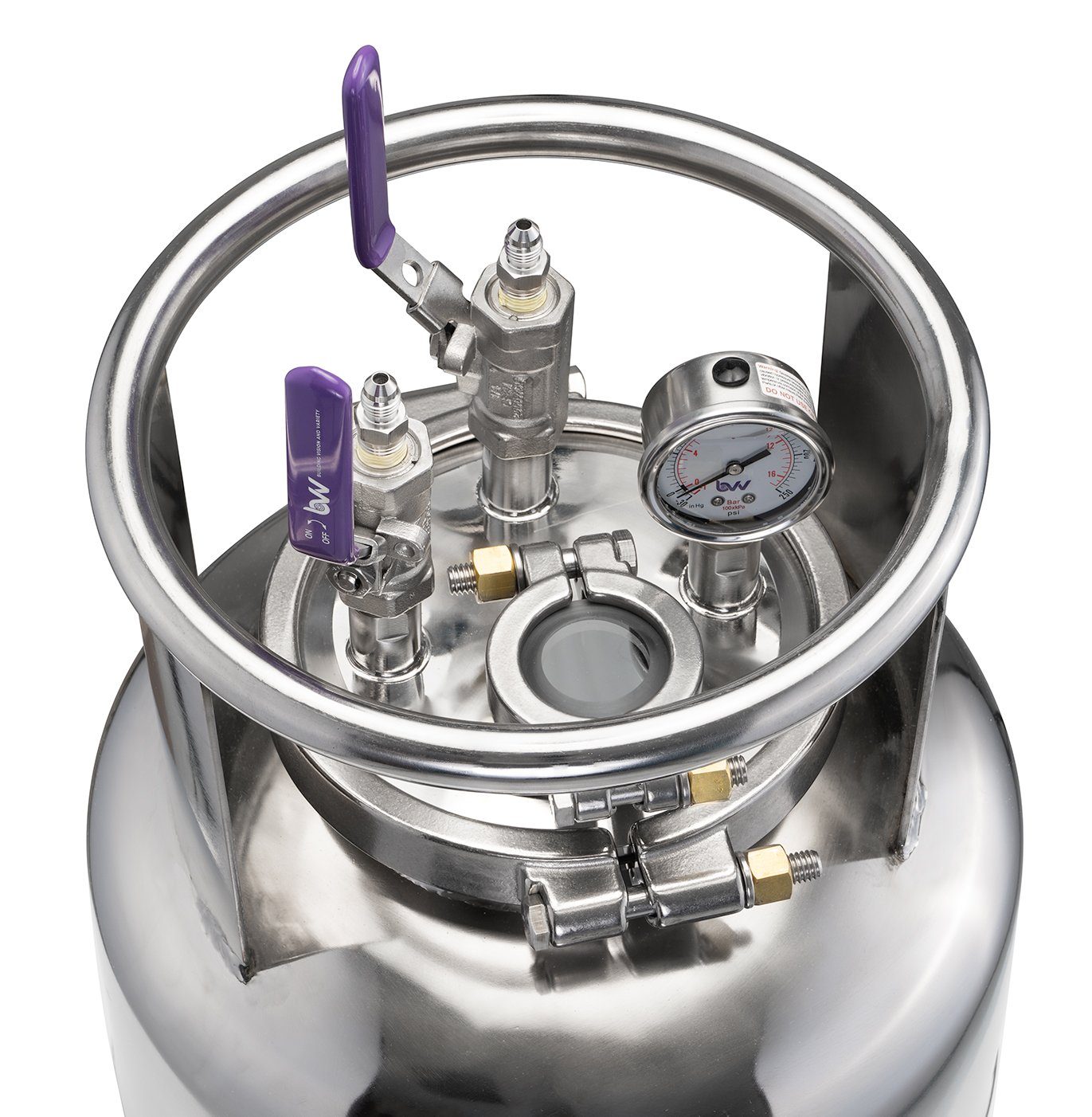

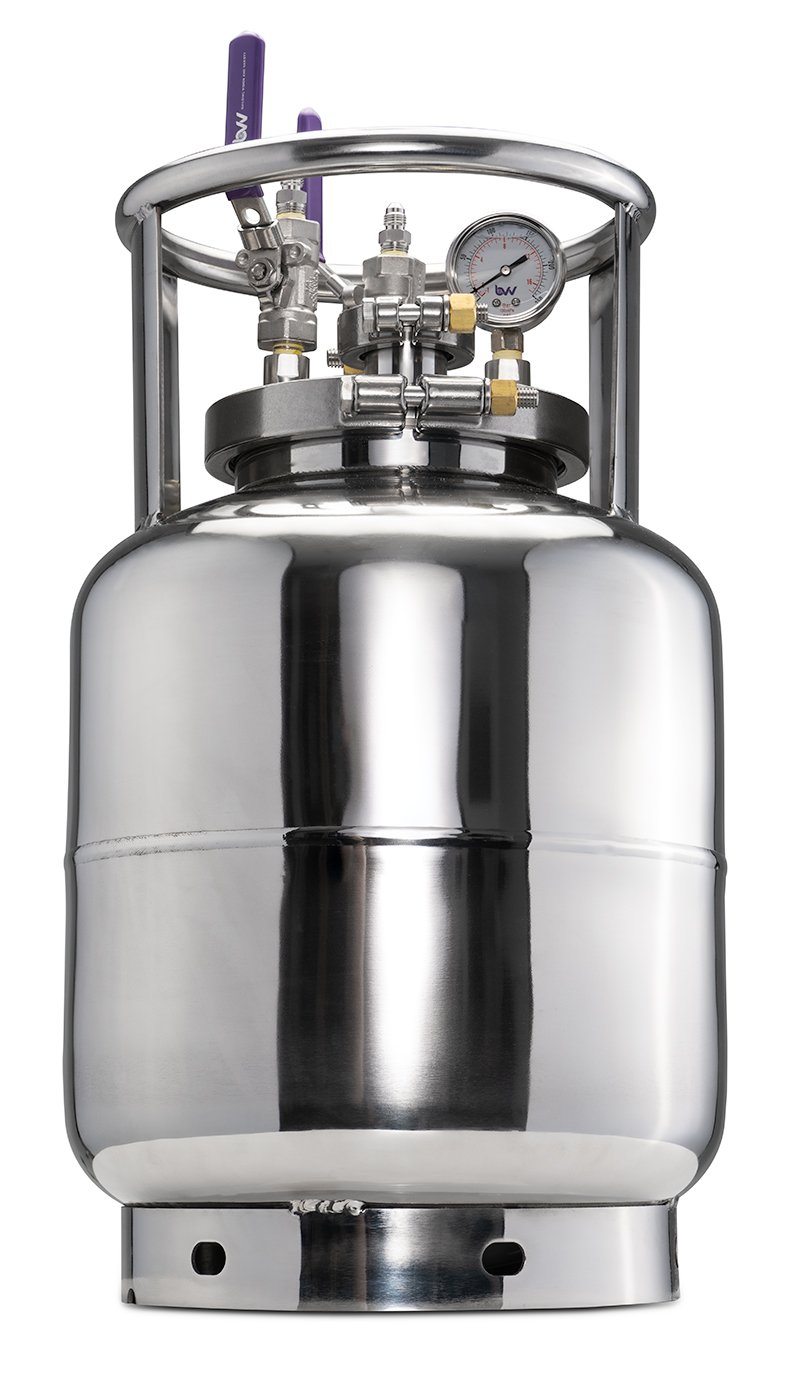

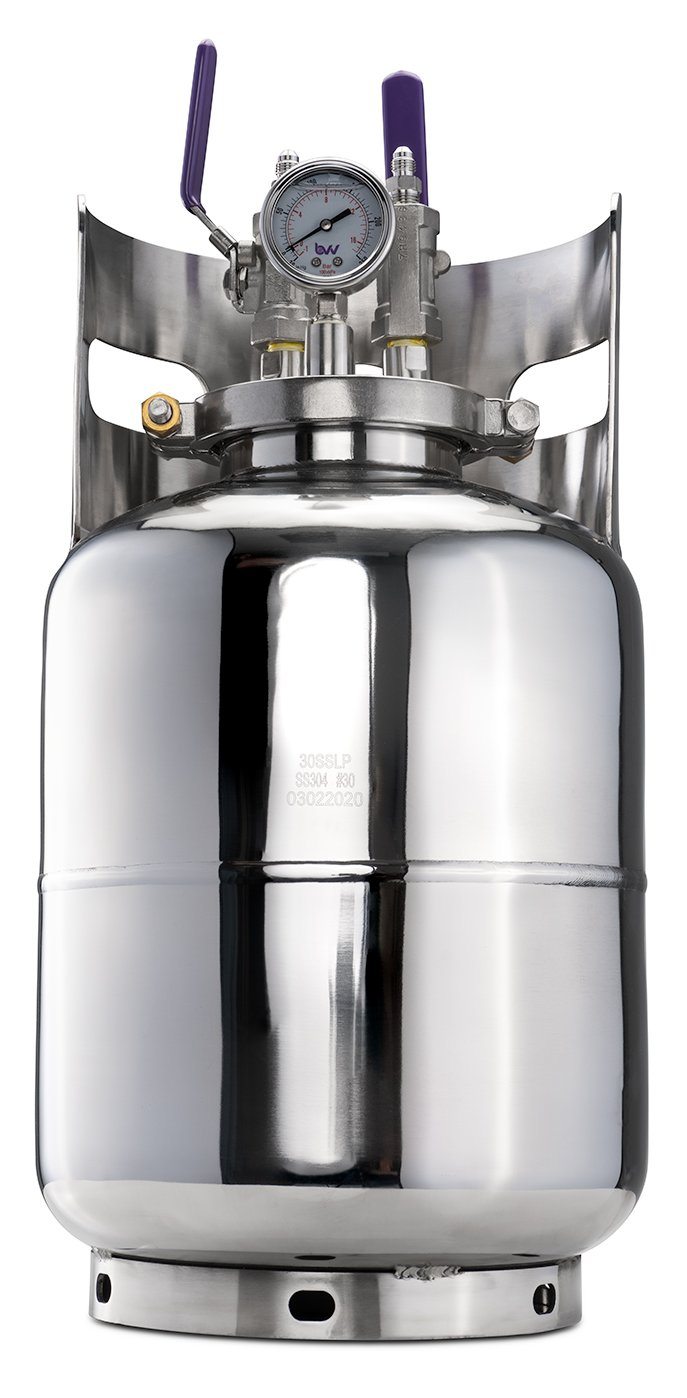

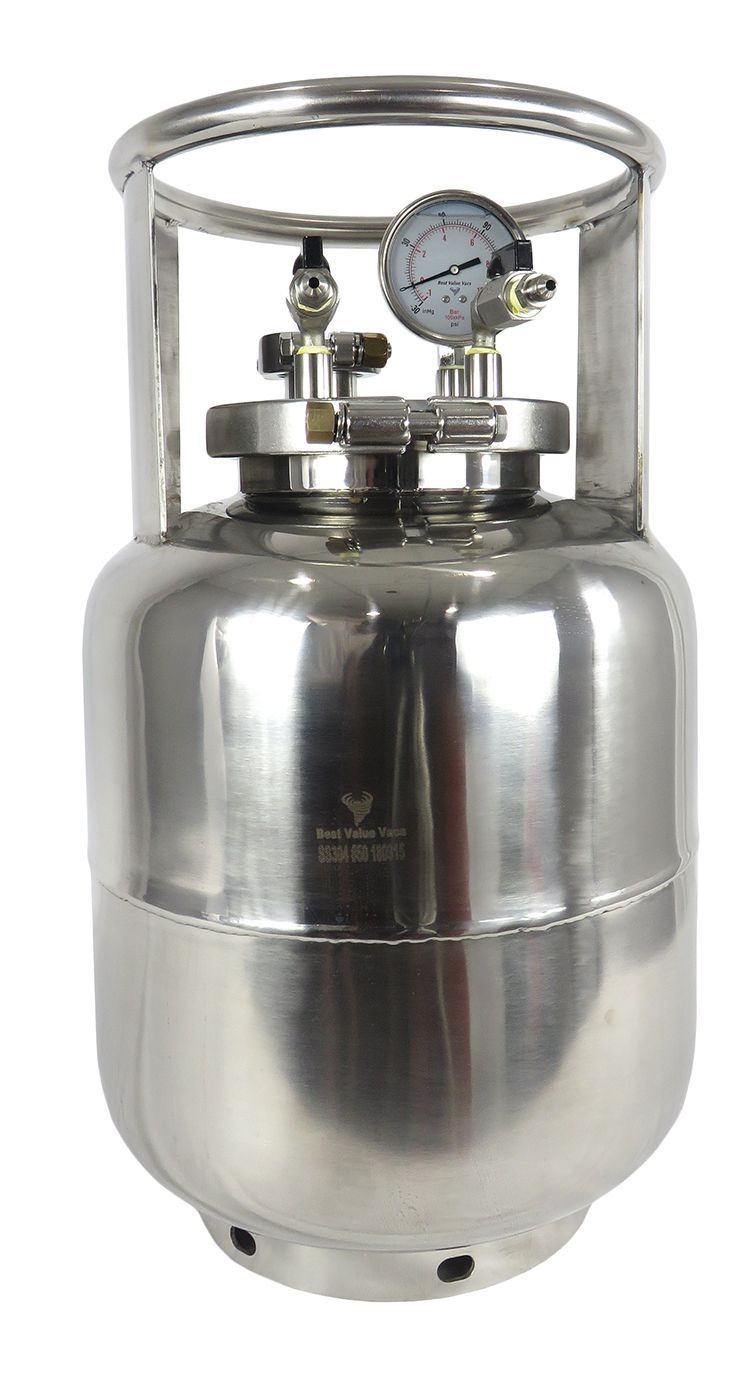

Stainless Steel LP tanks offer a superior way to decrease contamination of solvent and feature a tri-clamp lid with a high-pressure clamp. This allows easy access to the inside of the tank, making cleanout simple, unlike a normal carbon steel LP tanks. Tanks feature a safety collar to prevent damage to the valves, as well as a welded ring on the bottom to prevent damage to the tank body and allow better circulation of fluid around the entire tank. Lids come configured with 2 valves and compound gauge and polycarbonate sight glass on the larger #50 and #100 tanks. These tanks come with BVV 1/4" FNPT valves and 1/4" 37 Degree JIC Flares with one port being connected to a dip tube.


***Note: Tank comes empty and does not include solvent.


Butane Capacity Calculation:

  • All solvent tanks sold by Best Value Vacs have their capacity determined by this calculation and are based on industry-standard nomenclature of the water weight tank # system because the specific gravity of water is 1.000 and the DOT 80% fill guideline.



  • Example: 100# Tank = ~100lbs of water weight, Halfton Tank = 1000lbs of water weight.





    Specifications
    Tank # Water Weight in Lbs
    Specific Gravity of Butane 0.601
    80% Fill Guideline 0.800
    (Tank #) * (Specific Gravity of Butane) * ( 80% Fill Guildine)






    Sizes Available:

    • 30#
    • 50# - 1.5" Tri-Clamp ferrule with sight glass
    • 100# - 1.5" Tri-Clamp ferrule with sight glass



    Specifications
    Tank/Component Material 304 Stainless Steel
    Gasket Material BUNA-N
    Sight Glass Material (50# and 100# Only) Polycarbonate
    Standard 3A High Polish
    Connection Type(s) 1/4" (7/16-20) x 37° JIC
    Lid Connection Type(s): Tri-Clamp
    1/4"-20 FNPT
    Butane Capacity:
    30# 14.424
    50# 24.040
    100# 48.080





    ***Disclaimer:
    These are not DOT rated tanks and are not recommended for transportation when filled.
