Description

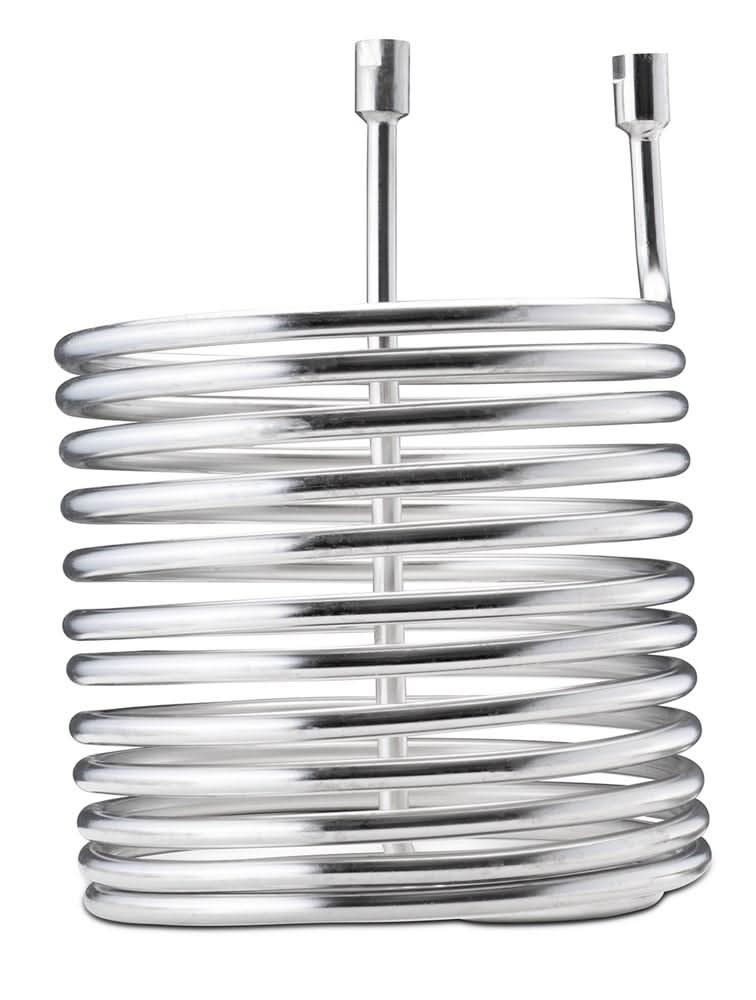

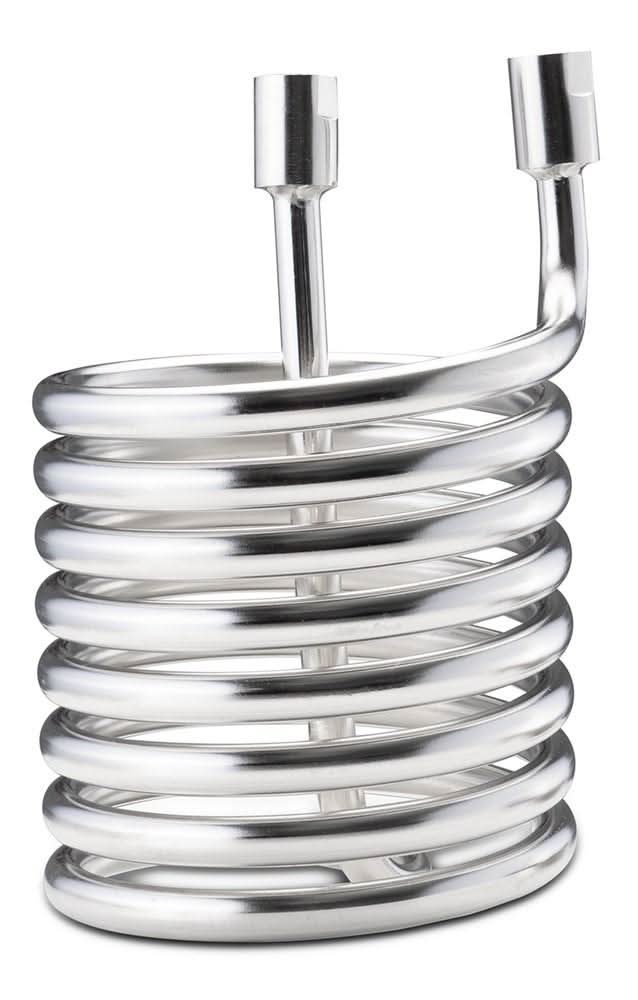

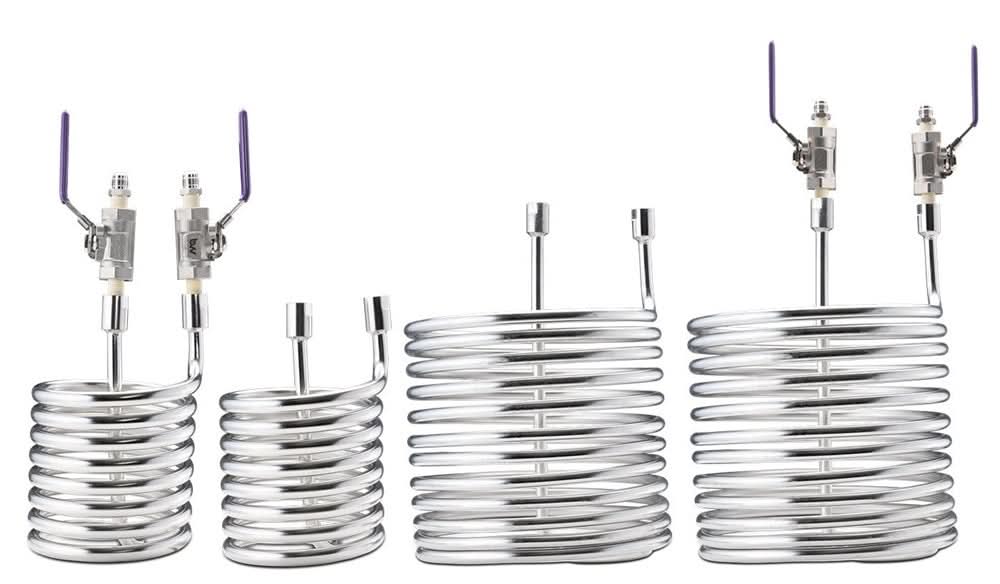

BVV SS304 Condensing Coils are used in solvent injection kits such as the one show in the video below. They are used to condense ethanol or other hydrocarbons to decrease run times and allow for a pre-chilling of the solvent to be used in the extraction processes.
For dry ice applications please make sure condensing coil is free of any water/moisture as it will freeze and restrict/block flow when submerged in dry ice. To clear the condensing coil blow pressurized air through one of the ports and drain it into a bucket
| Specifications | Small | Large | X-Large |
|---|---|---|---|
| Material | 304 Stainless Steel | ||
| Coil Diameter | 6" | 9.5" | 9.5" |
| Coil Height | 5.9" | 9.75" | 9.75" |
| Coil Length | 11' | 30' | 30' |
| ID | 1/4" | 1/4" | 1/2" |
| Bare Ports | 1/4" NPT | 1/2" NPT | |
| Available Connections: | |||
| Valves | |||
| Flares | |||
| Hose Barbs | |||
