Across International SonoMechanics 600W Ultrasonic Continuous Liquid Processor

Save $425.86 USD
Power Lab Supply 2SKU: LSP-600
No reviews

Price:
Sale price$20,867.14 USD Regular price$21,293.00 USD
Description

Ultrasonic homogenizers, the modern version of "mortar and pestle", they can disrupt tissues and cells through cavitation and ultrasonic waves. Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse. This creates shear and shock waves which tear apart cells and particles.

Ultrasonic Homogenizers are recommended for homogenization and lysis of laboratory samples that do not require traditional shredding or rotor-stator cutting techniques for processing. Small and large ultrasonic probes are used in a variety of sample volumes to be processed. A solid probe allows for less chance of sample loss and cross-contamination between samples.

Sonication is the act of applying sound energy to agitate particles in a sample, for various purposes. Ultrasonic frequencies (around 20 kHz) are usually used, leading to the process also being known as ultrasonication or ultra-sonication. In the laboratory, it is usually applied using an ultrasonic bath or an ultrasonic probe, colloquially known as a sonifier.

Sonication can be used for the production of nanoparticles, such as nanoemulsions, nanocrystals, liposomes and wax emulsions, as well as for wastewater purification, degassing, extraction of plant oil, extraction of anthocyanins and antioxidants, production of biofuels, crude oil desulphurization, cell disruption, polymer and epoxy processing, adhesive thinning, and many other processes. Sonication is also commonly used in nanotechnology for evenly dispersing nanoparticles in liquids.

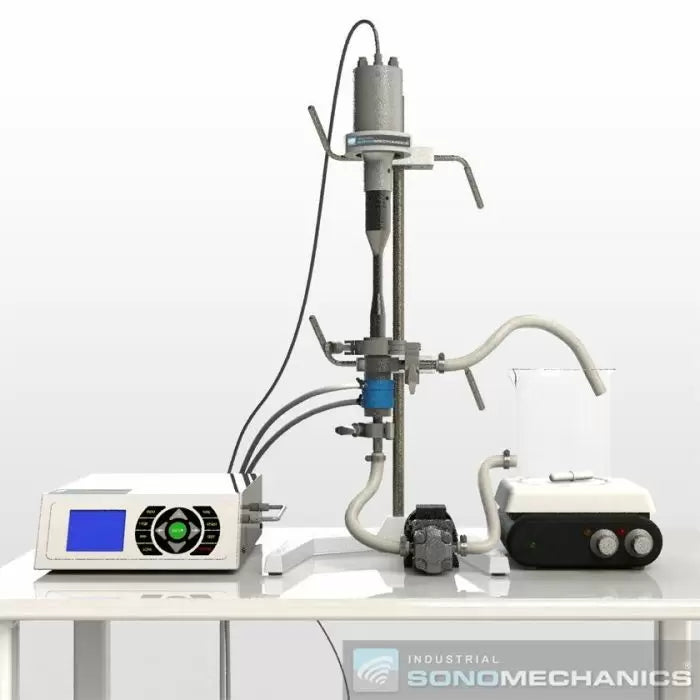

LSP-600 in Continuous Flow-Through Mode










The LSP-600 600 watts bench-scale ultrasonic liquid processor from Industrial SonoMechanics

Features

  • The LSP-600 ultrasonic liquid processor is most commonly supplied with a 600 W ultrasonic generator, air-cooled transducer, and full-wave Barbell Horn®. Optional items include a flow-through reactor chamber (flow cell), conventional horn, microtips and support stand.
  • The LSP-600 processor can be used in batch and flow-through configurations (see schematics on the left). Details are available under the SPECIFICATIONS tab.
  • The LSP-600 processor utilizes patented Barbell Horn® Ultrasonic Technology (BHUT), which makes it possible to generate extremely high ultrasonic amplitudes at any scale of operation. By upgrading to our larger BHUT-based units, the BSP-1200 or ISP-3000, any process optimized with the LSP-600 can be directly scaled-up to a pilot or industrial production environment, while maintaining the same processing conditions and reproducible results.
LSP-600: Disassembly & Assembly Procedures, Batch-Mode



Commercial Production of Water-Soluble botanical extract and flower extract by High-Intensity Ultrasound

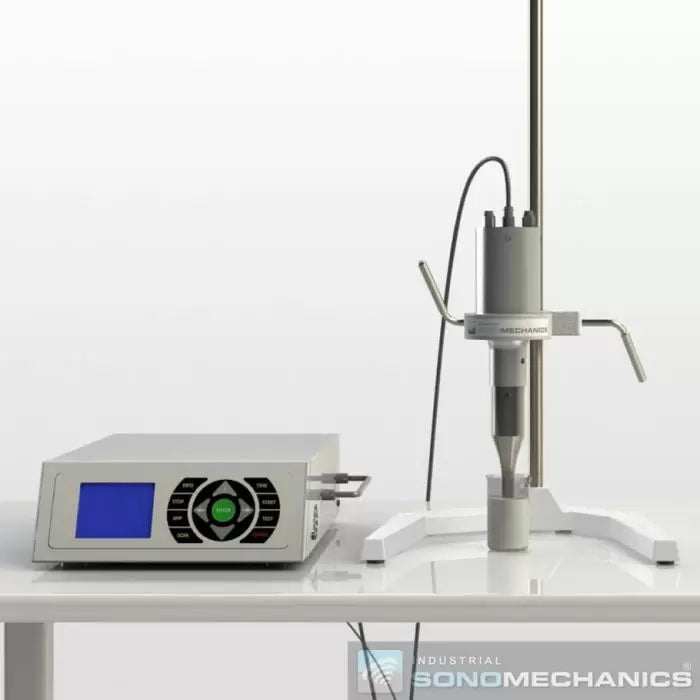

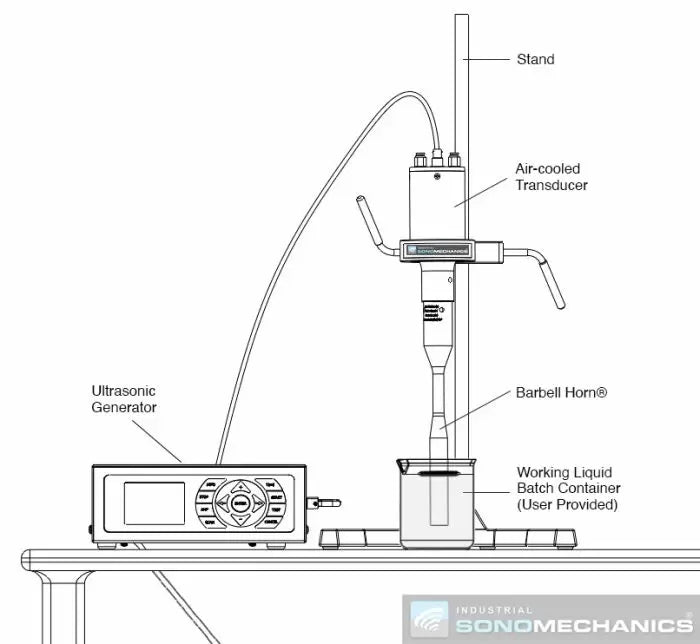

LSP-600 in Batch Mode











Model LSP-600
Electrical requirements
100V-120V (20A max.), 220V-240V (10A max.), 50/60Hz
Ultrasonic output 1000 V rms (max.), 20 (+/- 1) kHz, 600 W (max.)

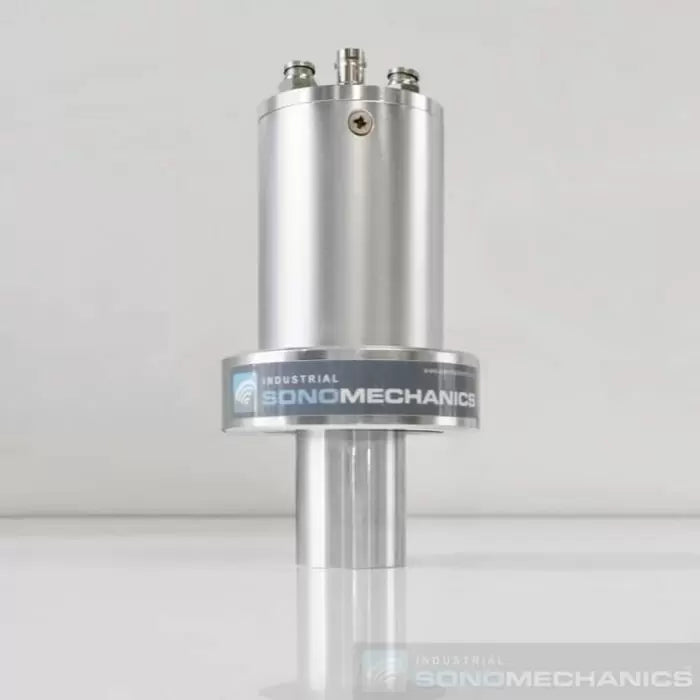

Air-cooled piezoelectric transducer
(ACT-22-LSP)
Output Characteristics: amplitude 22 microns (max.),
frequency 20 (+/- 1) kHz, power 600 W (max.)

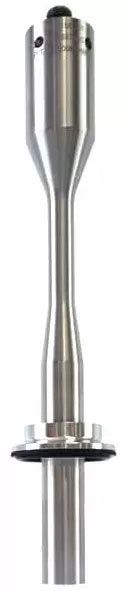

Full-wave Barbell Horn
(FBH, 21 mm tip diameter)
Output characteristics: amplitude 115 microns (max.),
frequency 20 (+/- 1) kHz, power 600 W (max.)
Materials of wetted parts
Reactor chamber 304 stainless steel. Food compatible.
Horns (FBH, CH, microtips) Grade 5 Titanium (Ti6Al4V). Food compatible.
Gaskets Buna-N or Teflon. Food compatible.
O-rings Buna-N. Food compatible.
Noise level
103 - 106 dBa at 2' away. Noise reducing earmuffs or sound enclosure required.
Capacity

15 ml - 100 ml with CH (batch mode)
100 ml - 500 ml with FBH (batch mode)
500 ml - 1 L with FBH + reactor chamber (flow-through mode).

Productivity rates Productivity rates are highly dependent on the nature of each process and range
from about 200 mL/h for challenging tasks (e.g., top-down nanocrystallization of
active pharmaceutical compounds) to over 10 L/h for fast processes
(e.g., degassing, deagglomeration).
Optional accessories

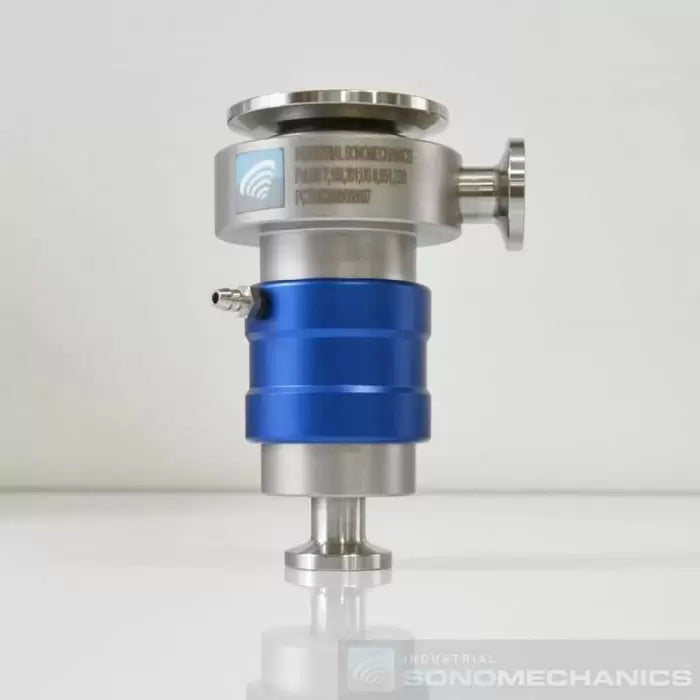

Flow-through reactor chamber (flow cell, 1/2" tri-clamp inlet and outlet, cooling jacket)

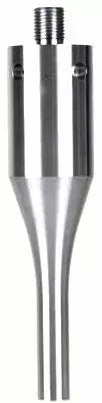

Conventional horn (CH, 12.7 mm tip diameter, amplitude 113 microns (max.))
Support stand with clamp holders
Noise reduction ear muffs
Warranty One year
Download ,
Reading ,



Removing Air Bubbles from High Viscosity Liquid

Ultrasonic Dispersion of Carbon Black in Water



Translucent Water in Oil Nanoemulsion Prepared by BSP-1200







Specifications
Specifications



 Model  LSP-600
 Electrical requirements
 100V-120V (20A max.), 220V-240V (10A max.), 50/60Hz
 Ultrasonic output  1000 V rms (max.), 20 (+/- 1) kHz, 600 W (max.)
 Air-cooled piezoelectric transducer
  (ACT-22-LSP)
 Output Characteristics: amplitude — 22 microns (max.),
  frequency  20 (+/- 1) kHz, power — 600 W (max.)
 Full-wave Barbell Horn®
  (FBH, 21 mm tip diameter)
 Output characteristics: amplitude — 115 microns (max.),
  frequency — 20 (+/- 1) kHz, power — 600 W (max.)
 Materials of wetted parts
 Reactor chamber — 304 stainless steel. Food compatible.
 Horns (FBH, CH, microtips) — Grade 5 Titanium (Ti6Al4V). Food compatible.
 Gaskets — Buna-N or Teflon. Food compatible.
 O-rings — Buna-N. Food compatible.
 Noise level
 103 - 106 dBa at 2' away. Noise reducing earmuffs or sound enclosure required.
 Capacity

 15 ml - 100 ml — with CH (batch mode)
 100 ml - 500 ml — with FBH (batch mode)
 500 ml - 1 L — with FBH + reactor chamber (flow-through mode).

 Productivity rates  Productivity rates are highly dependent on the nature of each process and range
  from about 200 mL/h for challenging tasks (e.g., top-down nanocrystallization of
  active pharmaceutical compounds) to over 10 L/h for fast processes
  (e.g., degassing, deagglomeration).
 Optional accessories
 Flow-through reactor chamber (flow cell, 1/2" tri-clamp inlet and outlet, cooling jacket)
 Conventional horn (CH, 12.7 mm tip diameter, amplitude — 113 microns (max.))
 Support stand with clamp holders
 Noise reduction ear muffs
 Warranty  One year
 Download  ,
 Reading  ,

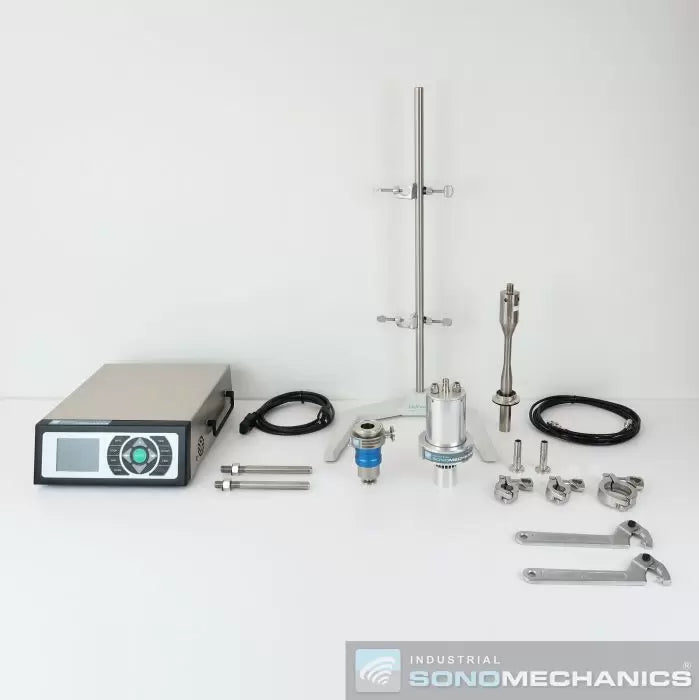

Standard Packages
Standard package



 Part description

 Quantity

Part image

 SonoMechanics LSP-600 system
1 set

 Chiller for reactor chamber 1 pc
 Peristaltic pump
1 pc

 Full-wave Barbell Horn, output tip diameter - 21mm
1 pc
  1 pc
