Description

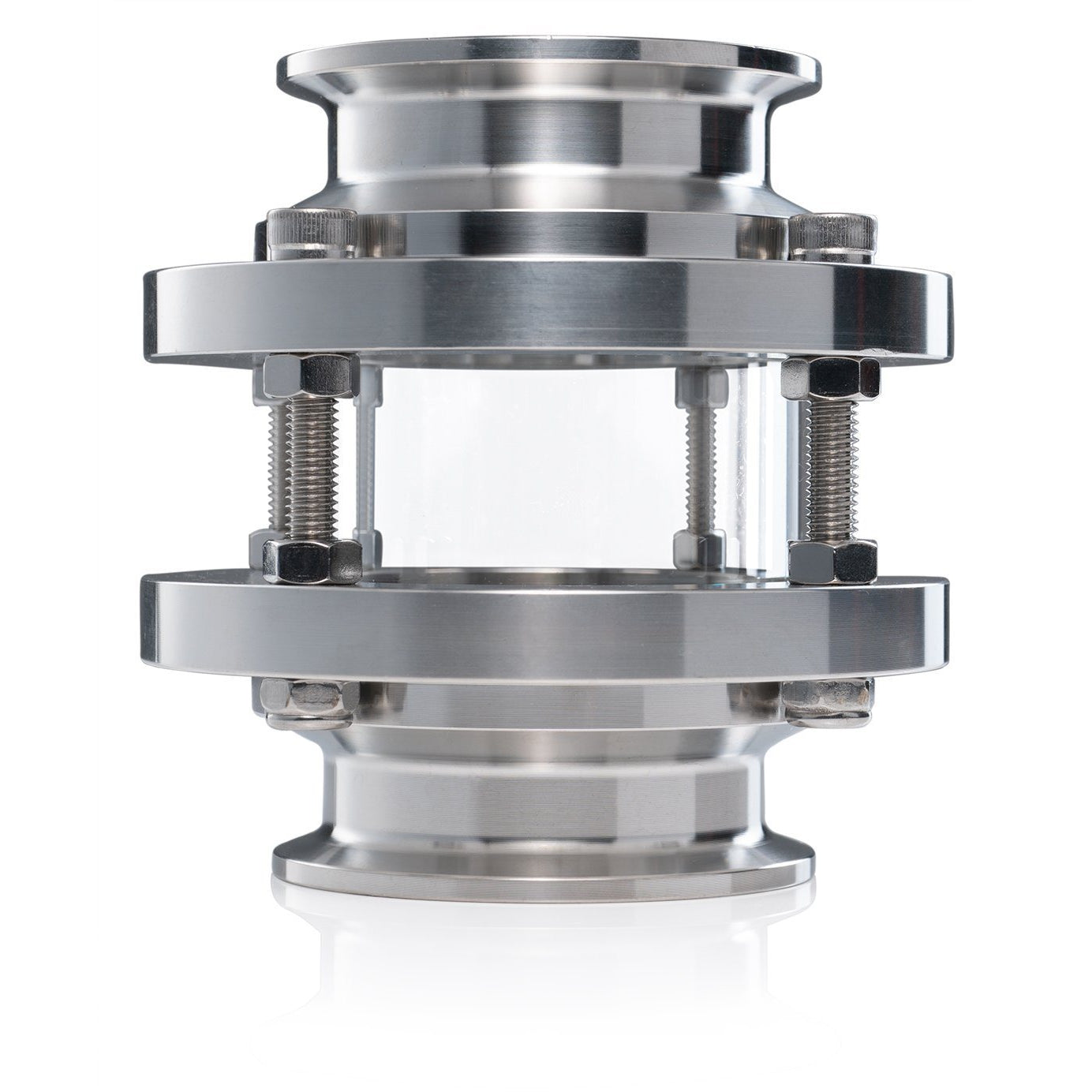

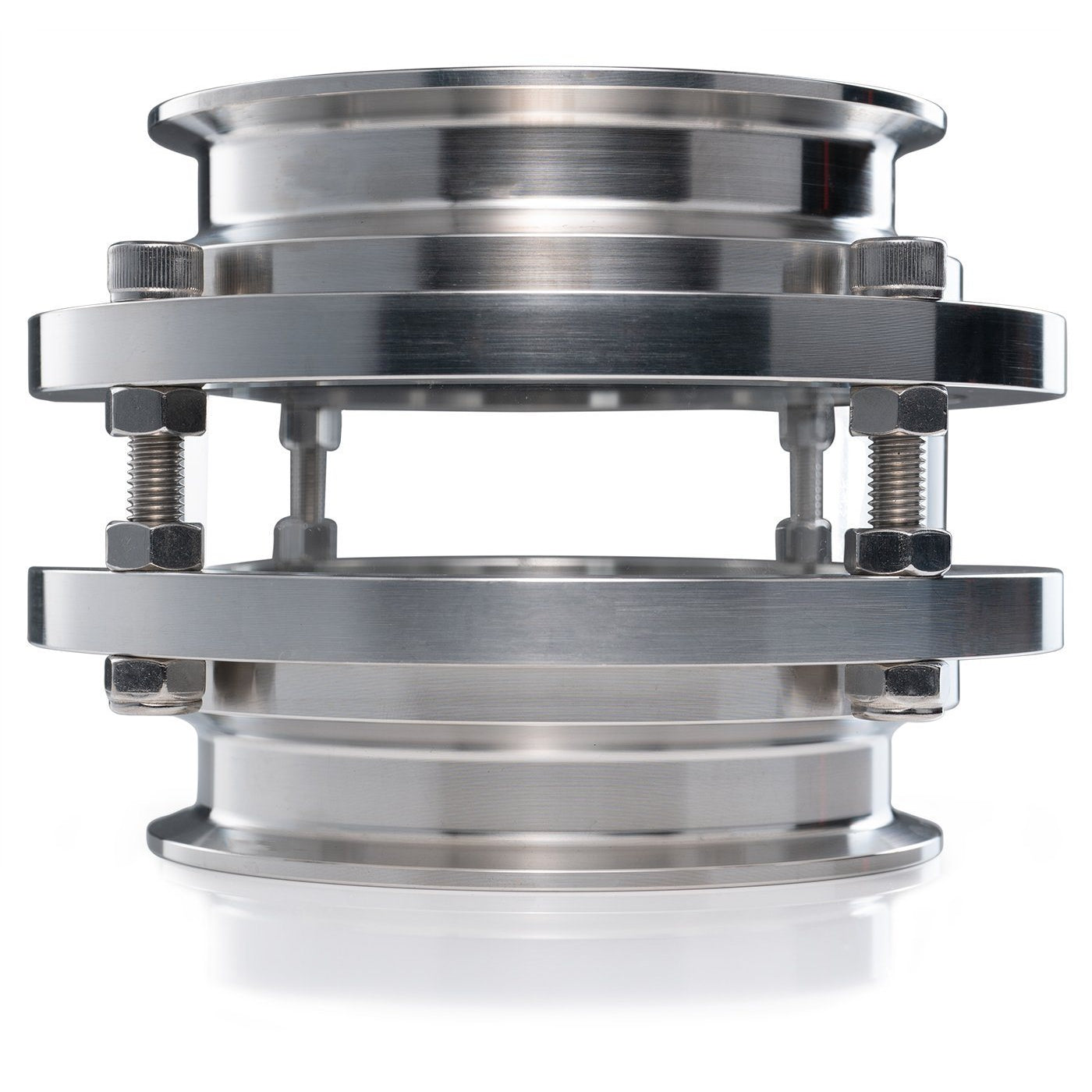

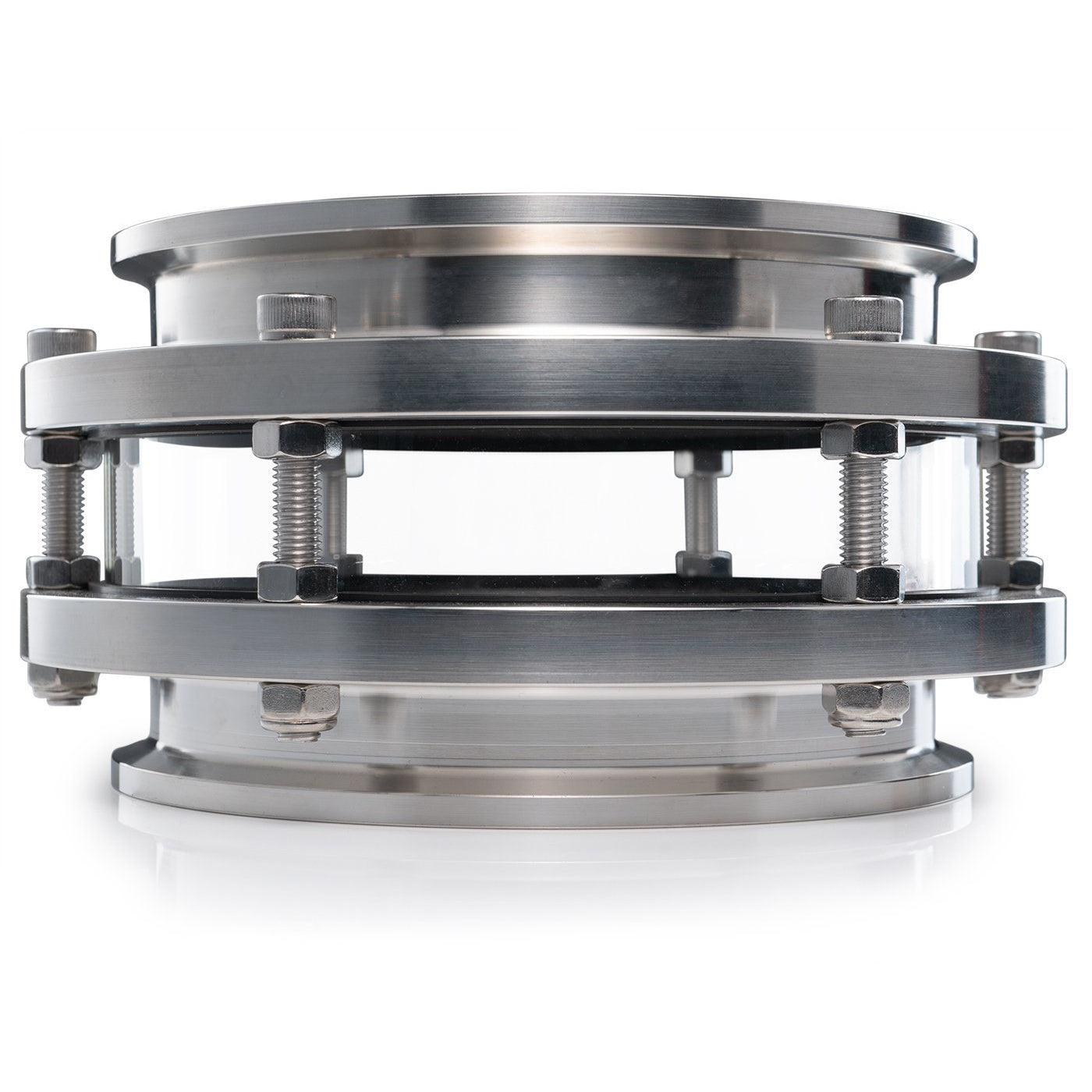

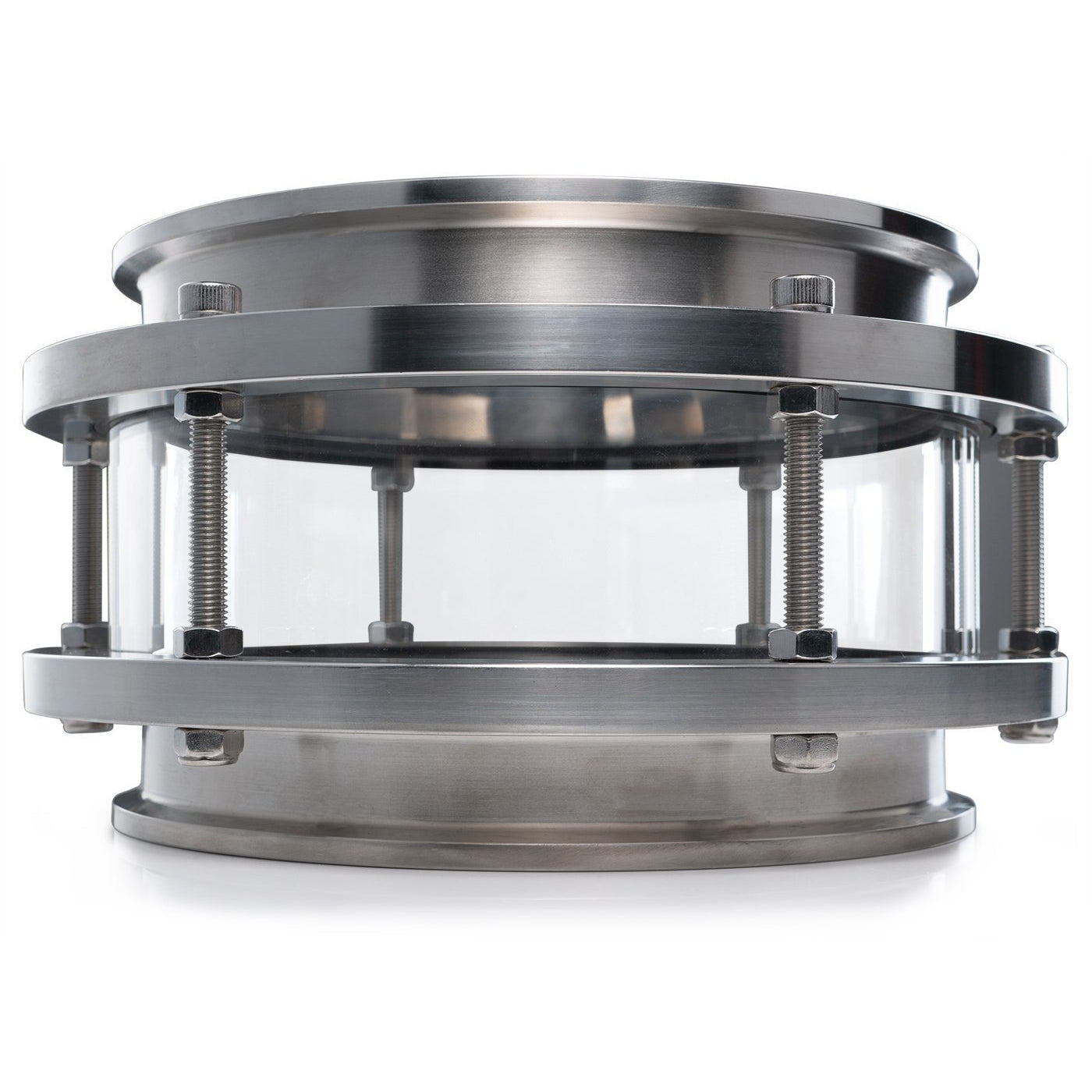

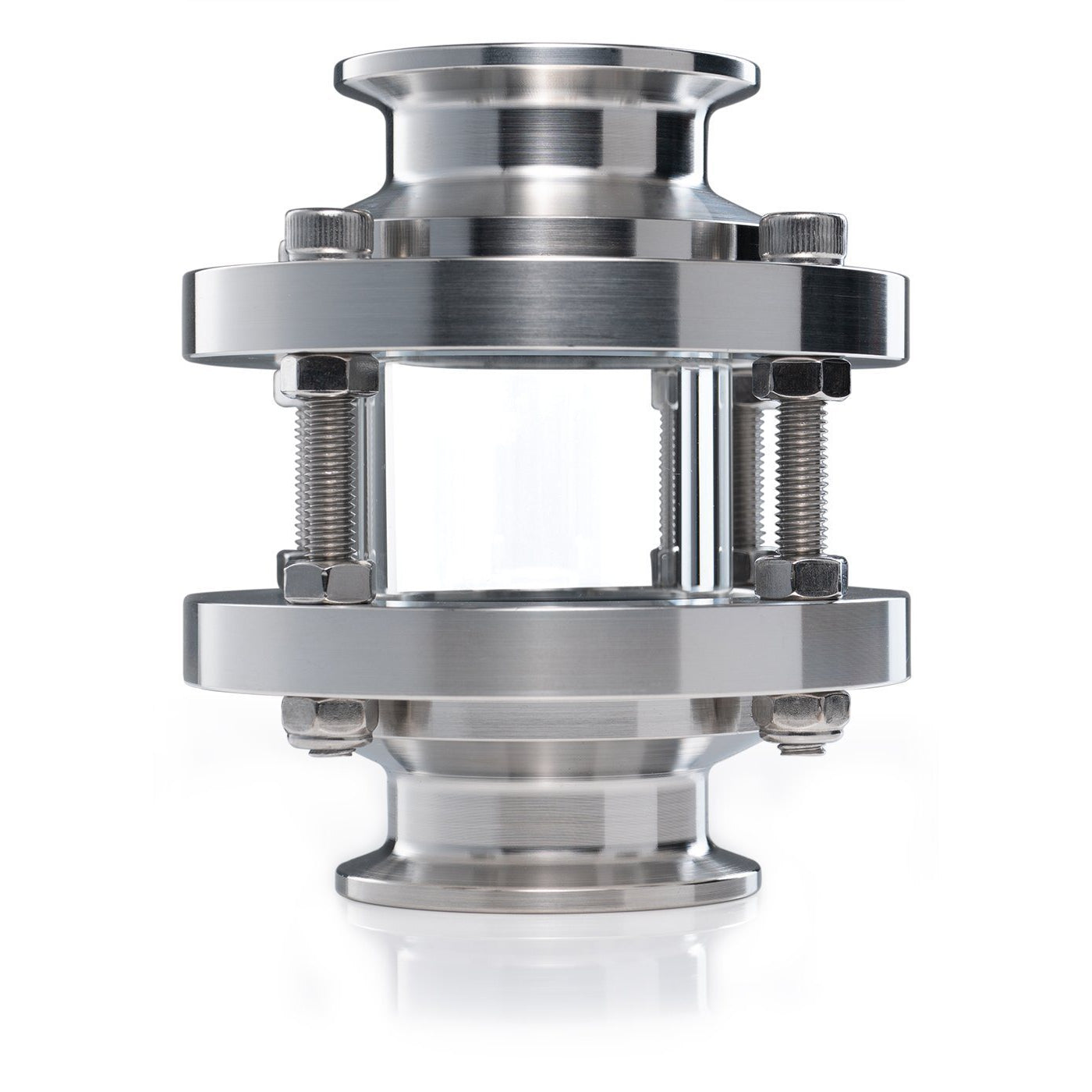

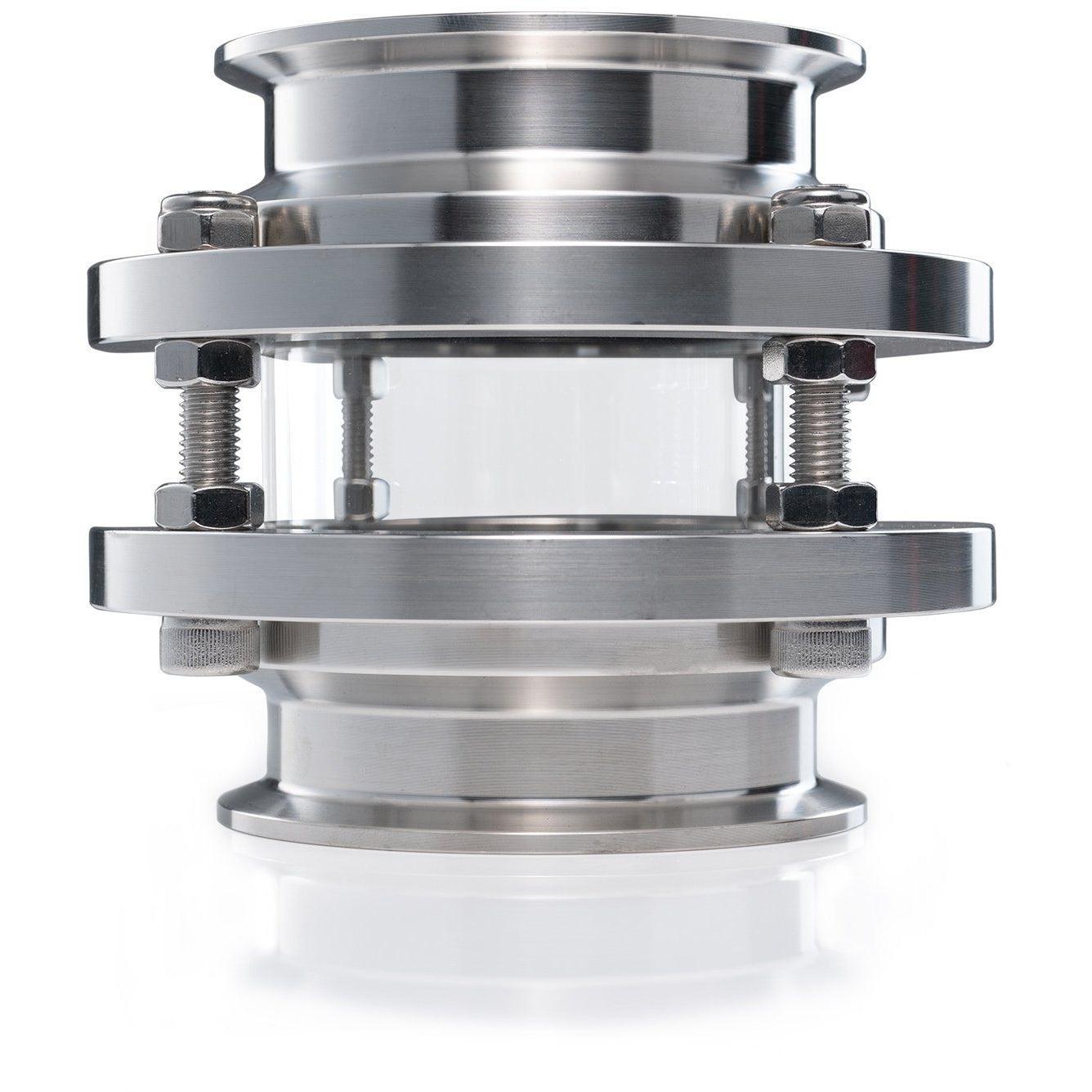

Short Sight Glass
These short sight glasses are a great additions closed-loop extraction system to view the liquefied solvent flowing through your system and see the color before the purging process is completed. The short sight glass also allows the user to add a viewing port to their system without adding a lot of additional height compared to a normal Tri-Clamp sight glass. Unlike many competitors, this sight glass is also nitrogen tested for leaks at 100 PSI before it is sent to the customer to ensure safe operation of their extraction system.
***Note: Does not include clamp or gasket.
Sizes Available:
- 1.5"
- 2"
- 3"
- 4"
- 6"
- 8"
Specifications:
- Sight Glass Material: 304 Stainless Steel
- Glass Material: Borosilicate
- Gasket Material: Viton
- Connection Type: Tri-Clamp x Tri-Clamp
Â
| Specifications | Diameter (Inches) | Height (Inches) | Weight (Lbs) |
|---|---|---|---|
| 1.5" | 3.25 | 3-3/4 | 1.81 |
| 2" | 4 | 3-3.4 | 2.7 |
| 3" | 5 | 4-3/8 | 4.13 |
| 4" | 6-1/2 | 4-1/2 | 6.8 |
| 6" | 8 | 4-1/8 | 8.09 |
| 8" | 10.5 | 5-5/8 | 15.12 |
| 10" | |||
| 12" |
