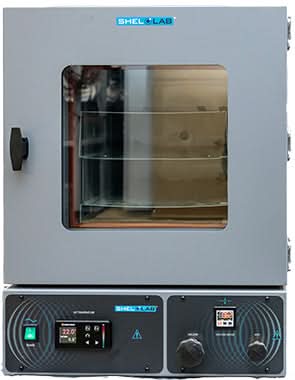

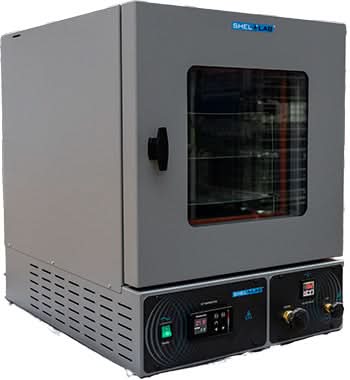

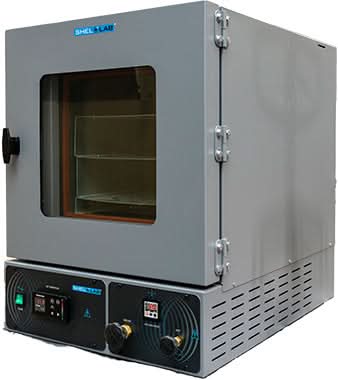

SHEL LAB SVAC2 Vacuum Oven 47.2L
Our revamped SHEL LAB SVAC vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials.
Â
Vacuum ovens prevent residue accumulation on products and use lower temperatures than typical convection ovens. Your products are processed with minimal impact and maximum throughput.Â
Â

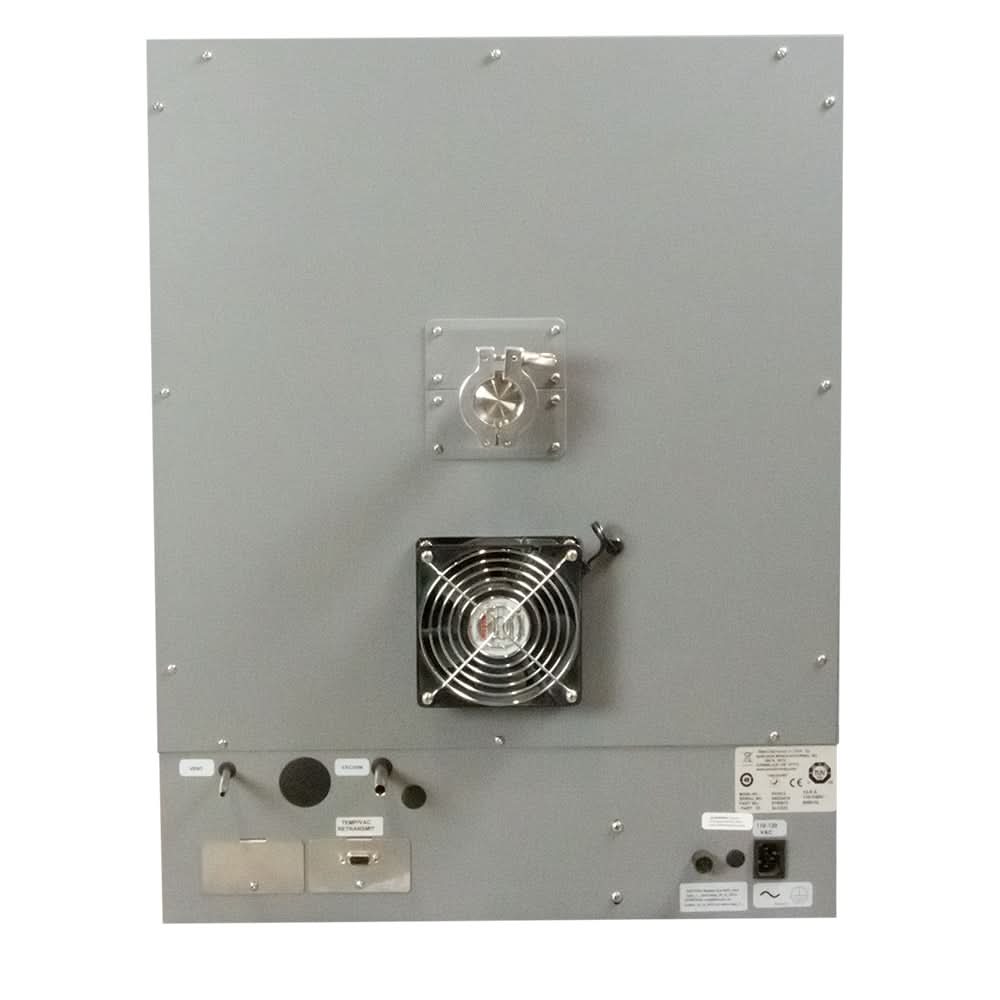

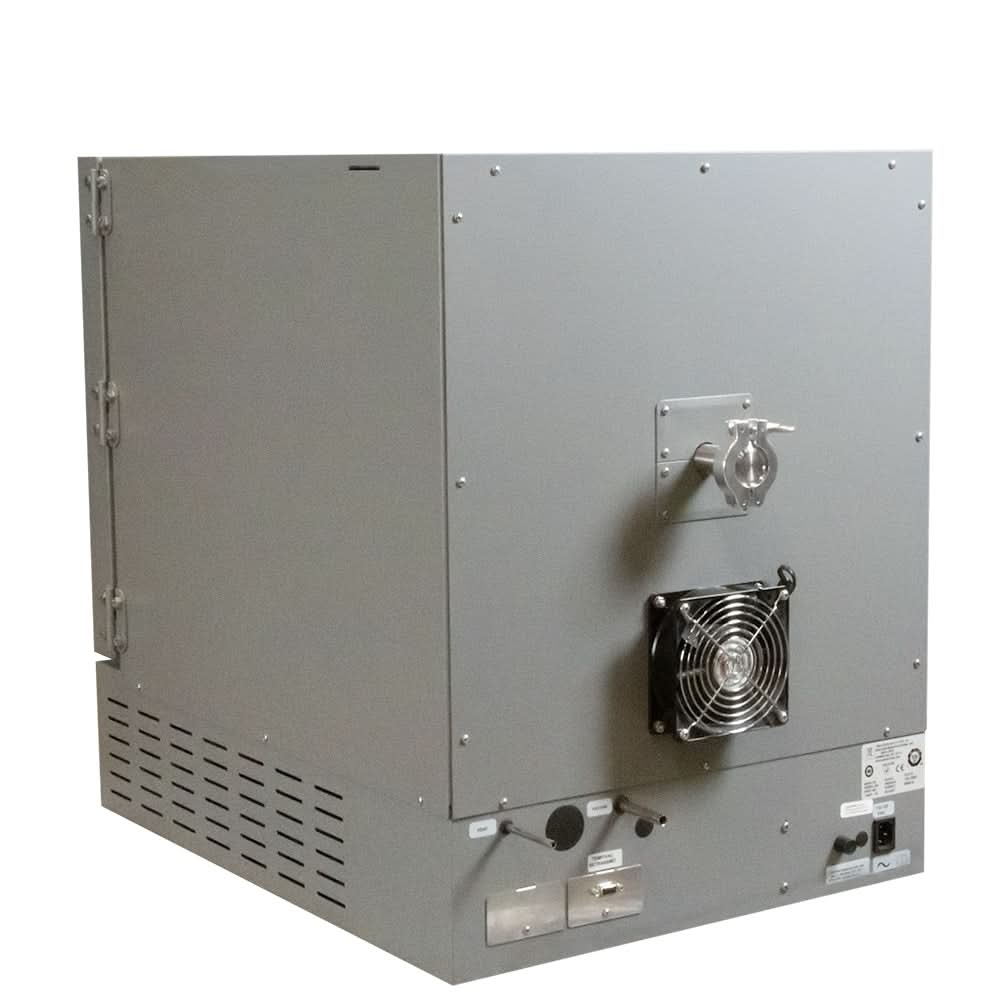

SHEL LAB vacuum ovens have stainless steel interiors and provide exceptional durability and stability. Available in 4 sizes, SVAC Vacuum Ovens support a diverse array of applications.To achieve required vacuum levels, users can choose from a 3/8-inch orifice or a KF-25 fitting to withstand heavy use and minimize draw-down time.
Â

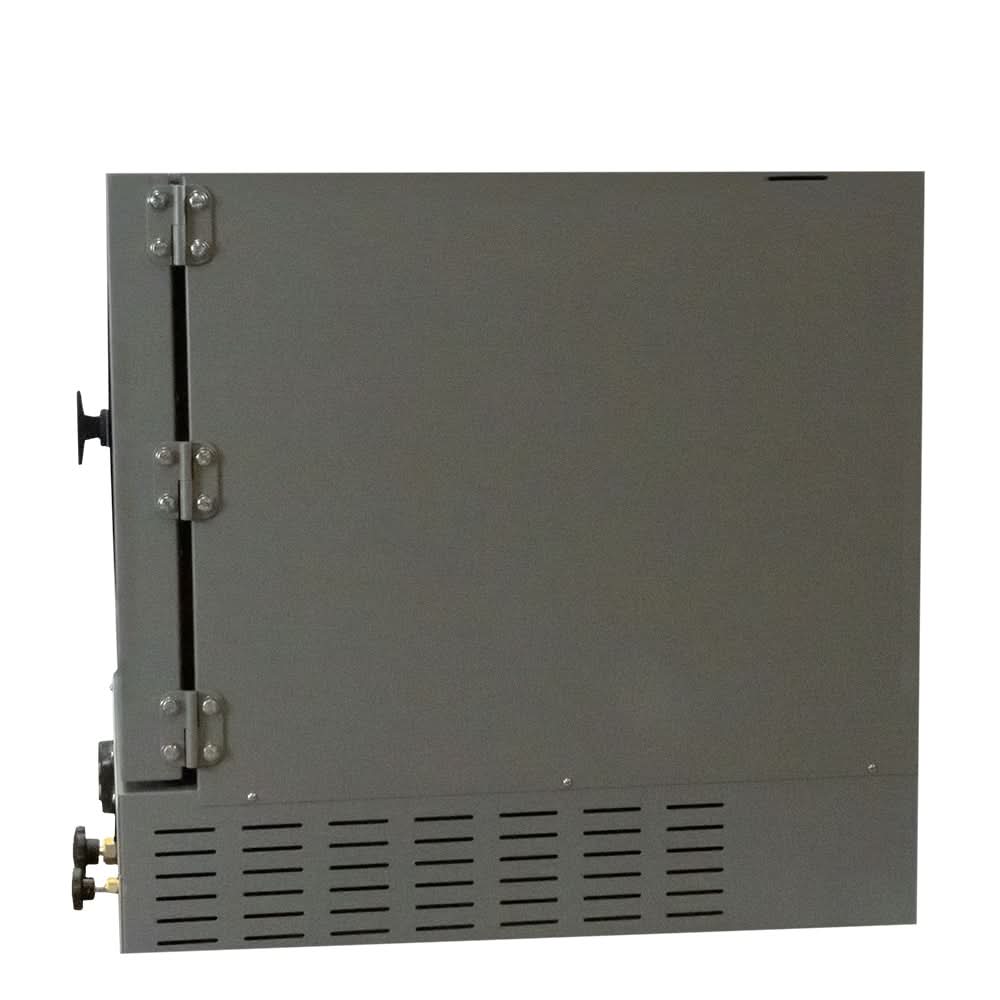

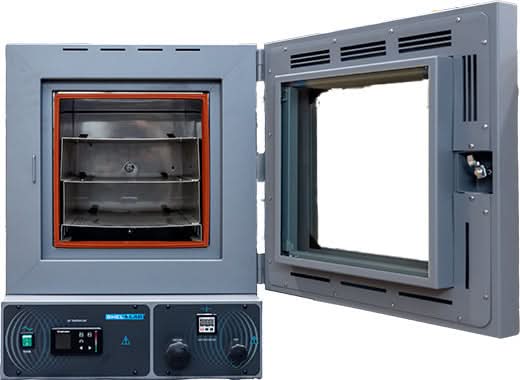

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples.
Â
SHEL LAB Vacuum Ovens are equipped with silicone gaskets.
Â
Features include:

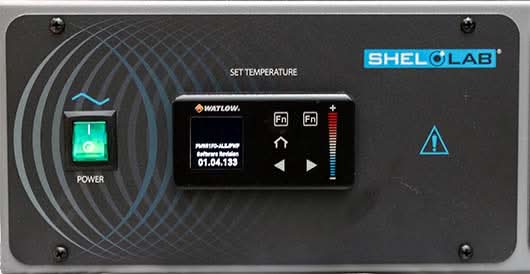

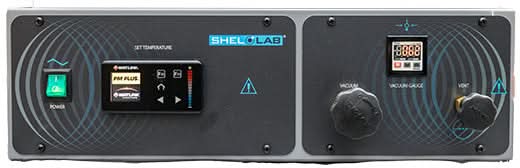

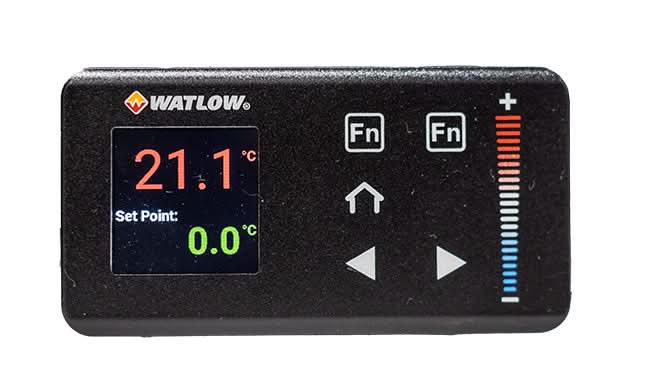

- Watlow PM9 Plus Controller
- Generous Usable Shelf Area
- Achieve Impressive Vacuum Levels
- Sizes Range from 0.6 – 4.5 Cubic Feet
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
Please note that this vacuum oven does not include a pump or related accessories. Contact your SHEL LAB distributor for assistance with choosing the ideal pump and accessories for any application.
| Temperature Range | Ambient +10°C to 220°C |
| Temperature Stability | ± 0.1°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 70 Minutes 150°C: 120 Minutes 220°C: 200 Minutes |
| Operational Vacuum Range | 3.0 to 29.9 inHg (101.6 to 1,012.5 mbar) |
| Vacuum Gauge Range | 0.0 to 29.9 inHg (0.0 to 1,012.5 mbar) |
| Volume | 47.2L (1.67 cu. ft.) |
| Shelves | 3 |
| Max. Shelf Capacity | 3 |
| Max. Shelf Load | 35.0 lb. (15.8 kg) |
| Interior Dimensions (W x D x H) | 12.0 x 20.0 x 12.0 in. (30.4 x 50.8 x 30.4 cm) |
| Exterior Dimensions (W x D x H) | 20.8 x 31.3 x 26.8 in. (52.8 x 79.5 x 68.1 cm) |
| Weight | 182.0 lb. (83.0 kg) |
| Electrical Requirements | 115V AC, 50/60Hz, 10.0A |
