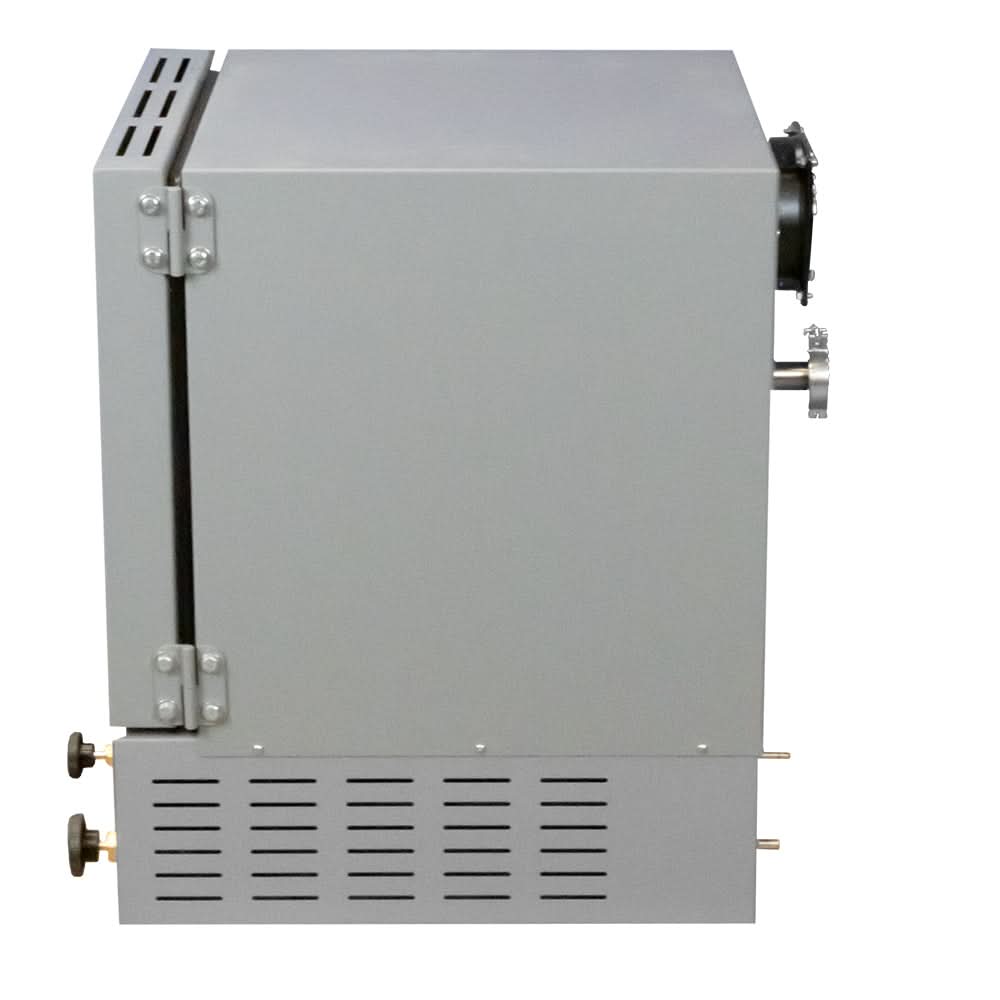

SHEL LAB SVAC1 Vacuum Oven 15.9L
Our revamped SHEL LAB SVAC vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials.
Vacuum ovens prevent residue accumulation on products and use lower temperatures than typical convection ovens. Your products are processed with minimal impact and maximum throughput.Â
Â

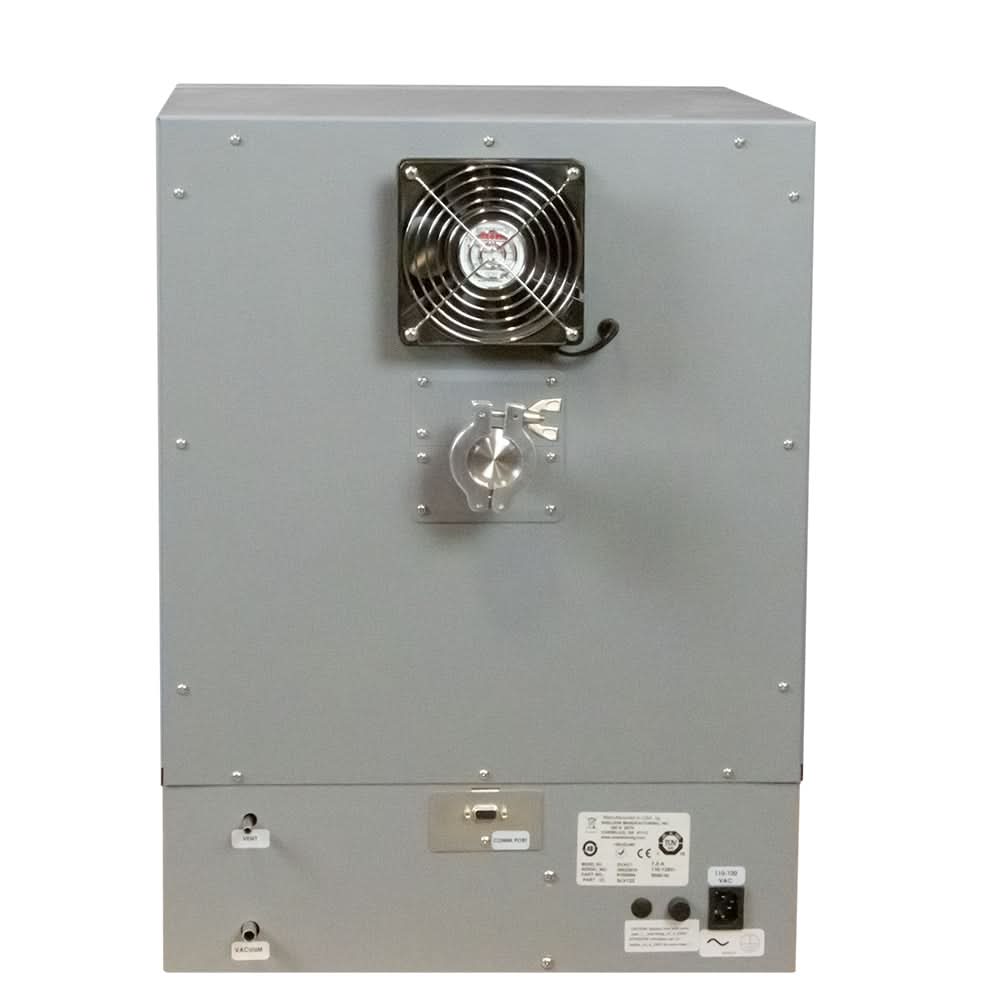

SHEL LAB vacuum ovens have stainless steel interiors and provide exceptional durability and stability. Available in 4 sizes, SVAC Vacuum Ovens support a diverse array of applications. To achieve required vacuum levels, users can choose from a 3/8-inch orifice or a KF-25 fitting to withstand heavy use and minimize draw-down time.
Â

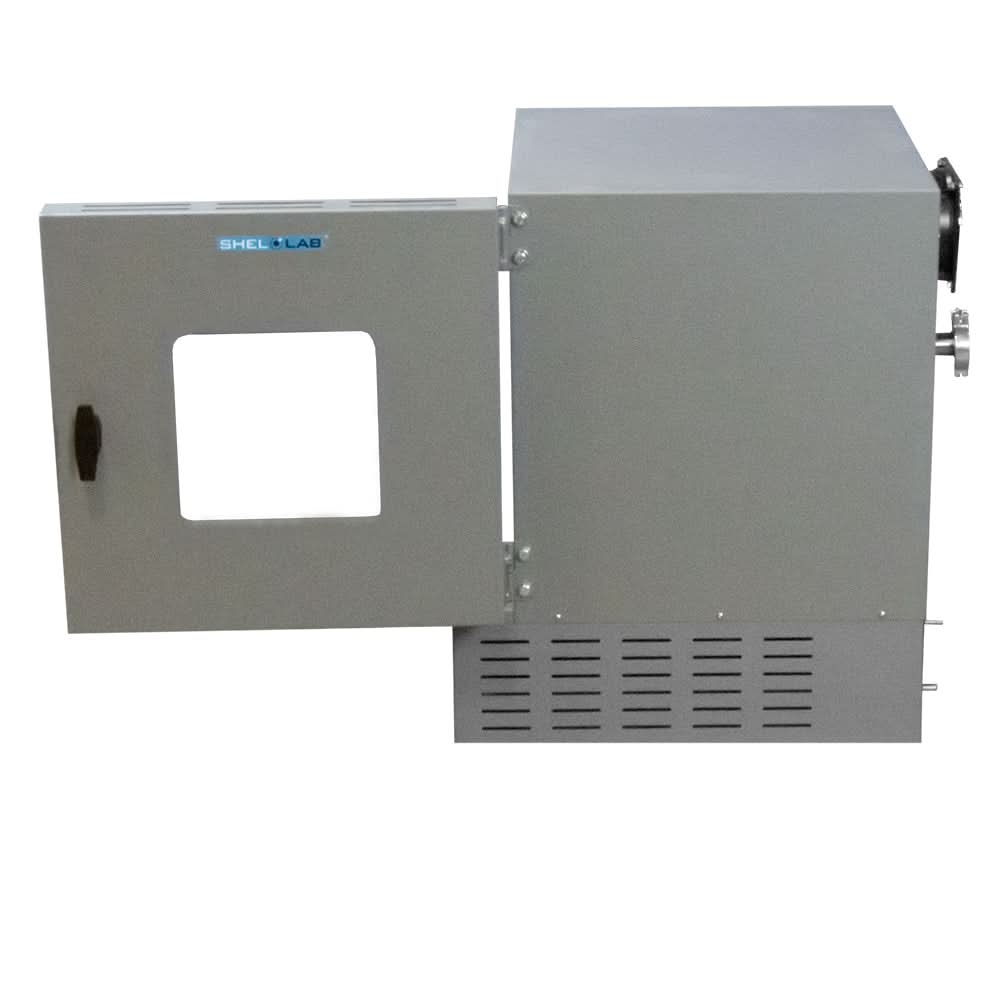

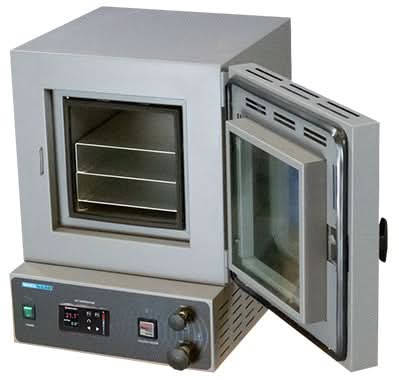

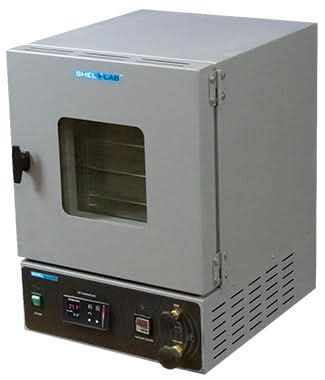

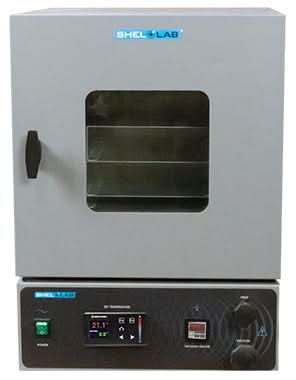

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples.
Â
SHEL LAB Vacuum Ovens are equipped with silicone gaskets.
Â
Features include:

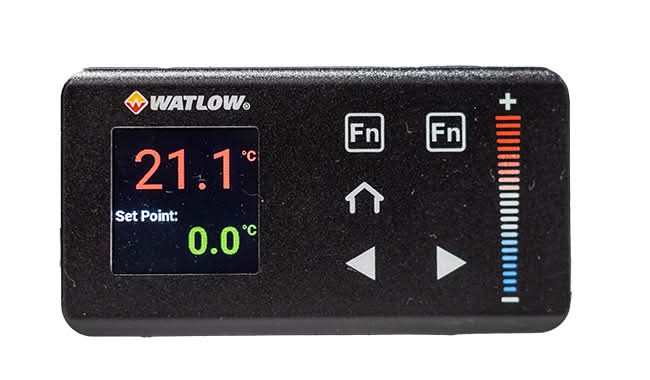

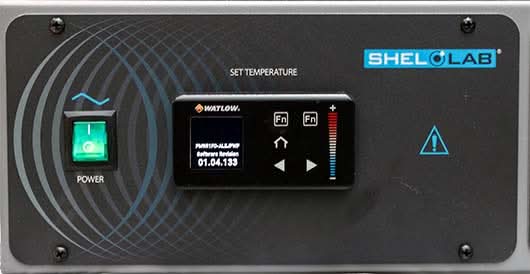

- Watlow PM9 Plus Controller
- Generous Usable Shelf Area
- Achieve Impressive Vacuum Levels
- Sizes Range from 0.6 – 4.5 Cubic Feet
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
Please note that this vacuum oven does not include a pump or related accessories. Contact your SHEL LAB distributor for assistance with choosing the ideal pump and accessories for any application.
| Temperature Range | Ambient +10°C to 220°C |
| Temperature Stability | ± 0.1°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 40 Minutes 150°C: 70 Minutes 220°C: 120 Minutes |
| Operational Vacuum Range | 3.0 to 29.9 inHg (101.6 to 1,012.5 mbar) |
| Vacuum Gauge Range | 0.0 to 29.9 inHg (0.0 to 1,012.5 mbar) |
| Volume | 15.9L (0.56 cu. ft.) |
| Shelves | 3 |
| Max. Shelf Capacity | 3 |
| Max. Shelf Load | 35.0 lb. (15.8 kg) |
| Interior Dimensions (W x D x H) | 9.0 x 12.0 x 9.0 in. (22.8 x 30.4 x 22.8 cm) |
| Exterior Dimensions (W x D x H) | 17.5 x 23.0 x 23.7 in. (44.4 x 58.4 x 60.2 cm) |
| Weight | 102.0 lb. (47.0 kg) |
| Electrical Requirements | 115V AC, 50/60Hz, 5.0A |
