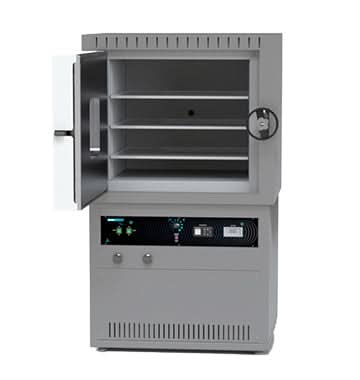

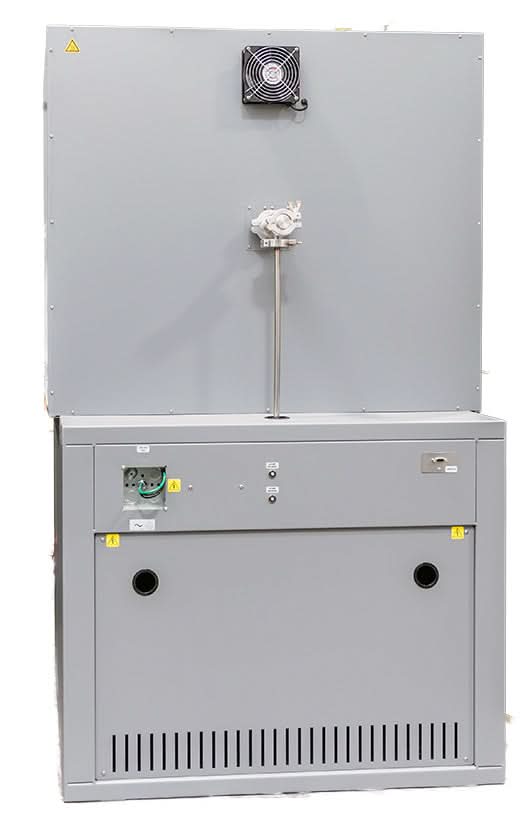

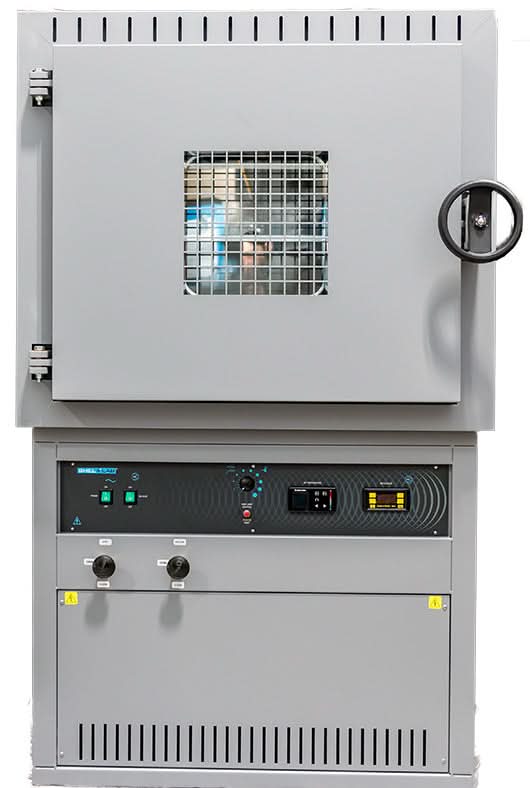

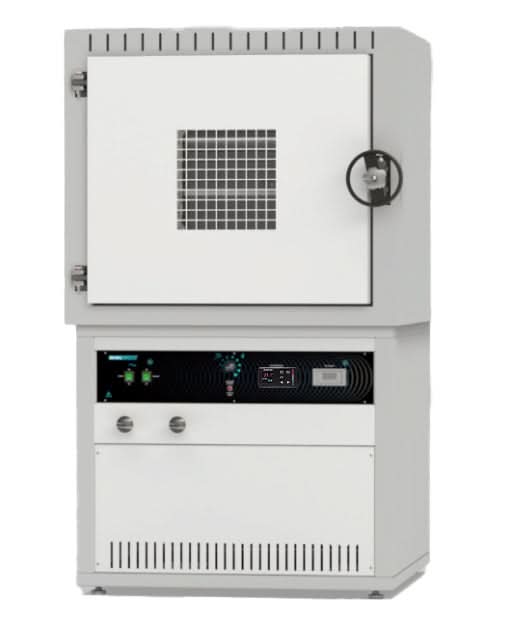

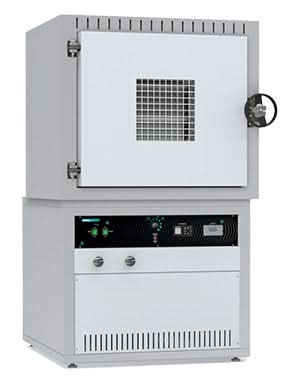

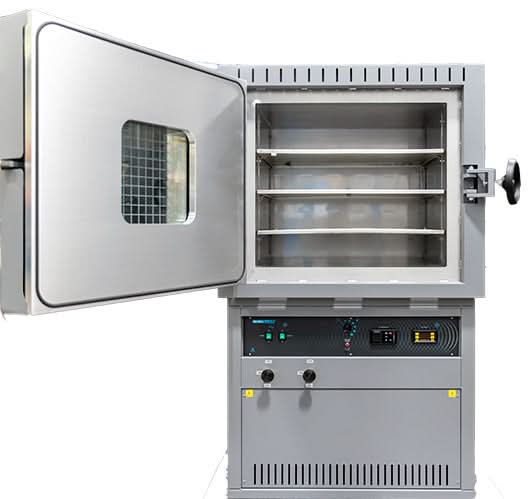

SHEL LAB SVAC9-2 Vacuum Oven 264L, 230V
This unit includes true vacuum valves and has cross-flow ventilation within the oven chamber to enhance total performance. The vacuum oven is secured to a ruggedly constructed mobile stand to create a vacuum pump at the base. Although the oven is not supplied with a vacuum pump, all vacuum plumbing and KF25 connections are provided.
The SHEL LAB SVAC9-2 vacuum oven is equipped with a Viton gasket, which provides an excellent combination of high-temperature performance and chemical resistance. When paired with this oven’s deep-draw capacity and large chamber volume, the SVAC9-2 serves as one of the most robust vacuum work stations available on the market.
Features include:

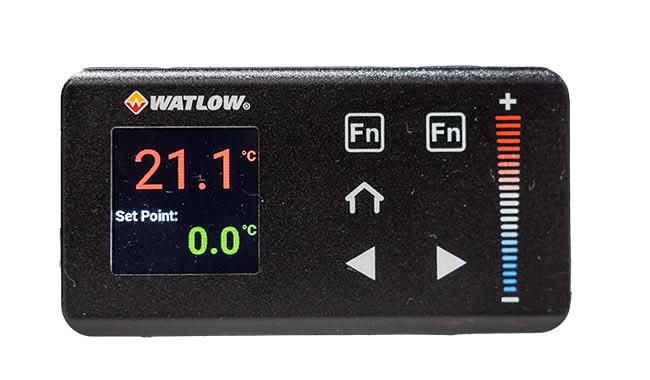

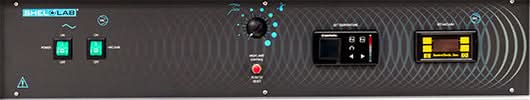

- Watlow PM9 Plus Controller Capable Of 40 Step Ramp And Soak Profiles, Or 4 Files With 10 Steps Per File
- Stainless Steel Interior
- Stainless Steel Exterior Option Available (Ideal For Cleanroom Applications)
- KF25 Fitting Included
- Built in Vacuum Pump Mount
- 24 Month Limited Warranty
| Temperature Range | Ambient +15°C to 220°C |
| Temperature Uniformity | ± 6% of Set Point |
| Temperature Stability | ± 0.2°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 80 Minutes 150°C: 130 Minutes 220°C: 180 Minutes |
| Operational Vacuum Range | 3.0 to 29.9 inHg (101.6 to 1,012.5 mbar) |
| Vacuum Gauge Range | 0.0 to 29.9 inHg (0.0 to 1,012.5 mbar) |
| Volume | 264.0L (9.30 cu. ft.) |
| Shelves | 3 |
| Max. Shelf Capacity | 8 |
| Max. Shelf Load | 75.0 lb. (34.0 kg) |
| Interior Dimensions (W x D x H) | 28.0 x 24.0 x 24.0 in. (71.0 x 60.9 x 60.9 cm) |
| Exterior Dimensions (W x D x H) | 38.1 x 46.8 x 63.9 in. (96.5 x 118.9 x 162.4 cm) |
| Weight | 492.0 lb. (223.0 kg) |
| Electrical Requirements | 230V AC, 50/60Hz, 20.0A |
