Description

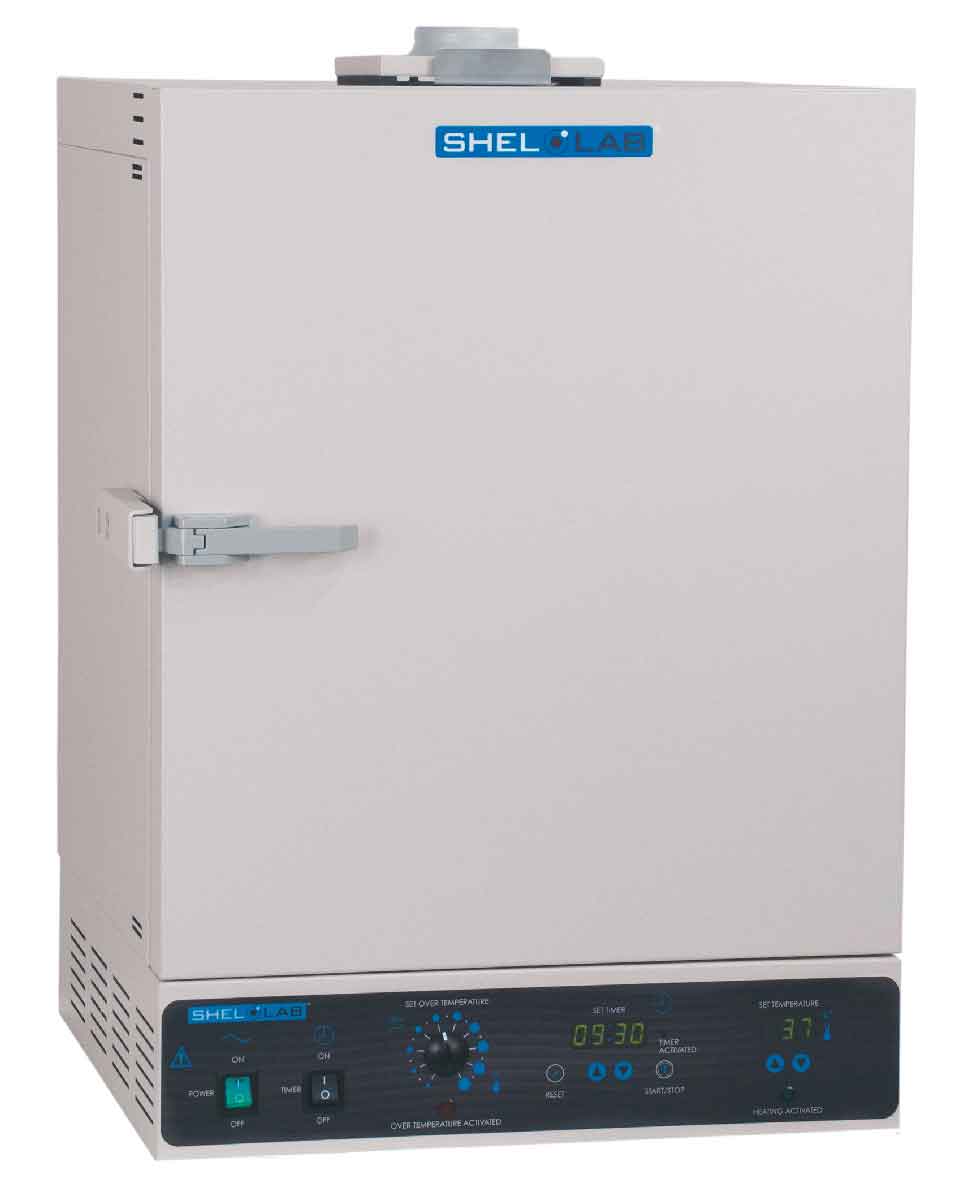

SHEL LAB SMO1 Forced Air Convection Oven 39.4L
The SMO1 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.
Â
These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.
Â

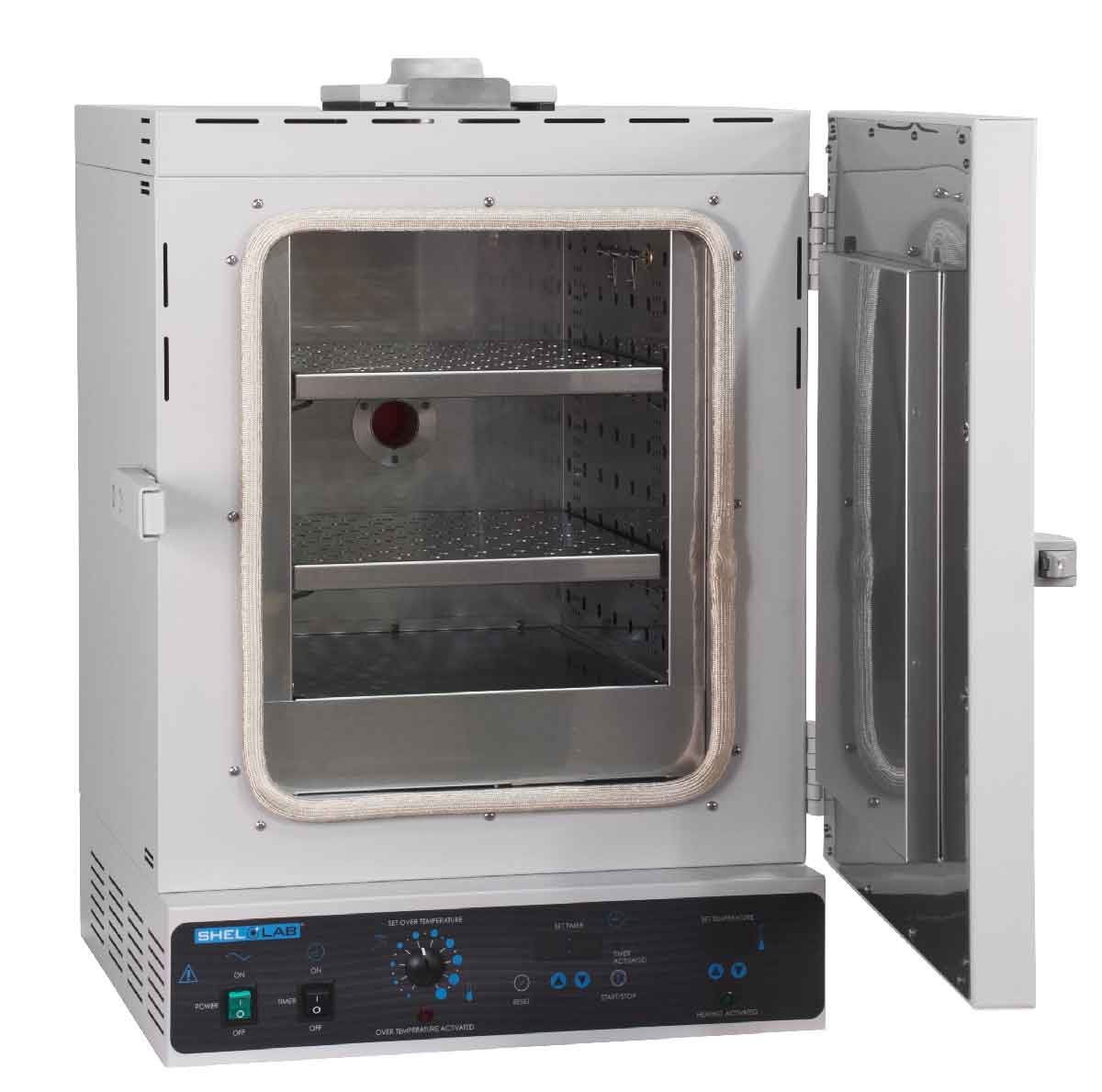

This unit is equipped with a stainless-steel interior for long-life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep work spaces cool.
Â
The SMO1's forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the SHEL LAB brand.
Â
Features of this oven include:
- Embedded Microprocessor Control with Countdown Timer
- Horizontal Forced Airflow
- 1.75in (45 mm) Access Port
- UL/CSA Approved
- CE Approval
- DIN 12880 Compliant
- 24 Month Limited Warranty
- Includes 2 Shelves. Holds 6 Total
- Temperature Range +20°C to 306°C
- Temperature Uniformity ± 5.4°C at 306°C
Options:
SMO1: OVEN, FORCED AIR, 1.4 CU FT, 115V
SMO1-2: OVEN, FORCED AIR, 1.4 CU FT, 230V
| Temperature Range | Ambient +20°C to 306°C |
| Temperature Uniformity | ± 0.5°C at 80°C ± 1.2°C at 150°C ± 5.4°C at 306°C |
| Temperature Stability | ± 0.3°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 5.5 Minutes 150°C: 15 Minutes 306°C: 96 Minutes |
| Volume | 39.4L (1.4 cu. ft.) |
| Shelves | 2 |
| Max. Shelf Capacity | 6 |
| Max. Shelf Load | 50.0 lb. (22.6 kg) |
| Access Port | 1.75 in. (45 mm) |
| Interior Dimensions (W x D x H) | 12.1 x 13.7 x 14.5 in. (30.7 x 34.9 x 36.8 cm) |
| Exterior Dimensions (W x D x H) | 22.7 x 23.5 x 31.5 in. (57.7 x 59.6 x 80.0 cm) |
| Weight | 126.5 lb. (57.4 kg) |
| Electrical Requirements | 110-120V AC, 50/60Hz, 12.0A |
