Description

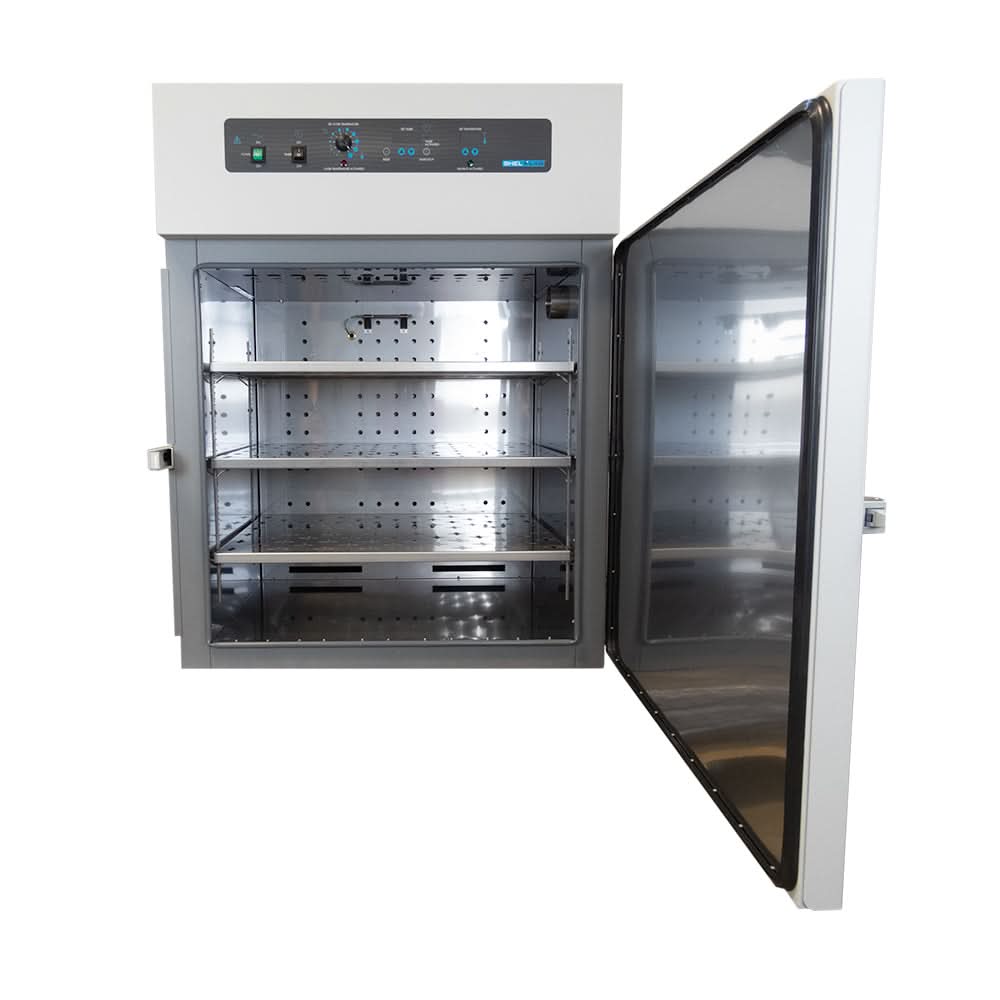

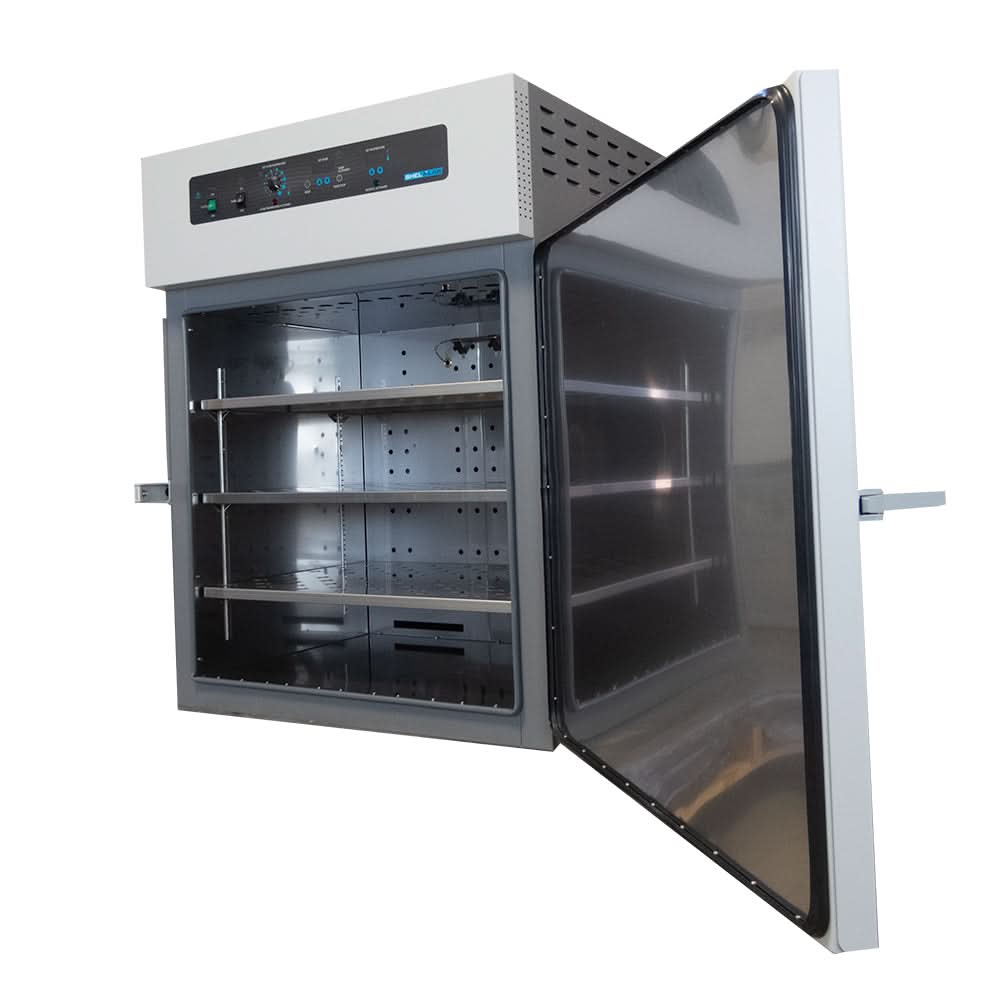

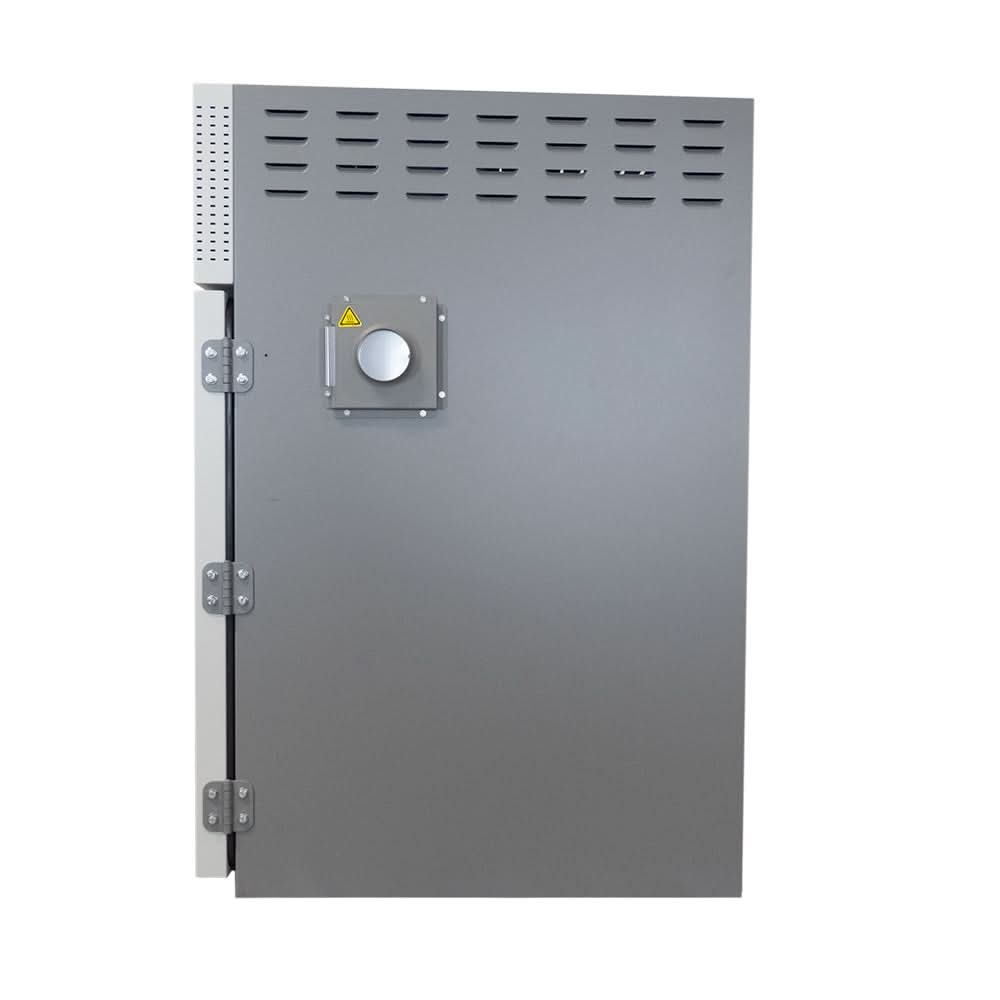

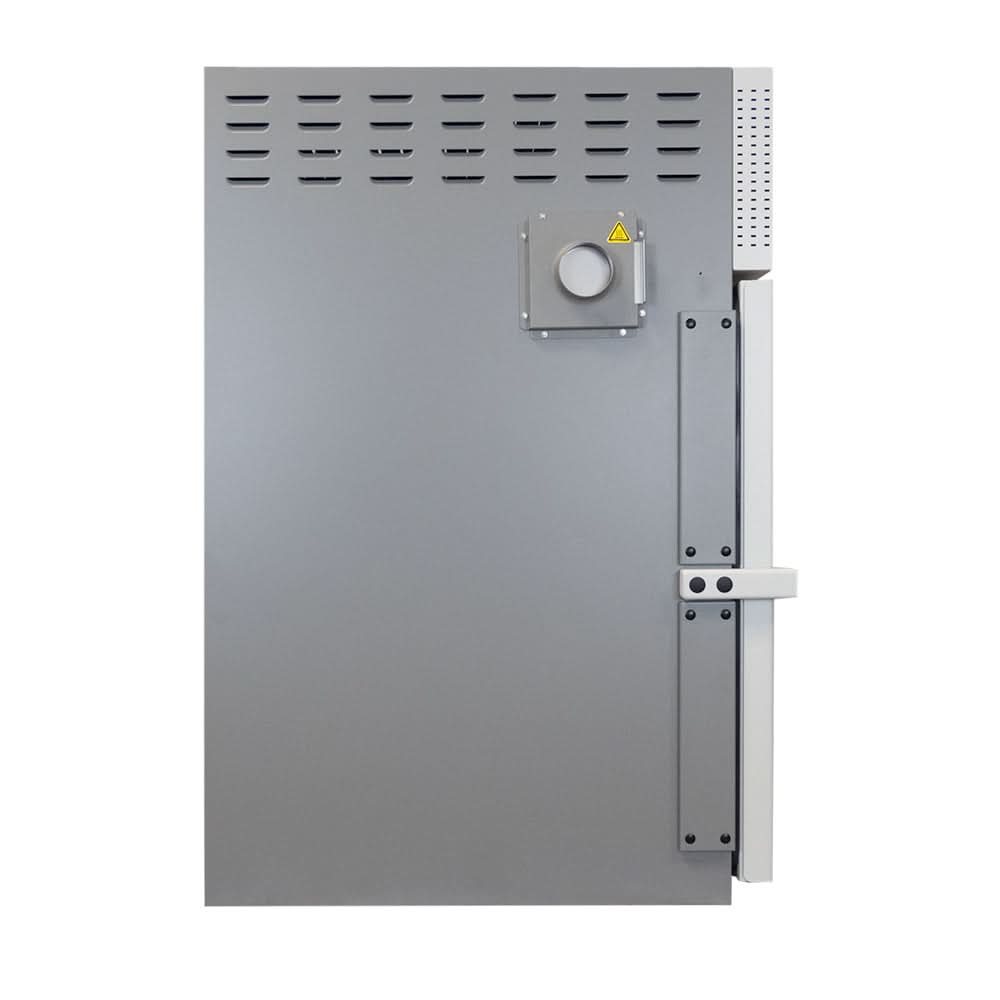

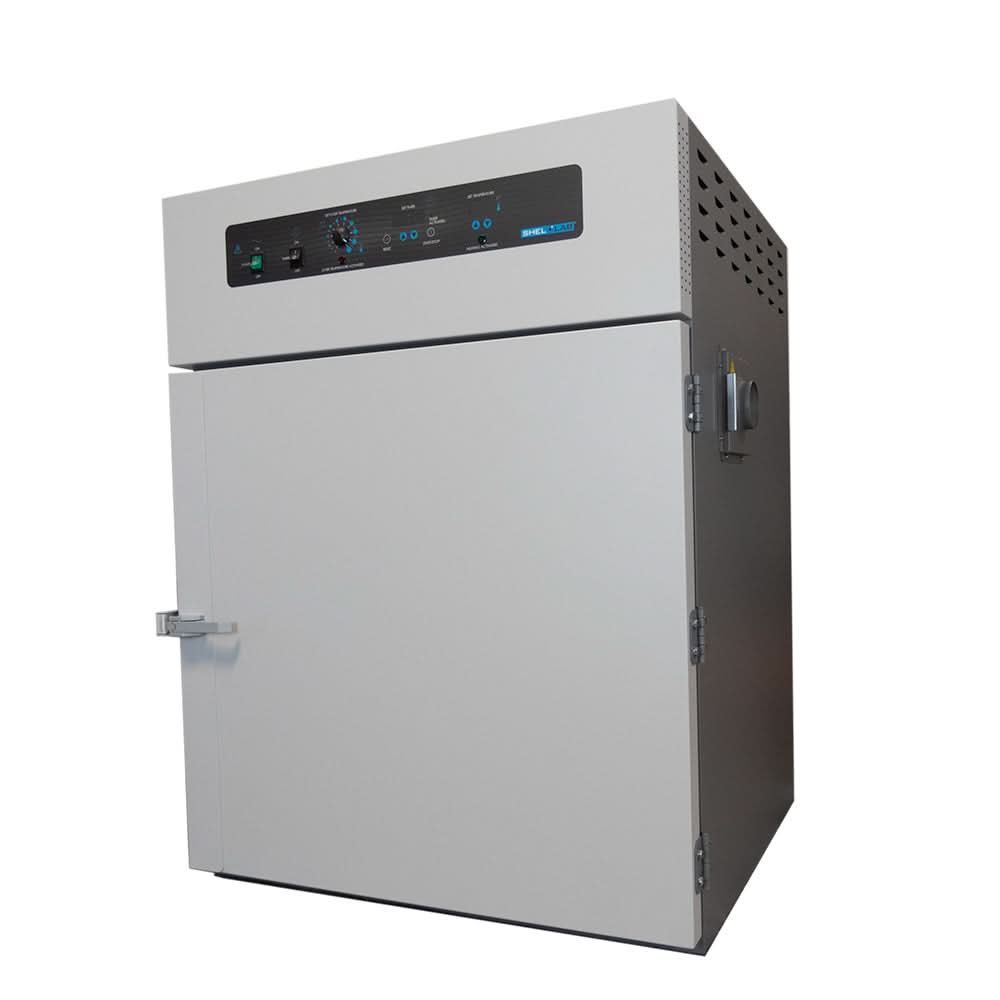

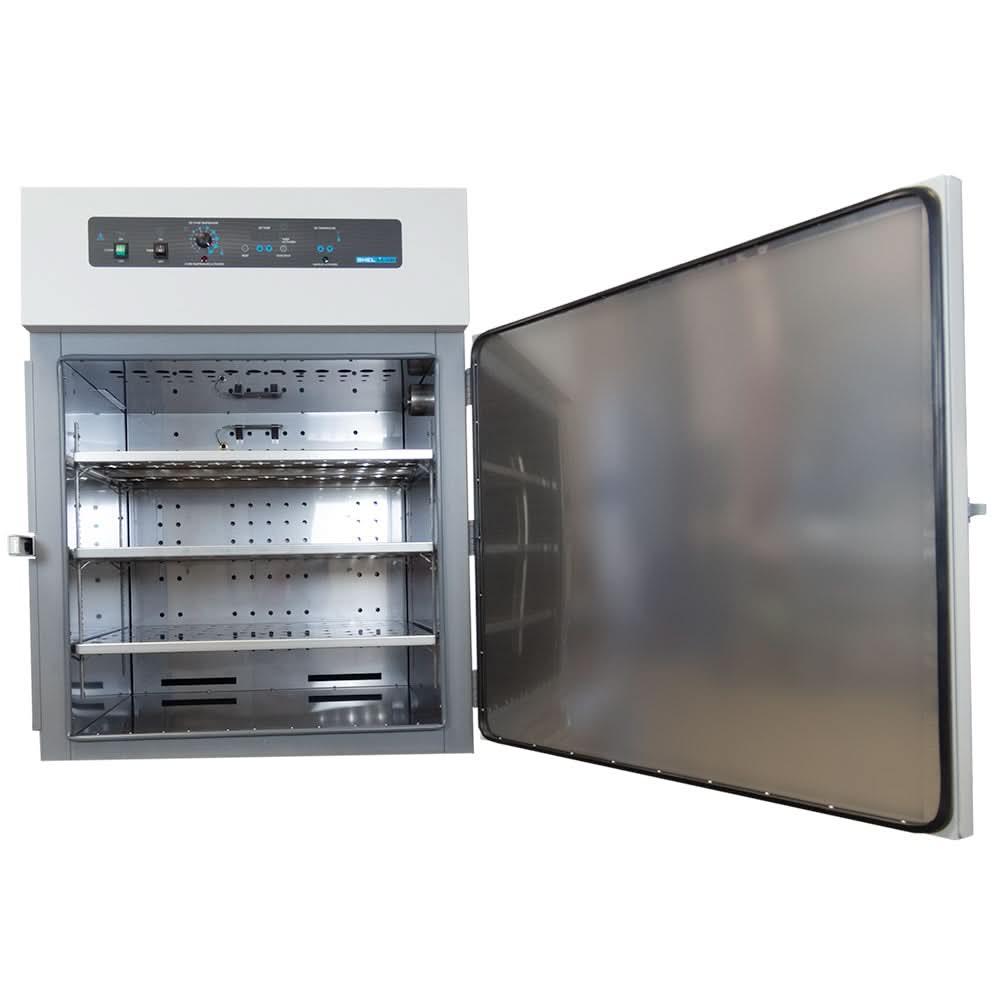

SHEL LAB SMO14-2 Large Capacity Forced Air Convection Oven 413L
The SHEL LAB SMO14-2 features 14 cubic feet of economical oven space. The independent overtemperature safety feature is user adjustable and provides added safety. The forced, blower-assisted airflow design offers excellent temperature uniformity and fast recovery. A turbo blower and heavy-duty motor combine to direct air over the shelves and samples for even, constant drying, curing, and baking.Â
Â
The large capacity SMO ovens are perfect for high volume sample and drying applications, including production processes. These units are especially ideal for glassware drying.
Â
These SHEL LAB Ovens Feature:
- Three-inch Adjustable Exhaust Port
- Stainless Steel Shelves
- Independent Overtemperature Safety
- High-Temperature Silicone Door Seal
- Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
- Shelf standards moved to the sides of the unit for easier shelf installationÂ
- No Exposed Heating
- Wrap Around Insulation
- Durable Powder Coat Paint Exterior Finish
- Digital Timer
- 24 Month Limited Warranty
- Includes 3 Shelves. Holds 7 Total
- Temperature Range +15°C to 260°C
- Temperature Uniformity ± 7°C at 260°C
| Temperature Range | Ambient +15°C to 260°C |
| Temperature Uniformity | ± 1.5°C at 80°C ± 3°C at 150°C ± 7°C at 260°C |
| Temperature Stability | ± 0.4°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 10 Minutes 150°C: 25 Minutes 260°C: 85 Minutes |
| Volume | 413.0L (14.6 cu. ft.) |
| Shelves | 3 |
| Max. Shelf Load | 75.0 lb. (34.0 kg) |
| Access Port | 1.75 in. (45 mm) |
| Interior Dimensions (W x D x H) | 30.8 x 24.8 x 31.0 in. (78.2 x 63.0 x 78.8 cm) |
| Exterior Dimensions (W x D x H) | 39.1 x 34.0 x 48.0 in. (99.4 x 86.4 x 121.9 cm) |
| Weight | 280.0 lb. (127.3 kg) |
| Electrical Requirements | 230V AC, 50/60Hz, 12.0A |
