Description

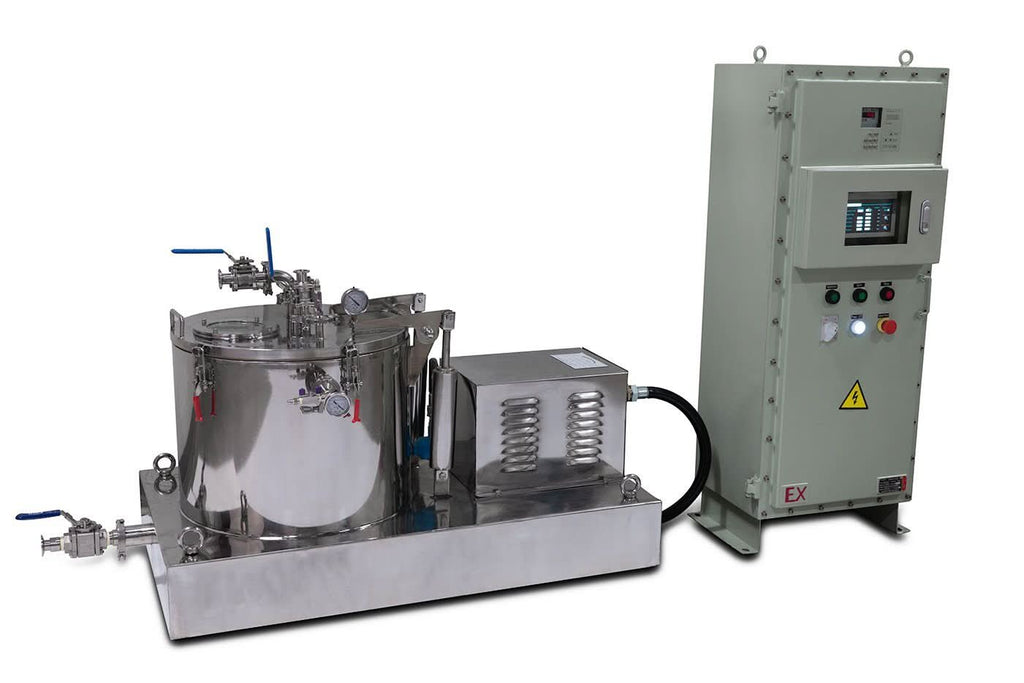

Certified 45L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller
Notice to Customer:Ā This unitĀ has 4 lift points (one in each corner) and requires a forklift to lift it. It will also ship via freight only.
Ā Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.
Key Features:
- Siemens Touch Screen Controller
- Explosion Proof Controller Housing and Motor
- Agitation and Spin Dry Modes
- Max 1500 RPM with Gradual Speed Stepping
- 566 Separation Factor
- Multiple Connection Ports/Sizes
- High Polish Stainless Steel Components
- Shock absorbing legs
- Vacuum Jacket with Two 1" Tri-Clamp Fittings
- Pre-wired and Tested for Easy Installation
*BVV Centrifuges are now available certified by PRV Engineers. Field visits/verification letters areĀ an additional $4,000 + travel expenses.*
| Specifications | |
|---|---|
| Capacity | 45L |
| Drum Dimensions | 17.7" (450mm) Diameter x 11-7/8" (300mm) Deep |
| Max Capacity | 15lbs (6.8Kg) |
| Speed | 1500 rpm |
| Separation Factor | 566 |
| Electrical |
240V 1Ć (10.58A) |
| Weight | 794lbs (360Kg) |
| Exterior Dimensions | 50" x 27.6" x 28.7" (1280mm x 700mm x 730mm) |
| Viewport Diameter | 5.5" |
| Connection Size(s): | 2" Tri-Clamp Drain Port |
| Ā 1" Tri-clamp Side Port X 2 | |
| 1" Tri-Clamp Top Port | |
| 1.5" Tri-Clamp Top Port | |
| 1/4" FNPT Top Port | |
| KF25 Top Port | |
