Across International Radwag X2 Series Touchscreen 8100g Capacity 0.01g Readability 8x8" Precision Balance

Power Lab Supply 2SKU: PS 8100.X2.M (WL-218-0102)

Title: Please Select
Price:
Sale price$1,841.28 USD
Description
Radwag X2 Series Touchscreen 8100g Capacity 0.01g Readability 8x8" Precision Balance

PS X2.M is a series of advanced-class precision balances of high resolution based onĀ Ā MONOBLOCK technology. The innovative construction of PS X2.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shape fastening guarantees excellent resistance to contamination. MONOBLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. Rigid base ensures the stability of the weighing system and great resistance to shocks.
Internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.

Ā

Ā

Ā

Radwag X2 Synergy Balances: Operating Modes Overview


Radwag X2 Synergy Balances


Features:

  • d=0.01 g readability at 10 kg max capacity
  • great resistance to ambient conditions
  • stability and repeatability over time
  • MONOBLOCK technology
  • internal adjustment within the whole measuring range
  • complex databases and ALIBI memory
  • ergonomic 5ā€ colour touchscreen
  • touch-free operation





Ā

Ā

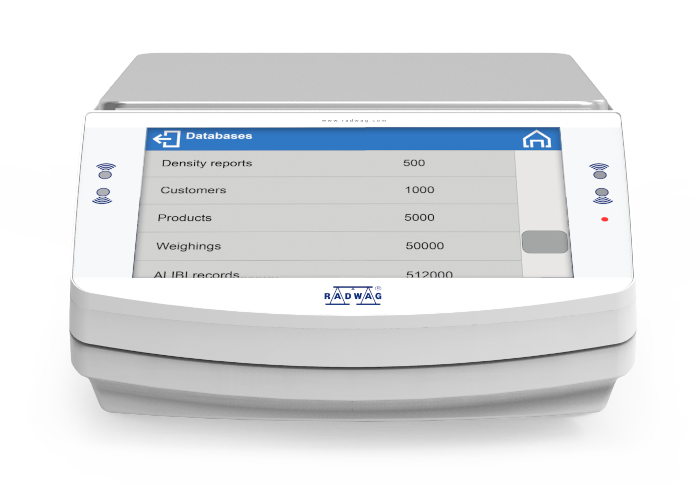

Databases
The instrument allows saving completed measurement data as complex reports and graphs.
There are 7 databases:

  • Operators (max 100 entries),
  • Products (max 5 000 entries),
  • Weighings (max 50 000 entries),
  • Packaging (max 100 entries)
  • Formulations (max 100 entries),
  • Customers (max 1000 entries),
  • The balance enables creating formulation reports (max 500 entries).

ALIBI memory provides data protection and facilitates automatic measurement recording (max 500 000 weighing records). The memory facilitates data previewing, copying and archiving.
Communication

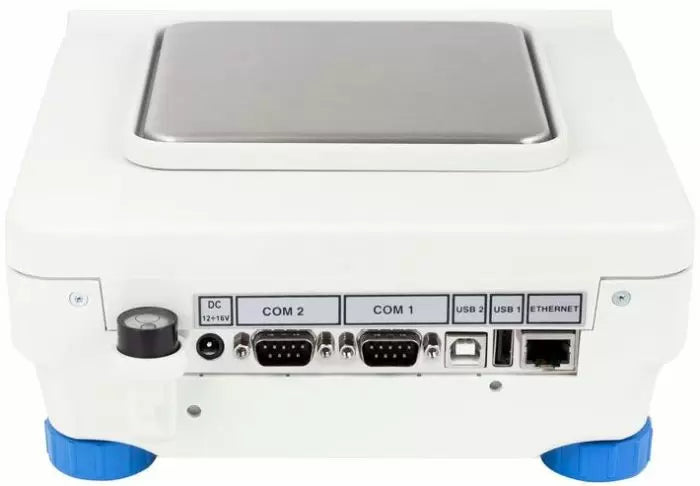

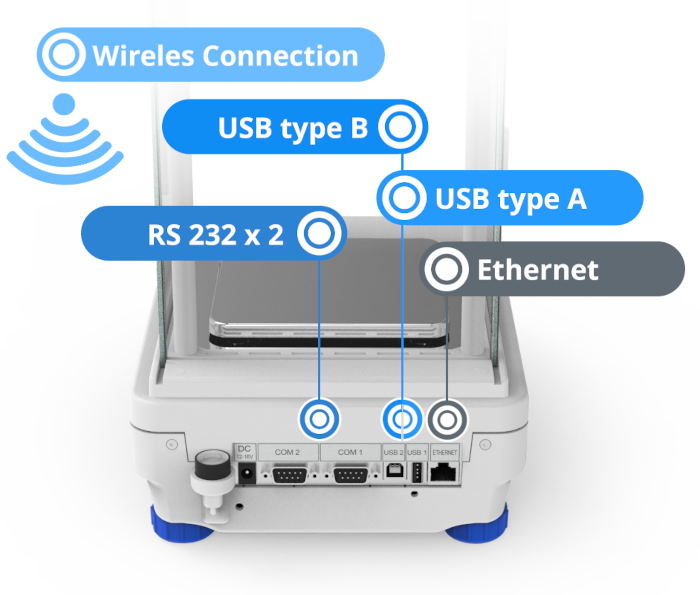

PS X2.M series is equipped with the following interfaces: 2 x RS 232, USB type A, USB type B, Ethernet and Wireless Connection. USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides possibility of remote data management.

Ā

Ā

Ā

Specifications
SPECIFICATIONS
Maximum capacity [Max]

8100 g

Minimum load

0,5 g

Readability [d]

0,01Ā g

Tare range

-8100 g

Verification scale interval [e]

0,1 g

Minimum weight (USP)

10 g

Minimum weight (U=1%,k=2)

1 g

Repeatability (Max)

0,01 g

Repeatability (5% Max)

0,005 g

Linearity

Ā±0,03 g

Stabilization time

1,5 s

Adjustment

internal (automatic)

OIML Class

II

Physical parameters
Leveling system

manual

Display

5ā€ graphic color touchscreen

Delivery components

Balance, weighing pan, weighing pan shield, power supply.

Weighing pan dimensions

195Ɨ195mm

Device dimensions

333x206x107mm

Packaging dimensions

470Ɨ380Ɨ336mm

Net weight

5,7kg

Gross weight

7,3kg

Protection class

IP 43

Database capacity

7

Communication interface

2ƗRS232Ā¹, USB-A, USB-B, Ethernet, Wi-FiĀ®

Touch-free operation

2 IR Sensors

Power supply

Adapter: 100-240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 ā€“ 15V DC 0,8A max

Operating temperature

+10 ā€” +40Ā°C

Relative humidity

40% ā€” 80%
