Across International Radwag X2 Series Touchscreen 6100g Capacity 0.01g Readability 8x8" Precision Balance

Power Lab Supply 2SKU: PS 6100.X2.M (WL-218-0104)
No reviews

Title: Please Select
Price:
Sale price$1,392.96 USD
Description
Radwag X2 Series Touchscreen 6100g Capacity 0.01g Readability 8x8" Precision Balance

PS X2.M is a series of advanced-class precision balances of high resolution based on MONOBLOCK technology. The innovative construction of PS X2.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shaped fastening guarantees excellent resistance to contamination.

MONOBLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. A rigid base ensures the stability of the weighing system and great resistance to shocks.

An internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.

Radwag R Series Laboratory Balances


Features:

  • d=0.01g readability at 10 kg max capacity
  • great resistance to ambient conditions
  • stability and repeatability over time
  • MONOBLOCK technology
  • internal adjustment within the whole measuring range
  • complex databases and ALIBI memory
  • ergonomic 5” colour touchscreen
  • touch-free operation

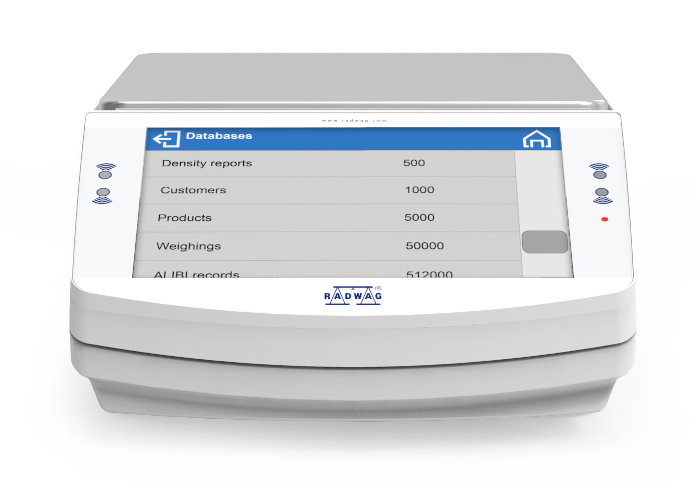

Databases
The instrument allows for saving completed measurement data as complex reports and graphs.
There are 7 databases:

  • Operators (max 100 entries),
  • Products (max 5 000 entries),
  • Weighings (max 50 000 entries),
  • Packaging (max 100 entries)
  • Formulations (max 100 entries),
  • Customers (max 1000 entries),
  • The balance enables creating formulation reports (max 500 entries).

ALIBI memory provides data protection and facilitates automatic measurement recording (max 500 000 weighing records). The memory facilitates data previewing, copying and archiving.

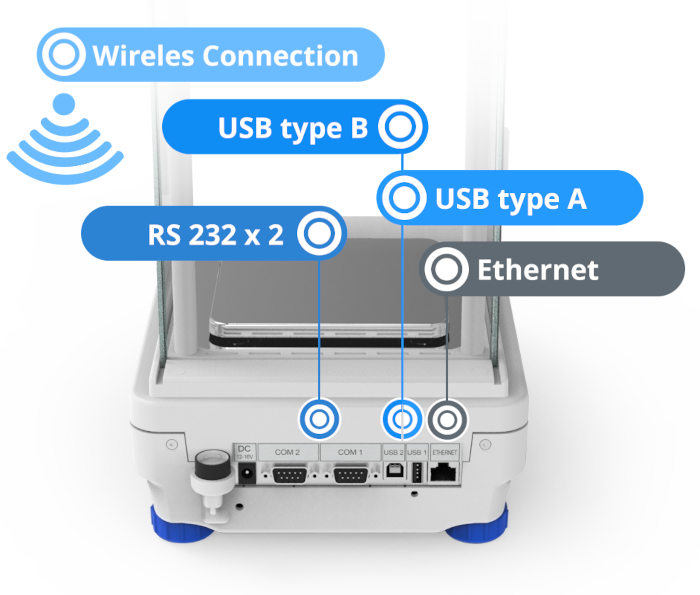

Communication
PS X2.M series is equipped with the following interfaces: 2 x RS 232, USB type A, USB type B, Ethernet and Wireless Connection. USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides the possibility of remote data management.



Specifications
SPECIFICATIONS
Maximum capacity [Max]

6100 g

Minimum load

0,5 g

Readability [d]

0,01 g

Tare range

-6100 g

Minimum weight (USP)

10 g

Minimum weight (U=1%,k=2)

1 g

Repeatability (Max)

0,008 g

Repeatability (5% Max)

0,005 g

Linearity

±0,02 g

Stabilization time

1,5 s

Adjustment

internal (automatic)

OIML Class

II

Physical parameters
Leveling system

manual

Display

5” graphic color touchscreen

Delivery components

Balance, weighing pan, weighing pan shield, power supply.

Weighing pan dimensions

195×195mm

Device dimensions

333x206x107mm

Packaging dimensions

470×380×336mm

Net weight

5.7kg

Gross weight

7.3kg

Protection class

IP 43

Communication interface

2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance: 12 – 15V DC 0.8A max

Operating temperature

+10 — +40°C

Storage Temperature

-20 — +50°C

Relative humidity

40% — 80%
