Description

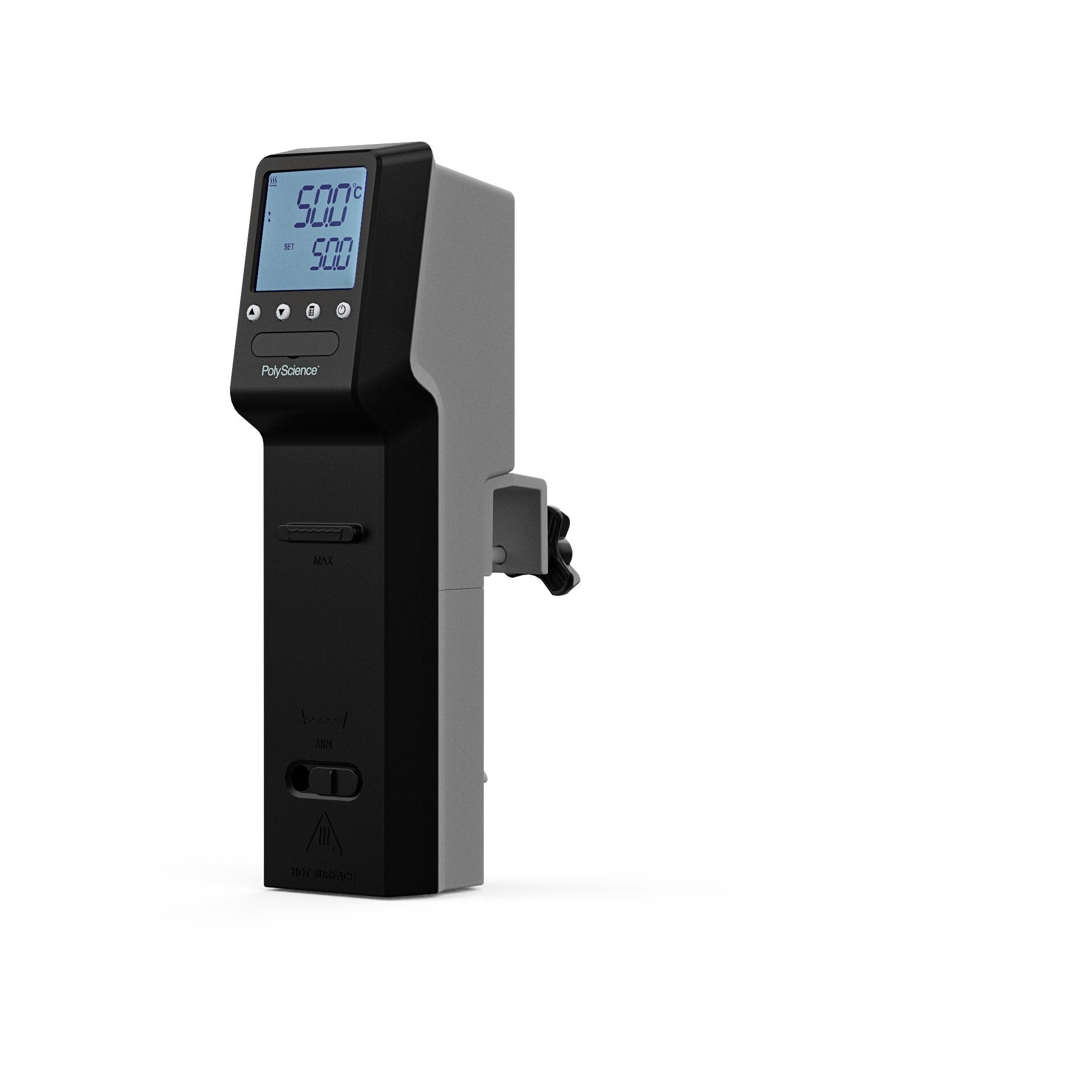

Polyscience MX Immersion Circulator
Â
| Specification | |
|---|---|
| Description | 135, Immersion Circulator |
| Controller Type | MX Immersion |
| Display | 3.25" LCD |
| Languages Supported | English |
| Working Temperature Range °C | Ambient +10° to 135° |
| Temperature Stability °C | ±0.07° |
| Temperature Calibration Capability | 1-point |
| Pump Type | Pressure |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Working Temperature Range °F | Ambient + 20° to 275° |
| Working Temperature Range °C | Ambient +10° to 135° |
| Reservoir Capacity (gallons) | 7.4 |
| Reservoir Capacity (liters) | 28 |
| Reservoir/Tank Material | Stainless Steel |
| Temperature Stability °F | ±0.13° |
| Temperature Stability °C | ±0.07° |
| Display | 3.25" LCD |
| Display Resolution (Set) | 0.1 |
| Display Resolution (Read) | 0.1 |
| Pump Type | Pressure |
| Pump Speed | One |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Low Liquid Level Protection | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 4.3 x 3.8 x 14.1 in |
| Overall Dimensions (L x W x H) (cm) | 10.9 x 9.7 x 35.8 cm |
| Environmental Compliance | RoHS |
| Shipping Weight (pounds) | 10.0 |
| Shipping Weight (kilograms) | 4.5 |
| Catalog Page Number | 66 |
| 60 Hz Only | |
| Part Number | MX-CA11B |
| Maximum Pressure (psi) | 2.3 |
| Maximum Pressure (bar) | 0.16 |
| Maximum Pressure Flow Rate (gpm) | 3.60 |
| Maximum Pressure Flow Rate (l/min) | 13.5 |
| Heater Wattage | 1100 |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/10 |
| Regulatory Approvals | ETL |
Â
Key Features:
- Large, universal icon and English Display
- On-screen prompts
- Single-point calibration capability
- For laboratory use only
- Suitable for tank capacities up to 28 liters
Â
Certifications:Â
- Regulatory Approvals: ETL
