Description

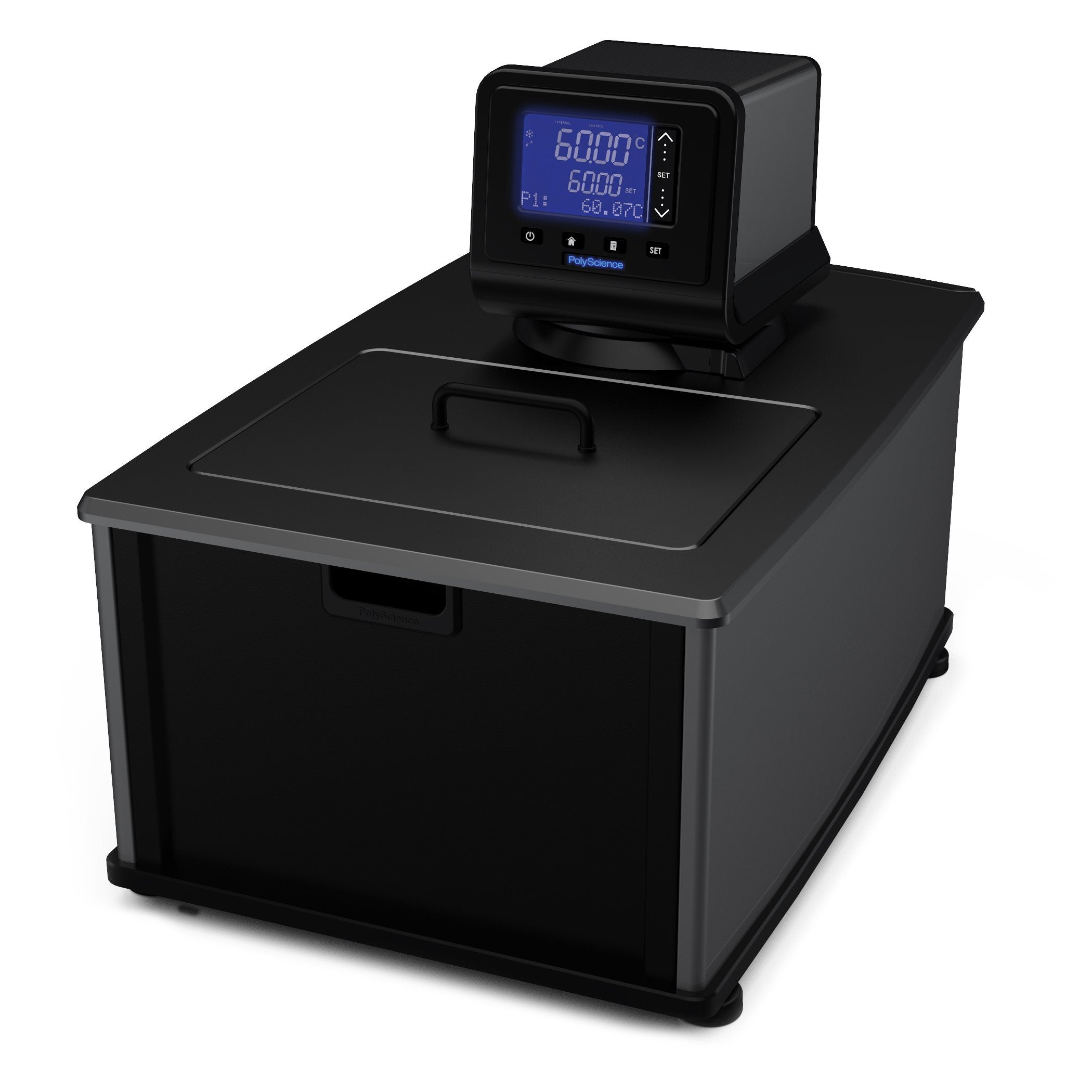

Polyscience 15 Liter Advanced Digital Heated Circulator
Note: This Item has a lead time of 2 weeks depending on stock availability.
Â
| Specification | |
|---|---|
| Description | 200, 15 L Htg. Circulator |
| Controller Type | Advanced Digital |
| Display | 3.75" Touch-Pad LCD |
| Connectivity | Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe |
| Languages Supported | 4: French, German, Spanish, English |
| Swivel 180 Rotating Controller | Yes |
| Working Temperature Range °C | Ambient +10° to 200° |
| Temperature Stability °C | ±0.01° |
| Fluid Optimization/Specific Heat Tuning | Automatic and/or user-adjustable |
| Temperature Calibration Capability | 1-point |
| Working Access (L x W x D) (cm) | 21.2 x 27.6 x 14 cm |
| Pump Type | Pressure/Suction |
| External Temperature Control Capability | Yes |
| Flammability Class (DIN 12876-1) | III (FL) |
| Working Temperature Range °F | Ambient + 20° to 392° |
| Working Temperature Range °C | Ambient +10° to 200° |
| Reservoir Capacity (gallons) | 3.96 |
| Reservoir Capacity (liters) | 15 |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop | Yes |
| LidDock | Yes |
| Working Access (L x W x D) (inches) | 8.35 x 10.88 x 5.5 in |
| Working Access (L x W x D) (cm) | 21.2 x 27.6 x 14 cm |
| Temperature Stability °F | ±0.02° |
| Temperature Stability °C | ±0.01° |
| Display | 0.01 |
| Display Resolution (Read) | 0.01 |
| Pump Type | Pressure/Suction |
| Pump Speed | Variable |
| Process Connections | 1/4" (F) NPT |
| External Temperature Control Capability | Yes |
| Flammability Class (DIN 12876-1) | III (FL) |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| Reservoir Drain | Yes |
| Cooling Coil | Yes |
| Included Software | PolyTemp Viewer, USB driver |
| Maximum Ambient Temperature °F | 95 |
| Maximum Ambient Temperature °C | 35 |
| Overall Dimensions (L x W x H) (inches) | 22.4 x 14.5 x 16.6 in |
| Overall Dimensions (L x W x H) (cm) | 56.9 x 36.8 x 42.2 cm |
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) | 62.0 |
| Shipping Weight (kilograms) | 28.1 |
| Catalog Page Number | 56-57 |
| 60 Hz Only | |
| Part Number | AD15H200-A11B |
| Maximum Pressure (psi) | 4.3 |
| Maximum Pressure (bar) | 0.30 |
| Maximum Pressure Flow Rate (gpm) | 5.30 |
| Maximum Pressure Flow Rate (l/min) | 20.1 |
| Maximum Suction Flow Rate (gpm) | 3.9 |
| Maximum Suction Flow Rate (l/min) | 14.7 |
| Included Hardware | Nylon hose adapters for 3/8", 1/4", and 3/16" |
| Heater Wattage | 1100 |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/10 |
| Regulatory Approvals | ETL |
| 50 Hz Only | |
| Part Number | AD15H200-A12E |
| Maximum Pressure (psi) | 3.6 |
| Maximum Pressure (bar) | 0.25 |
| Maximum Pressure Flow Rate (gpm) | 4.40 |
| Maximum Pressure Flow Rate (l/min) | 16.7 |
| Maximum Suction Flow Rate (gpm) | 3.2 |
| Maximum Suction Flow Rate (l/min) | 12.2 |
| Included Hardware | Nylon hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter |
| Heater Wattage | 2200 |
| Electrical Requirements (VAC/Hz/Ph/A) | 240/50/1/10 |
| Regulatory Approvals | CE |
Â
Key Features:
- Intuitive 3.75" (9.5 cm) display with touch-pad control
- 4 languages: French, German, Spanish, English
- Swivel 180 Rotating Controller
- On-board connectivity: Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
- On-screen prompts
- Automatic performance optimization and specific heat tuning
- Single-point calibration capability
Â
Regulatory Approvals
-
ETL ApprovalsÂ
- CE ApprovalsÂ
