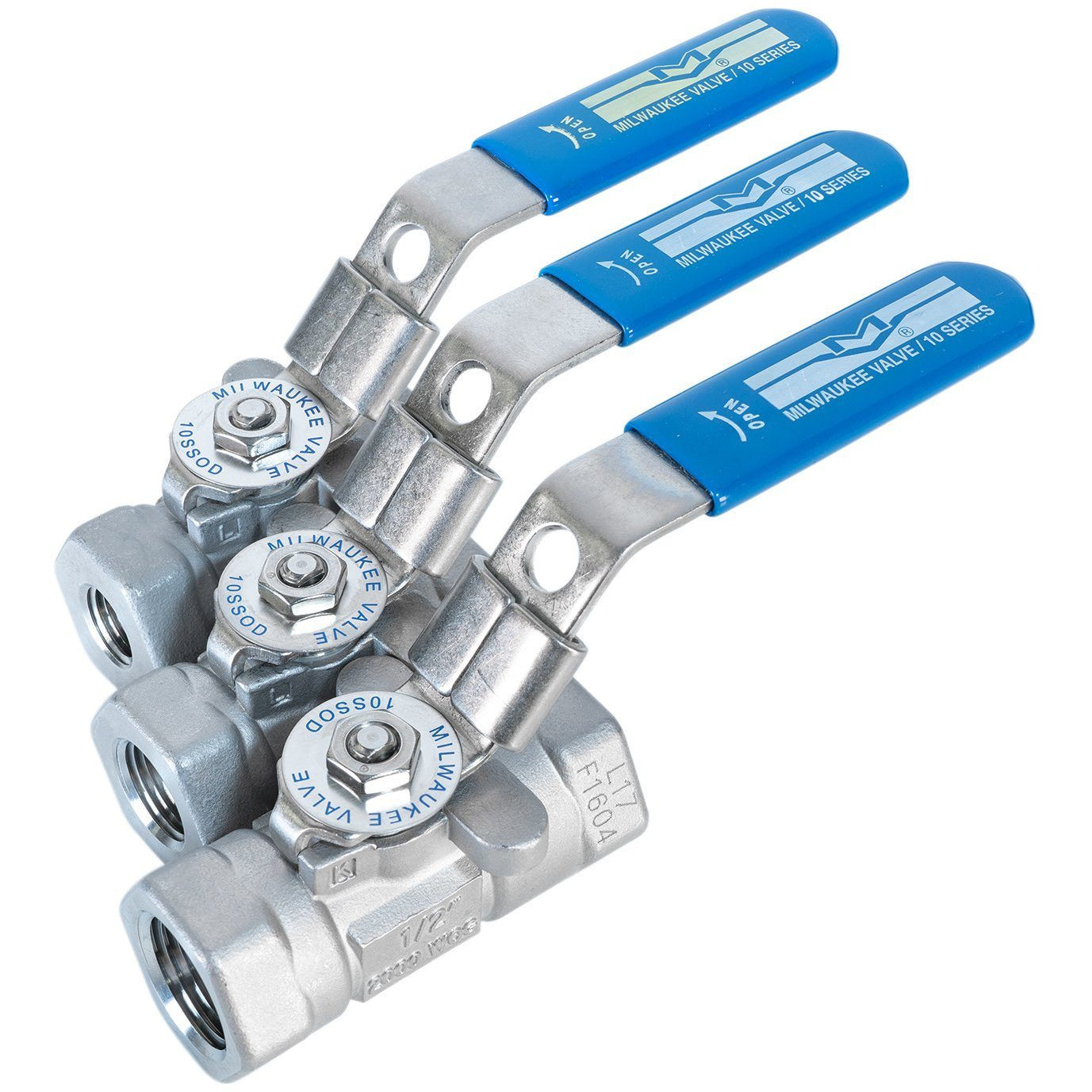

Milwaukee Valves Milwaukee Valve 316SS FNPT Ball Valve

Power Lab Supply 1SKU: 19500MIV
No reviews

Select Size: 1/4"
Price:
Sale price$81.60 USD
Description

Milwaukee Valve 316SS FNPT Ball Valve


(10SSOD-02-LL)


This top of the line 316 Stainless Steel Milwaukee ball valve is a fire safe ball valve and is 1 piece ball valve construction. It also features a straight body style with Female NPT x Female NPT threaded connections with one side being pinned into place for zero movement during installation. The fire safe ball valve features a maximum pressure rating of 2000 PSI CWP and has a blowout proof stem made of 316SS and the temperature range of this ball valve is -20F° to 450F°.




Valve Specifications
Sizes Available: 1/4" FNPT
3/8" FNPT
1/2" FNPT
Pressure Rating 2000 WOG
Temperature Range -20°F to 450°F
Valve Materials:
Body A351-CF8M
Ball Retainer A351-CF8M
Ball 316 Stainless Steel
Stem 316 Stainless Steel
Seat 304 Stainless Steel
Thrust Washer 316 Stainless Steel
Seat RTFE
Thrust Washer RTFE
Stem Packing GRAPHOIL
Gland 316 Stainless Steel
Handle 304 Stainless Steel
Handle Nut 304 Stainless Steel
Handle Nut 304 Stainless Steel
Belleville Washer 304 Stainless Steel
PIN 304 Stainless Steel
