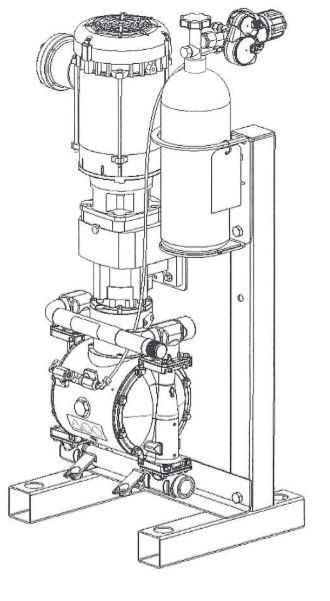

Master Vapor MVP Liquid Recovery Pump
THE NEW LIQUID
- Pumps solvent in liquid state
- Hydrocarbon and ethanol compatible
- C1D1 and 3rd party Certified
- Drastically increases evaporation by
expanding surface area and
creating turbulence - Electric Driven
- FDA Food Grade Compliant
- MADE IN THE USA
Engineering Specifications:
- Maximum pumping outlet pressure - 70 PSI
- Center Section CO2 charge range 5 to 80 PSI
(10-15psi over inlet pressure recommended) - CO2 Inlet Size: 1 /4 in. npt(f)
- Maximum Pump Speed 135 cpm (cycle per minute)
- Process Inlet and Outlet Size: 1 in. npt
- Electric Motor: Explosion proof for C101 Hazardous areas
- Motor Specifications: 2HP, 3,600 rpm, 60Hz
- Size: 18.3” x 15.4” base x 42.3” tall
- Weight: 173.2 lb
All sales final
| Technical Data sheet | ||
|---|---|---|
| US | Metric | |
| Maximum Pumping outlet Pressure | 70 PSI | 0.48 MPa, 4.8 bar |
| Center section CO2 Change range | 6 to 80 PSI | 0.03-0.55 MPa 0.3-5.5 bar |
| Equipment Withstand Pressure | 350 PSI | 2.41 MPa, 24.1 bar |
| Maximum CO2 Consumption | <0.2 scfh | <0.006 cubic meters/hour |
| CO2 inlet size | 1/4 in. npt(f) | |
| Maximum Pump Speed | 135 cpm | |
| Process intel and outlet size | 1 in. npt | |
| Model MVP Liquid, 3 ph, Inverter Rated | ||
| Power | 2 HP | 1.5kW |
| Speed | 3600 rp, (60 Hz) | |
| Gear Ratio | 25.85 | |
| Voltage | 1-phase 208-230/460V | |
| Maximum Amperaage Load | 5.2 A (230V / 2.6 A (460V) | |
| Model MVP Liquid 1PH | ||
| Power | 2 HP | 1.5kW |
| Speed | 3600 rpm (60 Hz) | |
| Gear Ratio | 25.85 | |
| Maximum Amperaage Load | 5.2 A (115V / 10 A (230V) | |
| Noise Data | ||
| Sound Power (measured per ISO-9614-2 | 88.5 dBa | |
| Sound Pressure {Tested 3.28ft (1m) From Equipment} | 80.5dBa | |
| Materials | ||
| Process Pressure Section and Reed Valves | Stainless Steel | |
| Diaphragms | Standard: FKM Fluoroelastomer Optional:PTFE |
|
| Process Vapor Temperature Range | FKM: -40 to 275 °F (-40 to 135 C) PTFE: +40 to 220 °F 9+4 to 104 C |
|
