Description
At this time, Julabo products are only available for shipping within the United States. Any international orders placed in error will be cancelled and refunded, minus a 5% processing fee.

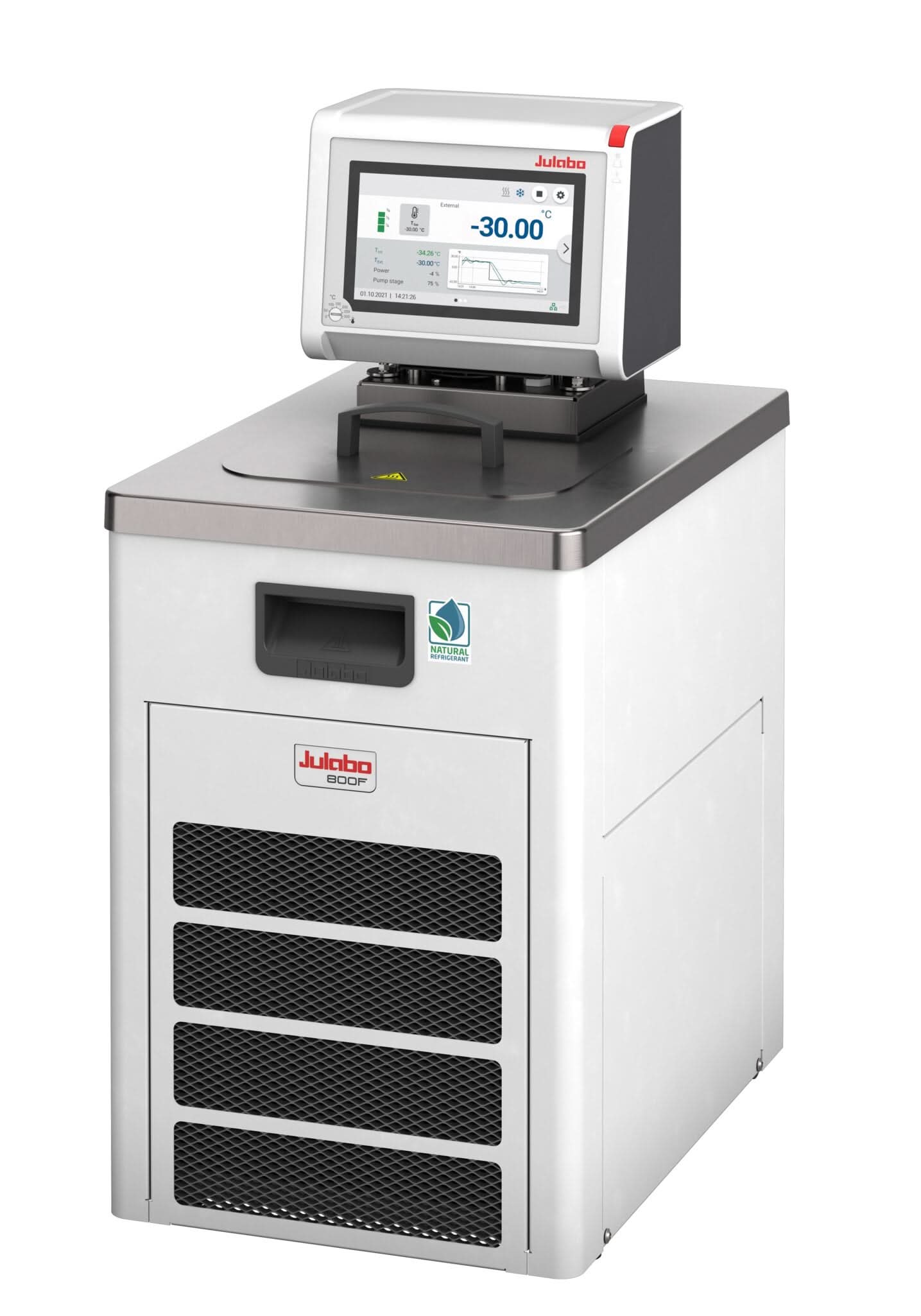

MAGIO MS-800F Benchtop Refrigerated / heating circulator. Range -40…+200 °C with 1 or 2 kW heating power and 860 W cooling power at 20 °C. Adjustable pressure/suction centrifugal pump with 16…31 L/min flow and 3.5…13.3 PSI pressure. USB, Ethernet, RS232/RS485 Communication ports with option to add Analog module.
Product Specifications:- Voltage Version: 115V/60Hz200-230V/50-60Hz
- Heating & Cooling: Both
Both- Working Temp Range (°C): -40...200
-40...200- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Working Temp Range (°C): -40...200
-40...200- Heating Capacity (kW): 1
2- Voltage Version: 115V/60Hz
200-230V/50-60Hz- Power A: 12A
11A- Plug Type: NEMA 5-20P
NEMA 6-20P- Pump Connection: M16x1 male
M16x1 male- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Bath Fill Volume (L): 5...7.5
5...7.5- External Devices:
- Fluid Type: Water, Water/Glycol
Water, Water/Glycol- Heating & Cooling: Both
Both- Dimensions W x L x H (in): 13x18.5x27.6
13x18.5x27.6- Weight (lbs): 93
93 Key Benefits:- MAGIOâ„¢ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
- Easy operation via a large color TFT touchscreen
- Multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging (Modbus TCP/IP incorporated)
- Stakei port for external accessory control (solenoid valve, etc.)
- PID temperature control provides ±0.01 °C stability
- Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi
- Stainless steel bath tank with integrated drain port
- 115V version with 1 kW heating power; 230V version with 2 kW heating power.
- Class III (FL) according to DIN 12876-1. R1270 natural refrigerant with 85g charge. GWP = 2, Carbon dioxide equivalent = 0.00017 t
- Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
