Description
Features:
- NRTL certified to UL/CSA standards
- Circulation chiller with integrated heater
- Colored TFT display for simultaneous indication of actual and set values and graphic illustration of the temperature profile
- Clear text menu navigation
- Fully electronic continuous controller with PID action
- Electronic level indication and low-level alarm
- Powerful pressure pump
- Ethernet (RJ45), USB interface and alarm contact as standard
- Slots for interface modules at the backside of the device
- Upgradeable with two interface modules (analogue module, contact module, RS 232485 module, Profibus)
- Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
- Integrated programmer with max. 150 segments, splitable in 5 programs
- Adjustable bypass for pressure limiting
- Filler opening on top, drain tap on the backside
- SmartCool system for energy-saving digital cooling management including compressor on-off control
- Condenser cooling Air
- Utilizes traditional refrigerants (HFCs)
- Cold-plug socket (C20) for connecting a power cord

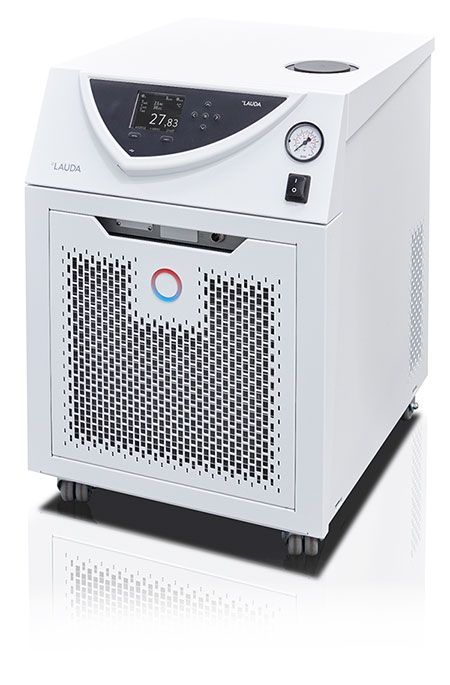

| Product | LAUDA VC 1200 NRTL |
| Power | 200-230V; 50/60 Hz |
| Working temperature max. °C | 80 |
| Working temperature min. °C | -20 |
| Temperature stability ±K | 0.05 |
| Heat discharge cooling unit | Air |
| Heater power max. kW | 1.90 kW @ 200 V / 2,50 kW @ 230 V |
| Cooling output at 20 °C kW | 1.55 kW @ 50 Hz / 1.65 kW @ 60 Hz |
| Pump pressure max. bar | 3.1 bar @ 50 Hz / 4.1 bar @ 60 Hz |
| Pump flow max. L/min | 37 L/min @ 50 Hz / 44 L/min @ 60 Hz |
| Pump connection thread mm | G 3/4 |
| Bath volume min. L | 9.0 |
| Bath volume L | 14.0 |
| Dimensions (WxDxH) mm | 450x550x825 |
| Noise level dB (A) | 59 |
| Weight | 65.0kg / 145 lbs |
| Compliance | CE, NRTL certified to UL/CSA standards |
