Description

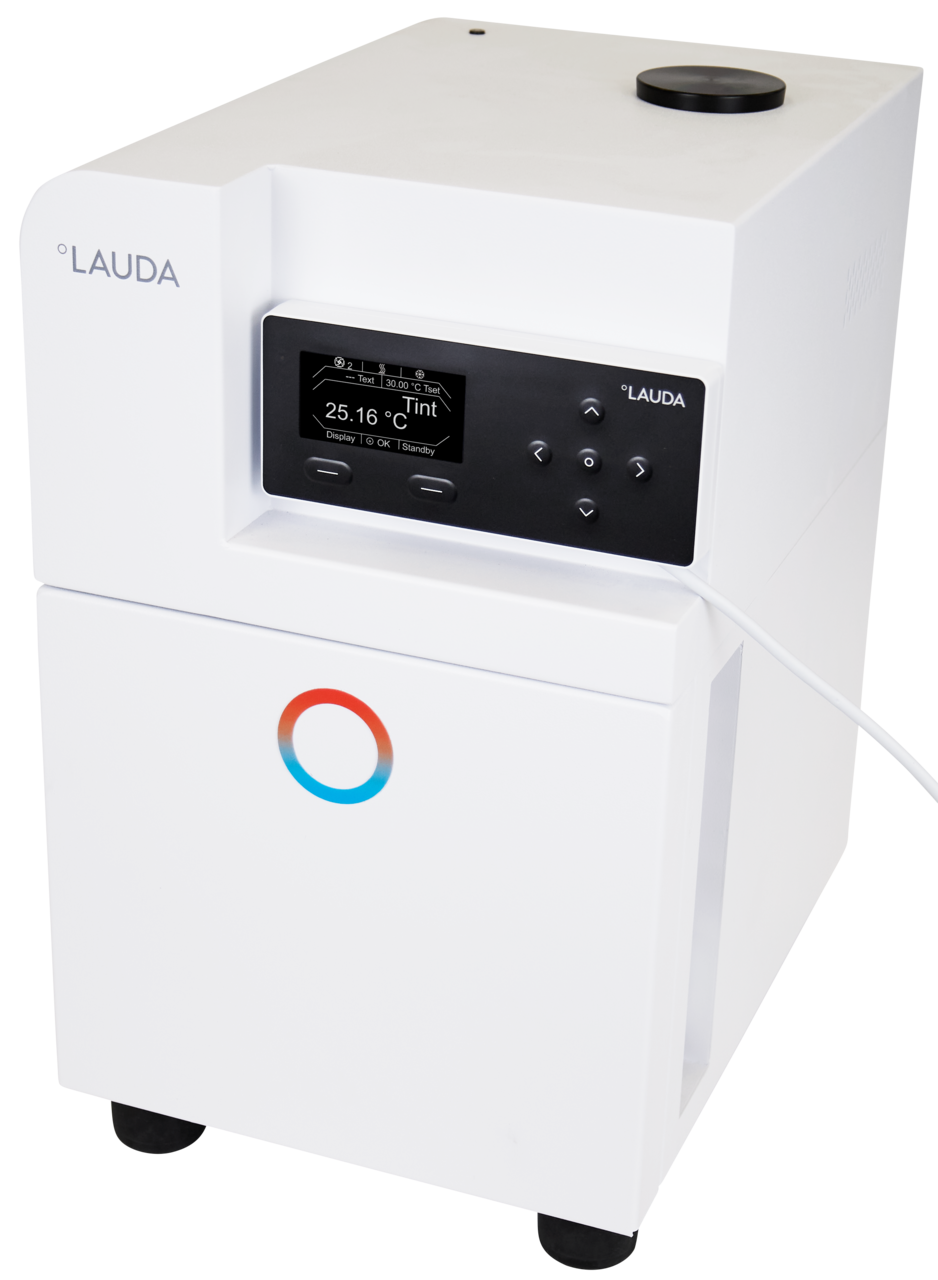

The PRO heating circulation thermostats are designed for external applications up to 250°C. The low filling volume permits rapid heating up in the connected application. The compact construction permits space-saving installation of the thermostats. An integrated cooling coil, fitted as standard, provides cooling. The PRO cooling circulation thermostats are ideal for external applications where rapid temperature changes are required. The cooling output of 0.6 and 0.8 kW, combined with a very low filling volume permit these rapid temperature changes. All types are fitted with a pressure-suction pump. Hybrid cooling of the refrigerating machine permits cooling using ambient air or, in addition, using cooling water.
Operation with Cursor- and Softkeys
Command console can be detached and used as remote control
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Bright and high-contrast graphic OLED display
EasyUse system for simple operation of the whole unit
Tower design with small footprint
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
Fully electronic continuous controller with PID action for internal & external control
Integrated programmer, 1 programme with max. 20 segments
SelfCheck Assistant for system diagnosis
Low filling volume enables rapid changes in temperature
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Features
Thermostatic circulator with latest microprocessor technology. Installed cooling coilOperation with Cursor- and Softkeys
Command console can be detached and used as remote control
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Bright and high-contrast graphic OLED display
EasyUse system for simple operation of the whole unit
Tower design with small footprint
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
Fully electronic continuous controller with PID action for internal & external control
Integrated programmer, 1 programme with max. 20 segments
SelfCheck Assistant for system diagnosis
Low filling volume enables rapid changes in temperature
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
