Description

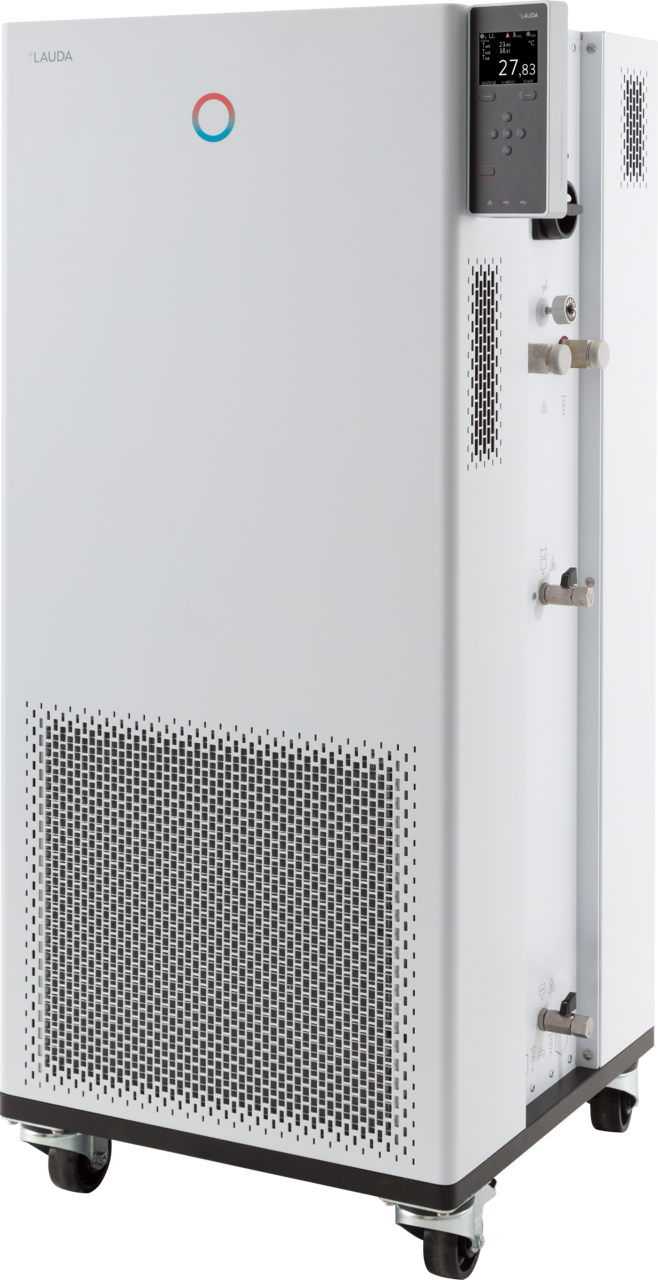

Operate your Integral process thermostat simply via a modern TFT display directly on the device or optionally via an intuitive operating unit with touch display and extended range of functions.
Management of heat transfer liquids with stored properties
Fully electronic continuous controller with PID action for internal & external control
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Port for external Pt100 integrated, second external Pt100 feasible via interface module
Integrated and adjustable bypass
Very small internal volume and big non-thermostated expansion vessel (cold fluid layer system)
Condenser cooling Water
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Self adapt function for determination of control parameters
Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
Remote fault indication through floating contact
Programmer with 150 temperature/time segments that can be separated into 5 programs
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
SelfCheck Assistant for system diagnosis
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Digital display of pump pressure
SmartCool system for energy-saving digital cooling management including compressor on-off control
Features
Process thermostat with integrated cooling system for dynamic temperature control within external circuitsManagement of heat transfer liquids with stored properties
Fully electronic continuous controller with PID action for internal & external control
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Port for external Pt100 integrated, second external Pt100 feasible via interface module
Integrated and adjustable bypass
Very small internal volume and big non-thermostated expansion vessel (cold fluid layer system)
Condenser cooling Water
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Self adapt function for determination of control parameters
Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
Remote fault indication through floating contact
Programmer with 150 temperature/time segments that can be separated into 5 programs
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
SelfCheck Assistant for system diagnosis
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Digital display of pump pressure
SmartCool system for energy-saving digital cooling management including compressor on-off control
