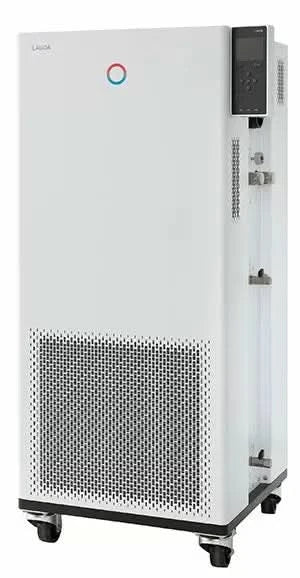

LAUDA Integral IN 750 XT -45 to 220 C Process thermostat

Power Lab Supply 2SKU: LAUDA-IN750

Delivery liftgate service: Please Select
Price:
Sale price$52,689.60 USD
Description
Overview

From -90 to 320 °C: The powerful Integral XT process thermostats use the flow principle with cold oil superimposition. It allows users to use a wide temperature range with one temperature control medium. The electronically controlled, magnetically coupled eight-stage LAUDA Variopump allows the optimum thermal connection of the flow rate both for pressure-sensitive consumers and for applications with high hydraulic resistance. The modular interface concept ensures maximum networking of the user processes.




Features:

  • NRTL certified to UL/CSA standards
  • Flow system
  • Side mounted pump connections
  • Digital interfaces
  • Service friendly housing
  • Permanently mounted operation unit with colored display
  • Optimized hydraulic system (filling volume, pressure drop, expansion volume)
  • Significantly improved flow rates
  • Flow control as accessory
  • Intuitive product set up by automated tools
  • More service friendly due to new design concept
  • Integrated webserver via Ethernet to computer or local LAN
  • PT100 socket and alarm contact for process control
  • USB ports for updating and datalogging
  • Remote control panel Command Touch (accessory)
  • Interface modules RS232, Profibus, Ethercat, etc. for digital communication (accessory)
  • LAUDA IOT Cloud connectivity for online monitoring (accessory, in preparation)

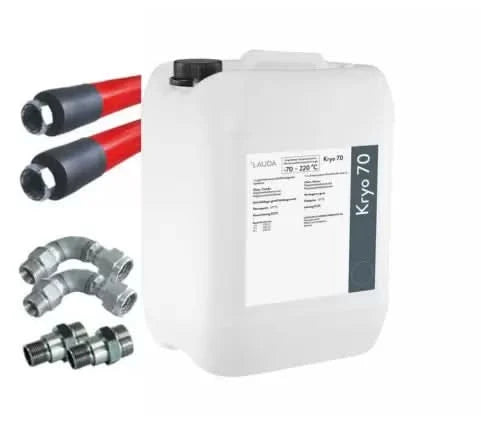

LAUDA IN750 XT adapters, tubing, and fluid for Ai 100L glass reactors

  • P/N LZM 088 x 2; 2m insulated tubing
  • P/N EOV 207 x 2; M30 male to 3/4" NPT male
  • P/N LZB 231 x 5; KRYO 70A  (-70C to 220C)- 10L





LAUDA IN750 XT adapters, tubing, and fluid for Ai 100L stainless steel reactors (no fluid)

  • P/N LZM 088 x 2; 2m insulated tubing
  • P/N UD 663 x 2; M38 female to M30 male adapter
  • P/N EOV 224x 2; M38 male to 1” NPT male
  • P/N LZB 231 x 4; KRYO 70A  (-70C to 220C)- 10L
Specifications
Technical data (according to DIN 12876)
Product LAUDA Integral IN 750 XT
Power 400V; 3/PE; 50Hz & 460V; 3/PE; 60Hz
Working temperature max. °C 220
Working temperature min. °C -45
Temperature stability ±K 0.05
Ambient temperature min. °C 5
Ambient temperature max. °C 40
Application External
Heater power max. kW 8
Cooling output at 200 °C kW 7
Cooling output at 100 °C kW 7
Cooling output at 20 °C kW 7
Cooling output at 10 °C kW 7
Cooling output at 0 °C kW 5.4
Cooling output at -10 °C kW 3.6
Cooling output at -20 °C kW 2.6
Cooling output at -30 °C kW 1.6
Cooling output at -40 °C kW 0.8
Pump pressure max. bar 3.1
Pump flow max. L/min 65
Pump connection thread mm M30 x 1.5
Filling Volume min. L 4.8
Filling Volume max. L 17.2
Interface(s) Ethernet, USB
Dimensions (WxDxH) mm 560x550x1325
Noise level dB (A) 66
Power Consumption kW 12
Weight 176kg /389 lbs
Compliance CE, NRTL certified to UL/CSA standards
