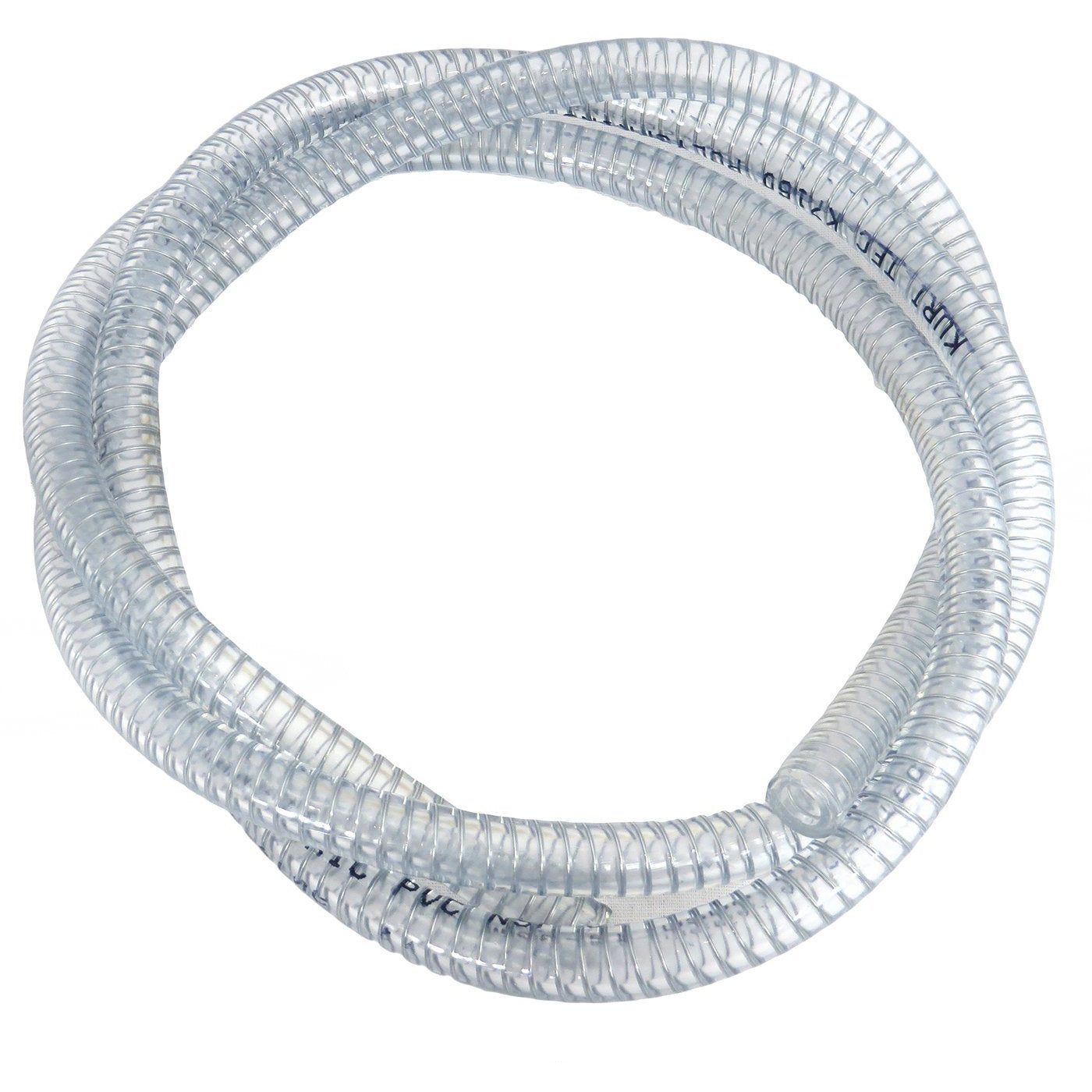

Kuri Tec 1/4" Reinforced Clear PVC Vacuum Hose

Power Lab Supply 1SKU: K7160-04X5

Length: 5 Feet
Price:
Sale price$42.00 USD
Description

1/4" Reinforced Clear PVC Vacuum Hose


Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(18), 3A(01), NSF(13) and RoHS(16) criteria. This hose is reinforced with helically-wound spring steel wire to prevent it from collapsing under a vacuum and prevent kinking or deformation of the tubing.


Key Features:



    • Vacuum Rated to 29.9" HG @ 70°F

    • Spiral wire reinforcement prevents kinking or collapsing and prevent expansion under higher pressure applications

    • Crystal clear tubing allows visual confirmation of product flow

    • Glass smooth interior prevents build-up of material inside the tubing

    • Electrogalvanized helical steel wire can be used for static dissipation. (This product is designed to dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means

    • Resistant to wide range of chemicals

    • Self extinguishing

    • Non-marking

    • Silicone Free

    • One-piece lengths

    • Phthalate Free!


Common Applications:



    • Full Vacuum Lines

    • Industrial Vacuum Pumps

    • Food and beverage dispensing

    • Air and water supply lines

    • Pneumatic parts transfer

    • Car wash applications

    • Coolant lines

    • Air breathing lines

    • Deionized water systems








































































































Specifications
Series K1760
Sized Code 04
Service Temperature Range 25 to 150°F (-4 to 65°C)
Nominal ID 1/4" (6.4mm)
Nominal OD 0.460" (11.7mm)
Max Working Pressure @ 70°F (20°C) 150 Psi
Max Working Pressure @ 122°F (50°C) 70 Psi
Standard Length Coils 100ft
Approx. Wt. per Pkg. 7.0lb
Brand Kuri Tec®
Packaging Coils
Material NSF-51
Applications / Materials Conveyed

Air and Water supply lines


Air breathing lines


Car Wash Applications


Coolant Lines


Deionized Water Systems


Food & Beverage dispensing


Full Vacuum Lines


Industrial Vacuum Lines


Pneumatic Parts Transfer

Min. Bend Radius @ 70°F 1"
Type Reinforced Water Supply and Food Grade Hose
Style Standard Wall PVC Food and Beverage Vacuum/Transfer Hose
Inside Tube Material Crystal Clear Phthalate Free PVC Compound
Cover Material Crystal Clear Phthalate Free PVC Compound
Reinforcement Material Helically-wound spring steel wire
Color Crystal Clear
Medium Temperature(Min) 25°F (-4°C)
Medium Temperature(Max) 150°F (65°C)
Weight per Foot 0.07lbs/ft
Performance Clear PVC wire reinforced for vacuum; Kink Resistant
