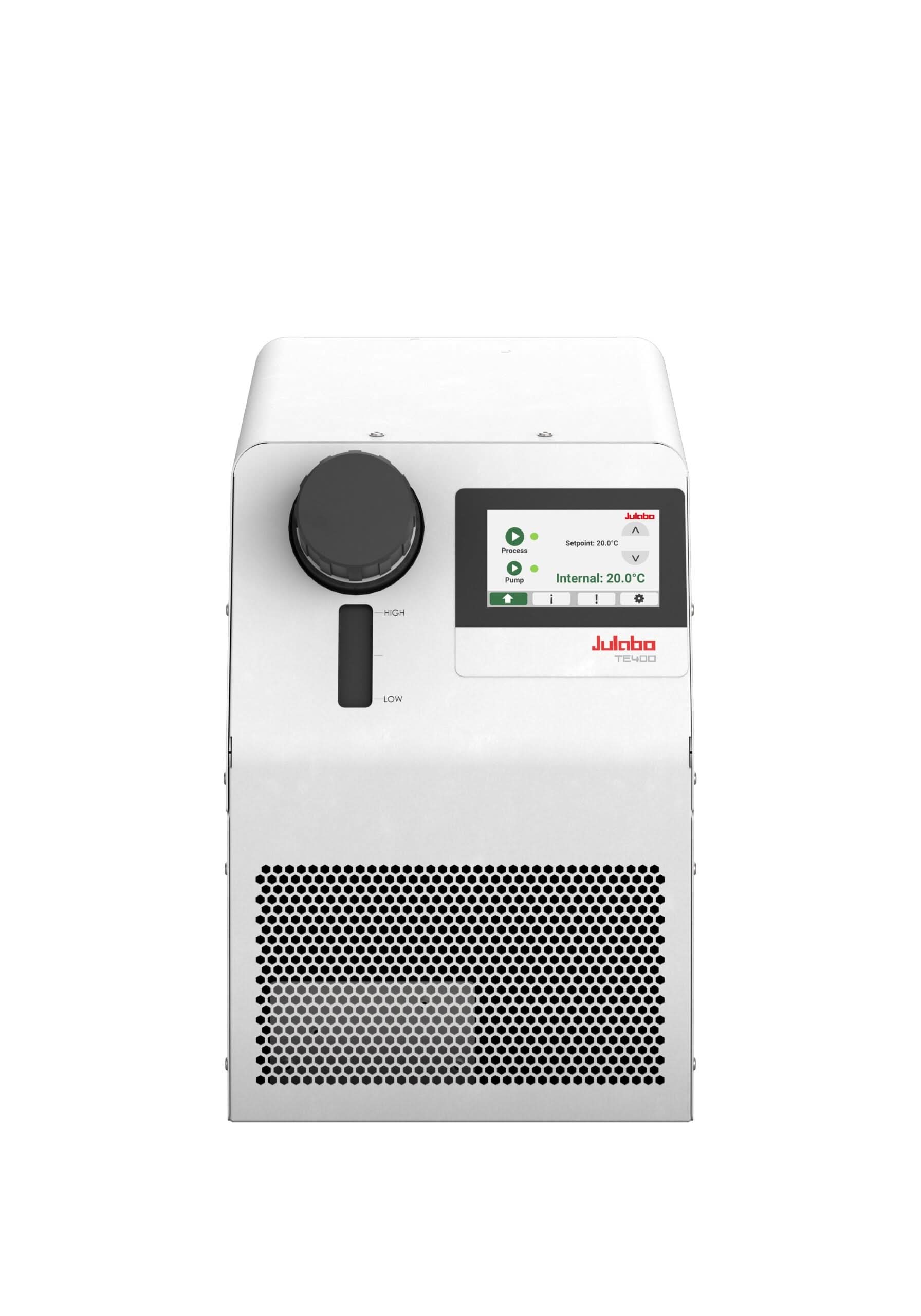

Julabo TE400

TE400 Benchtop Peltier Chiller. Range -5…+40 °C with 450 W heating power and 400 W cooling power at 20 °C. Pressure pump with 7 L/min flow and 17.4 PSI pressure. RS232 Communication port.

• Voltage Version: 100-230V/50-60Hz
• Heating & Cooling: Both
• Working Temp Range (°C): -5...40
• PCF Pressure (psi): 17.4
• PCF Rate (l/min): 7
• Working Temp Range (°C): -5...40
• Heating Capacity (kW): 0.45
• Voltage Version: 100-230V/50-60Hz
• Power A: 5A
• Plug Type: NEMA 5-15P
• Pump Connection:
• PCF Pressure (psi): 17.4
• PCF Rate (l/min): 7
• Bath Fill Volume (L): 1
• External Devices: Remote Control
• Fluid Type: water, water/glycol
• Heating & Cooling: Both
• Dimensions W x L x H (in): 10.8x16.3x15.7
• Weight (lbs): 53

• Peltier chillers are suitable for temperature applications with circulation to an external apparatus
• Efficient laboratory cooling without a refrigerant
• Easy operation via a large color TFT touchscreen
• Multi-lingual interface
• RS232 connection for external PC control (requires a straight RS232 cable)
• ATC calibration
• ATC calibration / temperature offset ability
• Pressure/suction pump capacity of 7 L/min with pressure to 17.4 psi
• 1 L internal tank volume
• 100-230V/50-60Hz universial voltage
• Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
• NRTL marked for US and Canada
• UKCA and CE marked
