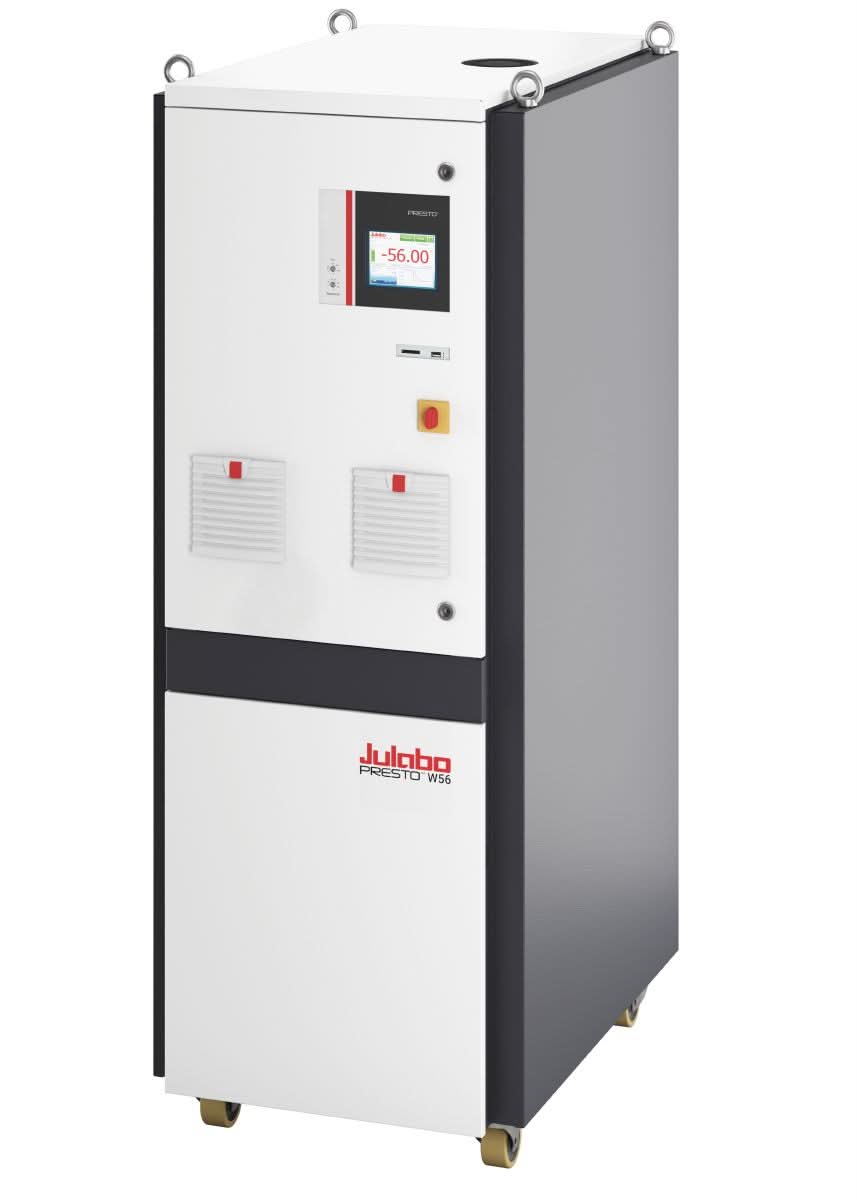

Julabo PRESTO W56x

PRESTO W56x water-cooled highly dynamic temperature control unit. Range -56…+250 °C with 27 kW heating power and 25.8 kW cooling power at 20 °C. Gear pump 18…70 L/min; 11.6…79.8 PSI. Cooling capacities listed with 1:1 ethylene glycol/water mixtures at maximum pump speed.

• Voltage Version: 480V/3PPE/60Hz
• Refrigerant: R449A
• Heating & Cooling: Both
• Working Temp Range (°C): -56...250
• PCF Pressure (psi): 1.5…79.8
• PCF Rate (l/min): 0...70
• Working Temp Range (°C): -56...250
• Heating Capacity (kW): 27
• Voltage Version: 480V/3PPE/60Hz
• Power A: 40A
• Plug Type:
• Pump Connection: M38x1.5 male
• PCF Pressure (psi): 1.5…79.8
• PCF Rate (l/min): 0...70
• Bath Fill Volume (L):
• External Devices: Pt100|Remote Control
• Fluid Type: silicone, fluorinert/galden, water/glycol
• Heating & Cooling: Both
• Dimensions W x L x H (in): 23.6 x 37 x 64.6
• Weight (lbs): 849
• Refrigerant: R449A

• Powerful circulating pumps, electronically adjustable in stages or by setting the pressure value. Choose between a magnetically coupled centrifugal pump or a magnetically coupled gear pump for pressures up to 5.5 bar and virtually constant flow rate at any pressure
• Integrated 5.7” industrial color touchscreen displays all essential information and enables simple fingertip control
• Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
• ICC cascade control for extraordinary precision, temperature stability ±0.05 °C ... ±0.2 °C
• Ambient temperature range +5 °C to +40 °C
• Integrated programmer with real-time clock
• Filling level indicator and pump capacity displayed electronically
• Interface for SD memory card
• Connections for USB, Ethernet, RS232, and Alarm output
• Integrated Modbus
• Optional analog connections, RS485, Profibus DP
• 1-stage water-cooled refrigeration system
• Sealed design enables operation to 150 °C with glycol/water and accessories
