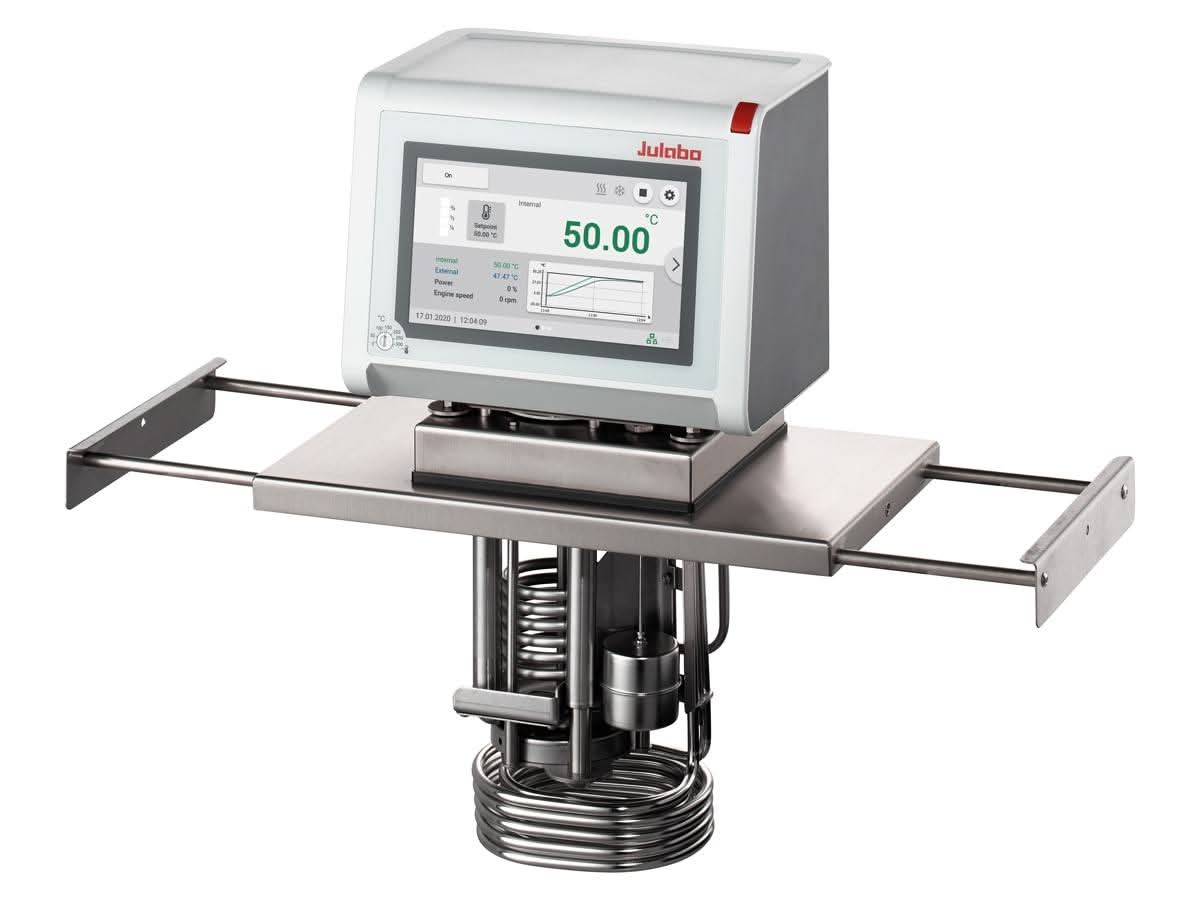

Julabo MAGIO MX-Z

MAGIO MX-Z Bridge mounted heating circulator with immersion depth of 200mm (7.9″) and extendable bridge (33 to 68 cm; 13″ to 26.7″) for any bath tank up to 100 liters with 3 kW heating power to +300 °C. Large, color touchscreen UI with built-in help functions. For internal and external temperature applications. Includes Intelligent Cascade Control, self optimizing for optimum results with settings for band limit, limit setting, co-speed factor and control dynamics. A variable speed pressure / suction pump provides strong circulation for internal or external applications. A built-in cooling coil enables counter cooling with tap water. Barbed fittings for 8 and 12 mm ID tubing are included (pump connections M16x1 male). Includes Pt100 connection for external monitoring and control, electronically adjustable pressure/suction pump, RS232/RS285, USB and Ethernet ports with optional slot for analog communication (requires module 9900100). Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Class III (FL) according to DIN 12876-1.

• Heating & Cooling: Heating
• Working Temp Range (°C): 20...300
• PCF Pressure (psi): 3.5...13.3
• PCF Rate (l/min): 16...31
• Working Temp Range (°C): 20...300
• Heating Capacity (kW): 3
• Cooling Capacity:
• Power A: 15A
• Plug Type:
• Pump Connection: M16x1 male
• PCF Pressure (psi): 3.5...13.3
• PCF Rate (l/min): 16...31
• Bath Fill Volume (L):
• External Devices: Pt100|Remote Control
• Fluid Type: water, silicone
• Heating & Cooling: Heating
• Dimensions W x L x H (in): 13.4 x 7.5 x 16.1
• Weight (lbs): 16.8

• TFT Color Touchscreen
• Multilingual
• Input for setpoints, warning/safety values and menu functions
• ICC (Intelligent Cascade Control), self-optimizing temperature control
• ATC3 3-Point-Calibration
• Pt100 External sensor connection for measurement and control
• Continuously variable pressure/suction pump
• Early warning system for low liquid level (DBGM 203 06 059.8)
• Adjustable high temperature cut-out, visible via display
• RS232/RS485, USB and Ethernet interface for online communication
• Integrated programmer
• Expandable bridge from 31 to 66 cm
• Built-in cooling coil
