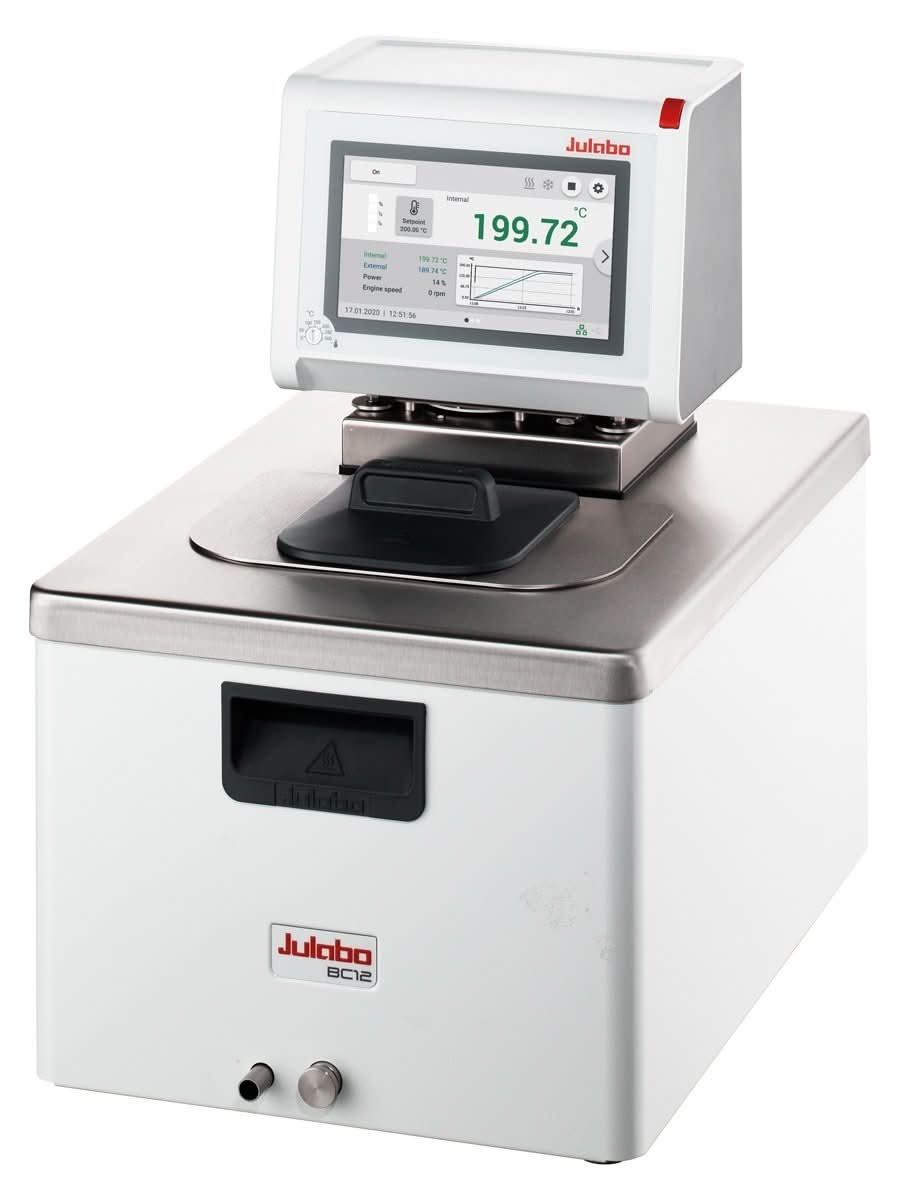

MAGIO MX-BC12 heating circulator with 12L bath tank and lid with 3 kW heating power to +300 °C. Large, color touchscreen UI with built-in help functions. For internal and external temperature applications. Includes Intelligent Cascade Control, self optimizing for optimum results with settings for band limit, limit setting, co-speed factor and control dynamics. An variable speed pressure / suction pump provides strong circulation for internal or external applications. A built-in cooling coil enables counter cooling with tap water. Barbed fittings for 8 and 12 mm ID tubing are included (pump connections M16x1 male). Includes Pt100 connection for external monitoring and control, electronically adjustable pressure/suction pump, RS232/RS285, USB and Ethernet ports with optional slot for analog communication (requires module 9900100). Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Class III (FL) according to DIN 12876-1.
Product Specifications:- Voltage Version: 200-230V/50-60Hz200-230V/3PPE/60Hz
- HST Booster: Yes
Yes- Heating & Cooling: Heating
Heating- Working Temp Range (°C): 20...300
20...300- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Working Temp Range (°C): 20...300
20...300- Heating Capacity (kW): 3
9- Cooling Capacity:
- Voltage Version: 200-230V/50-60Hz
200-230V/3PPE/60Hz- Power A: 15A
28A- Plug Type:
- Pump Connection: M16x1 male
M16x1 male- HST Booster: Yes
Yes- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Bath Fill Volume (L): 8.5…12
- External Devices: Pt100|Remote Control
Pt100|Remote Control- Fluid Type: water, silicone
water, silicone- Heating & Cooling: Heating
Heating- Dimensions W x L x H (in): 18 x 19.3 x 18.5
- Weight (lbs): 32.2
Key Benefits:- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in cooling coil and drain tap
