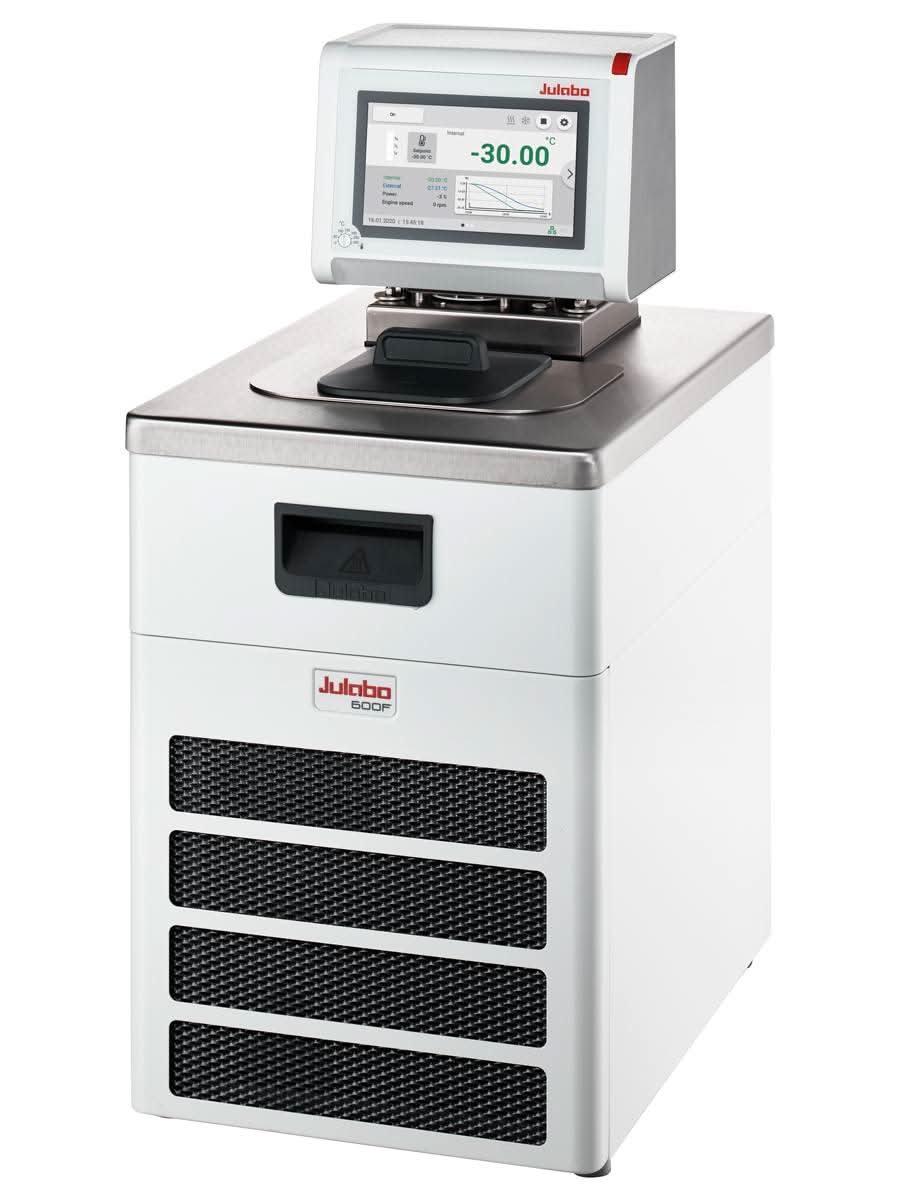

MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.
Class III (FL) according to DIN 12876-1.
- Voltage Version: 100V-115V/50-60Hz200-230V/50-60Hz
- HST Booster: No
Yes- Refrigerant: R449A
R449A- Heating & Cooling: Both
Both- Working Temp Range (°C): -35...200
-35...200- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Working Temp Range (°C): -35...200
-35...200- Heating Capacity (kW): 1
2- Voltage Version: 100V-115V/50-60Hz
200-230V/50-60Hz- Power A: 12A
16A- Plug Type:
- Pump Connection: M16x1 male
M16x1 male- HST Booster: No
Yes- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Bath Fill Volume (L): 5…7.5
5…7.5- External Devices: Pt100|Remote Control
Pt100|Remote Control- Fluid Type: water, silicone, water/glycol
water, silicone, water/glycol- Heating & Cooling: Both
Both- Dimensions W x L x H (in): 13 x 18.5 x 27.2
13 x 18.5 x 27.2- Weight (lbs): 84.4
84.4- Refrigerant: R449A
R449A Key Benefits:- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
