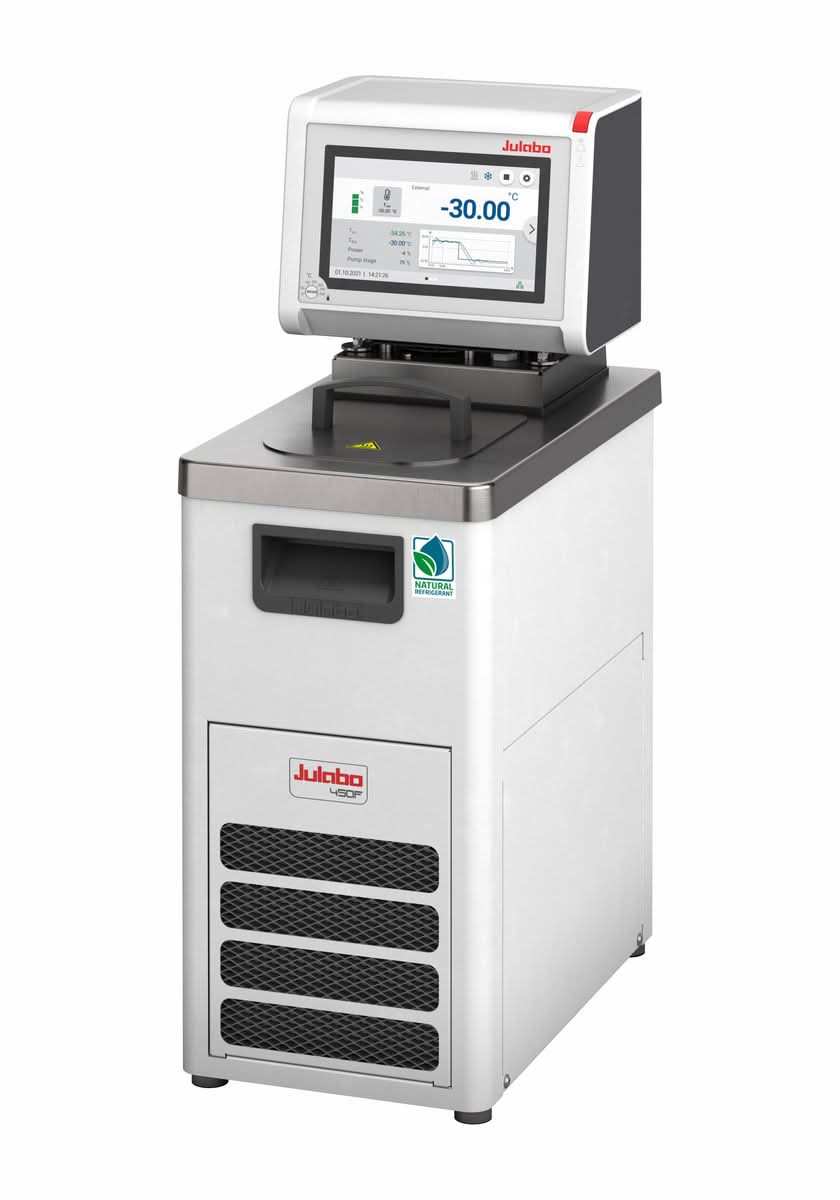

MAGIO™ MS-450F refrigerated/heating circulator with an operating range of -30…+200°C with ±0.01 °C stability; cooling power 460W at 20 °C and 70W at -30 °C. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Analog module accessory available (9900100). Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. 3-4L stainless steel bath tank with integrated drain port. Options for heating power (1kW or 2kW) and refrigerant (R290 natural refrigerant or R449A synthetic refrigerant).
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Product Specifications:- Voltage Version: 115V/60Hz200-230V/50-60Hz115V/60Hz200-230V/50-60Hz
- Refrigerant: R290
R290R449AR449A- Heating & Cooling: Both
BothBothBoth- Working Temp Range (°C): -30...200
-30...200-30...200-30...200- PCF Pressure (psi): 3.5...13.3
3.5...13.33.5...13.33.5...13.3- PCF Rate (l/min): 16...31
16...3116...3116...31- Working Temp Range (°C): -30...200
-30...200-30...200-30...200- Heating Capacity (kW): 1
212- Voltage Version: 115V/60Hz
200-230V/50-60Hz115V/60Hz200-230V/50-60Hz- Power A: 12A
14A12A14A- Plug Type:
- Pump Connection: M16x1 male
M16x1 maleM16x1 maleM16x1 male- PCF Pressure (psi): 3.5...13.3
3.5...13.33.5...13.33.5...13.3- PCF Rate (l/min): 16...31
16...3116...3116...31- Bath Fill Volume (L): 3…4
3…43…43…4- External Devices: Pt100|Remote Control
Pt100|Remote ControlPt100|Remote ControlPt100|Remote Control- Fluid Type: water, water/glycol
water, water/glycolwater, silicone, water/glycolwater, silicone, water/glycol- Heating & Cooling: Both
BothBothBoth- Dimensions W x L x H (in): 9.1 x 15.7 x 25.6
9.1 x 15.7 x 25.69.1 x 15.7 x 25.69.1 x 15.7 x 25.6- Weight (lbs): 64
646464- Refrigerant: R290
R290R449AR449A Key Benefits:- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
- Class III (FL) according to DIN 12876-1
