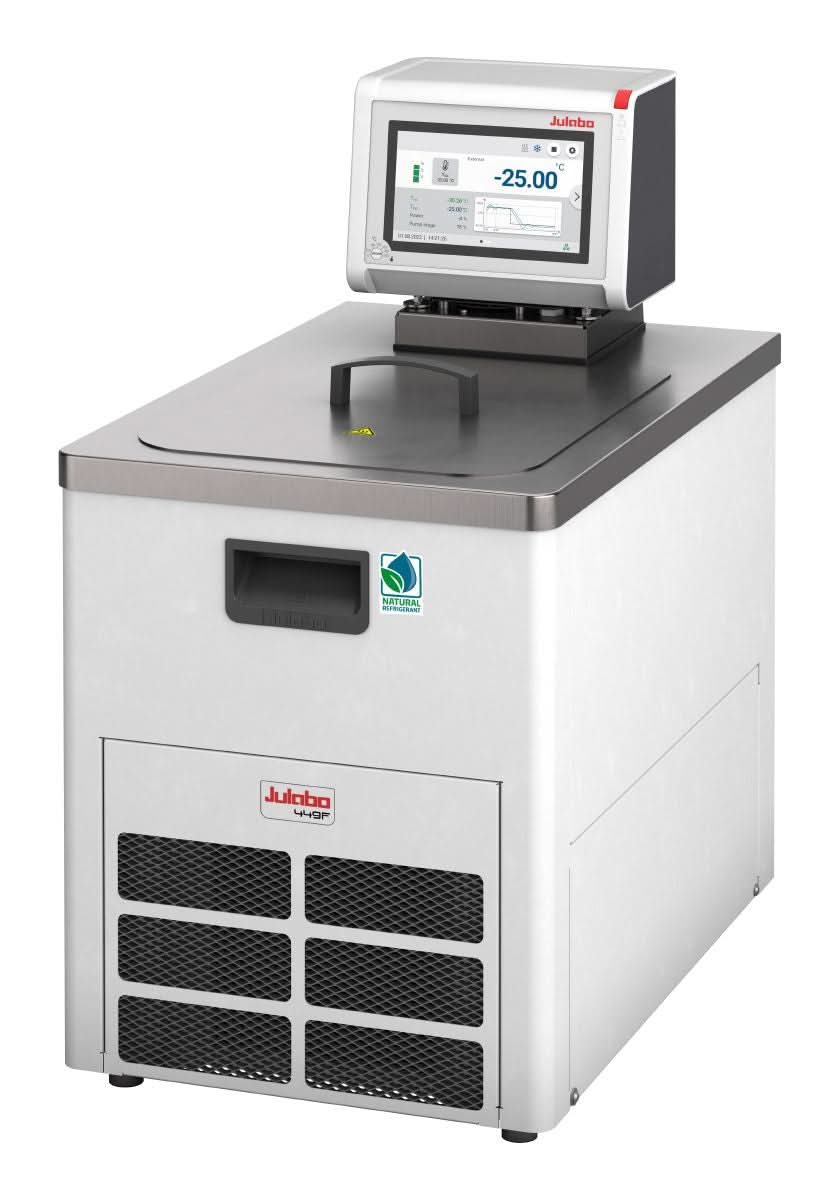

MAGIO™ MS-449F refrigerated/heating circulator with an operating range of -32…+200°C with ±0.01 °C stability; cooling power 460W at 20 °C and 80W at -30 °C. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Analog module accessory available (9900100). Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. 3-4L stainless steel bath tank with integrated drain port. Options for heating power (1kW or 2kW). R290 natural refrigerant.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Product Specifications:- Voltage Version: 115V/60Hz200-230V/50-60Hz
- Refrigerant: R290
R290- Heating & Cooling: Both
Both- Working Temp Range (°C): -30...200
-30...200- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Working Temp Range (°C): -30...200
-30...200- Heating Capacity (kW): 1
2- Voltage Version: 115V/60Hz
200-230V/50-60Hz- Power A: 12A
13A- Plug Type:
- Pump Connection: M16x1 male
M16x1 male- PCF Pressure (psi): 3.5...13.3
3.5...13.3- PCF Rate (l/min): 16...31
16...31- Bath Fill Volume (L): 21…30
21…30- External Devices: Pt100|Remote Control
Pt100|Remote Control- Fluid Type: water, water/glycol
water, water/glycol- Heating & Cooling: Both
Both- Dimensions W x L x H (in): 14.6 x 23.2 x 27.2
14.6 x 23.2 x 27.2- Weight (lbs): 93
93- Refrigerant: R290
R290 Key Benefits:- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
- Class III (FL) according to DIN 12876-1
