As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. These devices provide extra powerful pressure and suction pumps and have an incredibly high heating output of 3 kW, enabling even more dynamic temperature control for external applications.

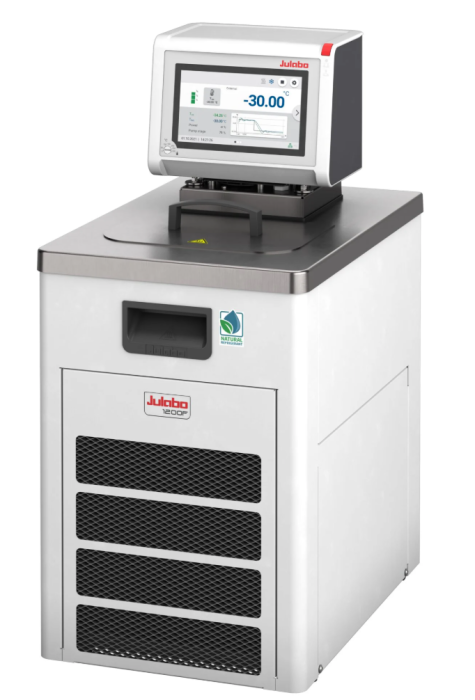

MAGIO MS-1200F Benchtop Refrigerated / heating circulator. Range -50…+200 °C with 1 or 2 kW heating power and 1.26 kW cooling power at 20 °C. Adjustable pressure/suction centrifugal pump with 16…31 L/min flow and 3.5…13.3 PSI pressure. USB, Ethernet, RS232/RS485 Communication ports with option to add Analog module.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
High resolution TFT touch display
The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.
Product features
- MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
- Easy operation via a large color TFT touchscreen
- Multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging (Modbus TCP/IP incorporated)
- Stakei port for external accessory control (solenoid valve, etc.)
- PID temperature control provides ±0.01 °C stability
- Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi
- Stainless steel bath tank with integrated drain port
- 115V version with 1 kW heating power; 230V version with 2 kW heating power.
- Class III (FL) according to DIN 12876-1. R1270 natural refrigerant with 85g charge. GWP = 2, Carbon dioxide equivalent = 0.00017 t
- Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
| Working Temp Range | -50...200 °C | -50...200 °C |
| Heating Capacity | 1 kW | 2 kW |
| Voltage Version | 115V/60Hz | 208-230V/50-60Hz |
| Power | 12A | 11A |
| Plug Type | NEMA 5-20P | NEMA 6-20P |
| Pump Connection | M16x1 male | M16x1 male |
| PCF Pressure | 3.5...13.3 psi | 3.5...13.3 psi |
| PCF Rate | 16...31 l/min | 16...31 l/min |
| Bath Fill Volume | 5...7.5 L | 5...7.5 L |
| External Devices | — | — |
| Fluid Type | Water, Water/Glycol | Water, Water/Glycol |
| Heating & Cooling | Both | Both |
| Dimensions (W x L x H) | 13 x 18.5 x 27.6 in | 13 x 18.5 x 27.6 in |
| Weight | 93 lbs | 93 lbs |
| Refrigerant | R1270 | R1270 |
Cooling Capacity
| °C | -40 | -30 | -20 | 0 | 20 |
| kW | 0.22 | 0.39 | 0.64 | 1.11 | 1.26 |
