HT30-M1

At this time, Julabo products are only available for shipping within the United States. Any international orders placed in error will be cancelled and refunded, minus a 5% processing fee.

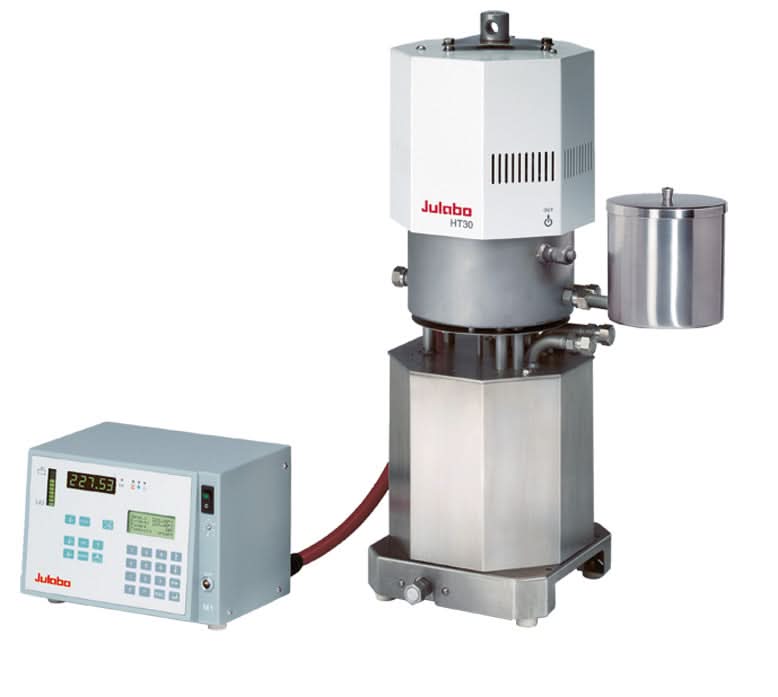

JULABO Forte HT Highly Dynamic Heating Temperature Control Systems for external applications with working temperatures up to +400 °C with either 3 kW heating power (HT30) or 6 kW heating power (HT60). A small internal bath volume enables rapid heat up times and fast compensation for external events, such as endotherms or exotherms. Hydaulically sealed construction prevents oil fumes even at high temperatures. Systems incorporate automatic heat-up and cracking protection to ensure long lifetime of the bath fluid. The filling system automatically purges the external fluid circuit of air.
Units equipped with the “C.U.” provide powerful cooling with tap water – up to 15 kW of cooling power at temperatures >200 °C.
Typical applications: reactors, autoclaves, distillation columns, miniplant installations, pilot plants and production facilities.
Caution: Use only with JULABO Thermal H350 bath fluid (8940111).

• Voltage Version: 230V/60Hz
• Heating & Cooling: Heating
• Working Temp Range (°C): 70...400
• PCF Pressure (psi): 11.6...17.4
• PCF Rate (l/min): 14...18
• Working Temp Range (°C): 70...400
• Heating Capacity (kW): 3
• Cooling Capacity:
• Voltage Version: 230V/60Hz
• Power A: 15A
• Plug Type:
• Pump Connection: M16x1 male
• PCF Pressure (psi): 11.6...17.4
• PCF Rate (l/min): 14...18
• Bath Fill Volume (L):
• External Devices: External Temp Probe|Remote Control
• Fluid Type: other
• Heating & Cooling: Heating
• Dimensions W x L x H (in): 9.1 x 9.1 x 22.8
• Weight (lbs): 59

• Working temperature range up to 400 °C
• Self-optimizing ICC temperature controller
• Strong pumping capacity 18 l/min - 1.2 bar max
• Automatic air-purge allows easy filling
• Automated heat-up feature adjusts to external systems
• Bright MULTI-DISPLAY (LED) with display resolution 0.01 °C
• Backlit interactive 4-line LCD display
• On-line communication via built-in RS232 interface
• Stand-by input for external emergency switch-off
• Integrated programmer stores up to 6 profiles (60 sections each)
• Electronic level indication
• ATC function for simple correction of temperature variations
• ATC function allows use as testing instrument according to ISO 9000
