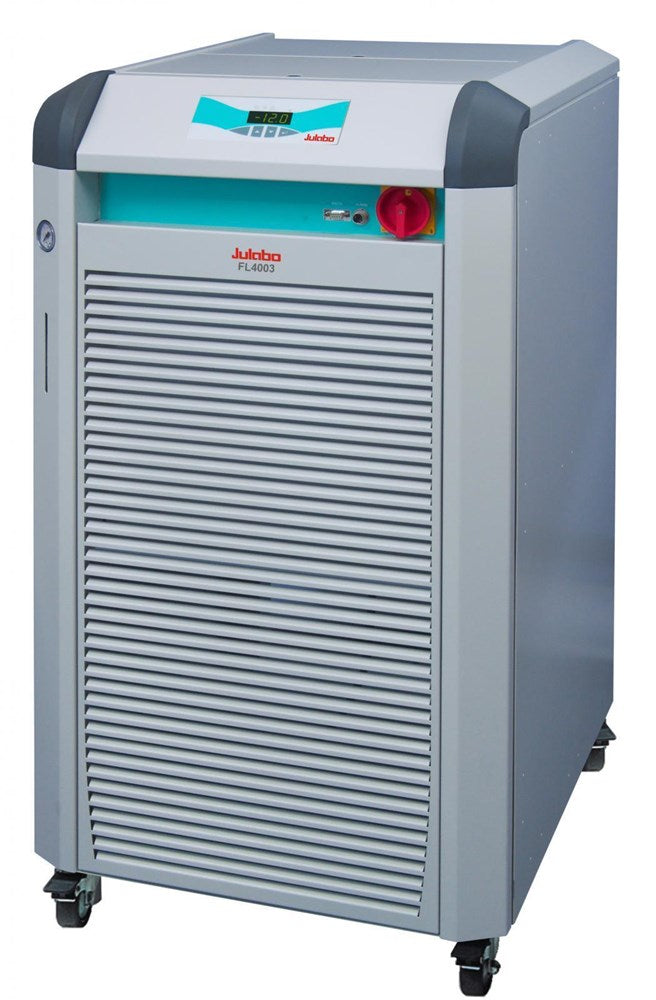

Julabo FL4003
The FL series of chillers for routine cooling applications for the laboratory and industry. The PID control provides a temperature stability of ±0.5°C. All units can be cleaned easily and have a water-proof keypad with LED temperature indication. All instruments include an RS232 interface and alarm shutdown on the front of the units. The filling port is easily accessible from the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows for easy cleaning of the condenser with the drain tap accessible behind the grid. All models include a visible level indication. Air-cooled units have venting slots are on the front and rear enabling installation next to a wall or another apparatus (space saving).
Specifications | |
---|---|
Order No. | 9663040 |
Model Series | FL Series |
Category |
Recirculating Coolers |
Working Temperature Range (°C) | -20 ... +40 |
Temperature Stability (°C) | ±0.05 |
Display Resolution | 0.01 °C |
Temperature Display | LED |
Cooling capacity (Medium Ethanol) |
°C 20 0 -10 -20 kW 4 2.4 1.5 0.65 |
Pump capacity Flow Rate (l/min) | 40 |
Pump Capacity Flow Pressure (psi) | 7.25...43.51 |
Pump Connections | G3/4" |
Barbed fittings diameter (inner dia. / mm) | 3/4" |
Filling Volume Liters | 24 ... 30 |
Refrigerant stage 1 |
R452A |
Filling volume refrigerant stage 1 (g) | 2220 |
Global Warming Potential for | 2140 |
Carbon dioxide equivalent stage 1 (t) | 4.751 |
Digital Interface | RS232, Optional Profibus |
Ambient Temperature | 5...40 °C |
Dimensions W x L x H (inch) | 23.6 x 29.9 x 45.3 |
Weight (LBS) | 271 |
Noise Level (dBA) | 67 |
Description | Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids |
Included with | 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male) |
Cooling of Compressor | Air |
Available Voltage Versions | -400 V / 3 Ph. / 50 Hz -230 V / 3 Ph. / 60 Hz |
