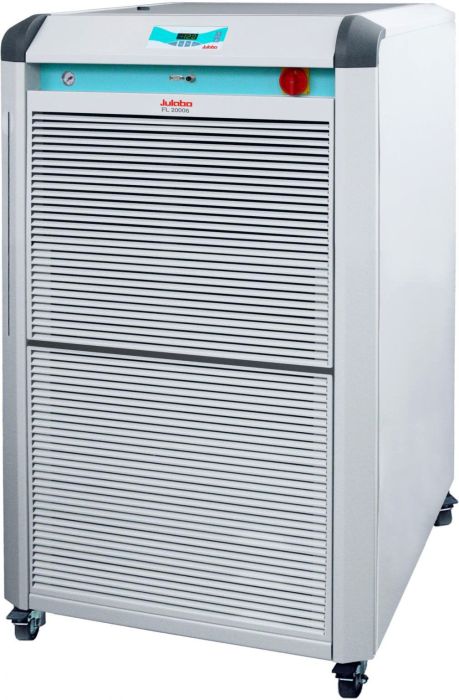

The Julabo FL series offers a new generation of chillers for routine cooling applications within the laboratory and industry. The temperature stability of the PID control is 0.5C. All units can easily be cleaned and are provided with a splash water proof keypad with LED temperature indication. On the front of the units there is an RS232 interface as well as an alarm shutdown. The filling port is easily accessible placed on the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows an easy cleaning of the condenser, the drain tap is easily accessible behind the grid. All models include an easily visible level indication. Another advantage is the venting slots are on the front and rear and therefore the units can be placed directly one beside the other (space saving).
FL20006 features
- Ergonomic design and easy operation
- Splash-proof keypad
- Large, bright LED display
- Reliable Microprocessor PID temperature control
- Filling level indicator
- Powerful immersion pumps, suitable for continuous operation
- Permissible temperature in return line +80°C
- Easy filling from the top with hinged protective lid
- Low liquid level protection with optical and audible alarm signal
- Integrated stainless steel bath tanks
- Removable venting grid for cleaning of the condenser
- Front drain
- No side vents
- RS232 interface for PC-connection
- IP class according to IEC 60529: 21
- Alarm output, potential-free change-over contact (max. 30 VA)
- Pressure Indicator
- By-pass valve to adjust pump pressure
- Air cooled
Julabo FL20006 package with adapters for dual Ai 50L rotovaps (P/N: 9666200.16 AI FL20006 NOFLUID dual 50L roti)
- QTY1. Pair, G 1 ¼” f to M16x1 m adapter
- QTY2. Twin distributing adapter M16x1 f to 2x M16x1 m
- QTY2. Pair, barb fittings for 10 mm tubing
Julabo FL20006 package with adapters and fluid for dual Ai 50L rotovaps (P/N: 9666200.16 AI FL20006 dual 50L roti)
- QTY1. Pair, G 1 ¼” f to M16x1 m adapter
- QTY2. Twin distributing adapter M16x1 f to 2x M16x1 m
- QTY2. Pair, barb fittings for 10 mm tubing
- QTY2. Thermal EG, 10L
- QTY1. Thermal EG, 5L
Julabo FL20006 package with adapters for four Ai 20L rotovaps (P/N: 9666200.16 AI FL20006 NOFLUID 4x 20L roti)
- QTY1. Pair, G 1 ¼” f to M16x1 m adapter
- QTY1. Quad Distributing Adapters, M16x1, pair with barbed fittings for 8mm, 12mm, or 1/2" ID tubing
- QTY4. Pair, barb fittings for 10 mm tubing
Julabo FL20006 package with adapters and fluid for four Ai 20L rotovaps (P/N: 9666200.16 AI FL20006 4x 20L roti)
- QTY1. Pair, G 1 ¼” f to M16x1 m adapter
- QTY1. Quad Distributing Adapters, M16x1, pair with barbed fittings for 8mm, 12mm, or 1/2" ID tubing
- QTY4. Pair, barb fittings for 10 mm tubing
- QTY2. Thermal EG, 10L
- QTY1. Thermal EG, 5L
