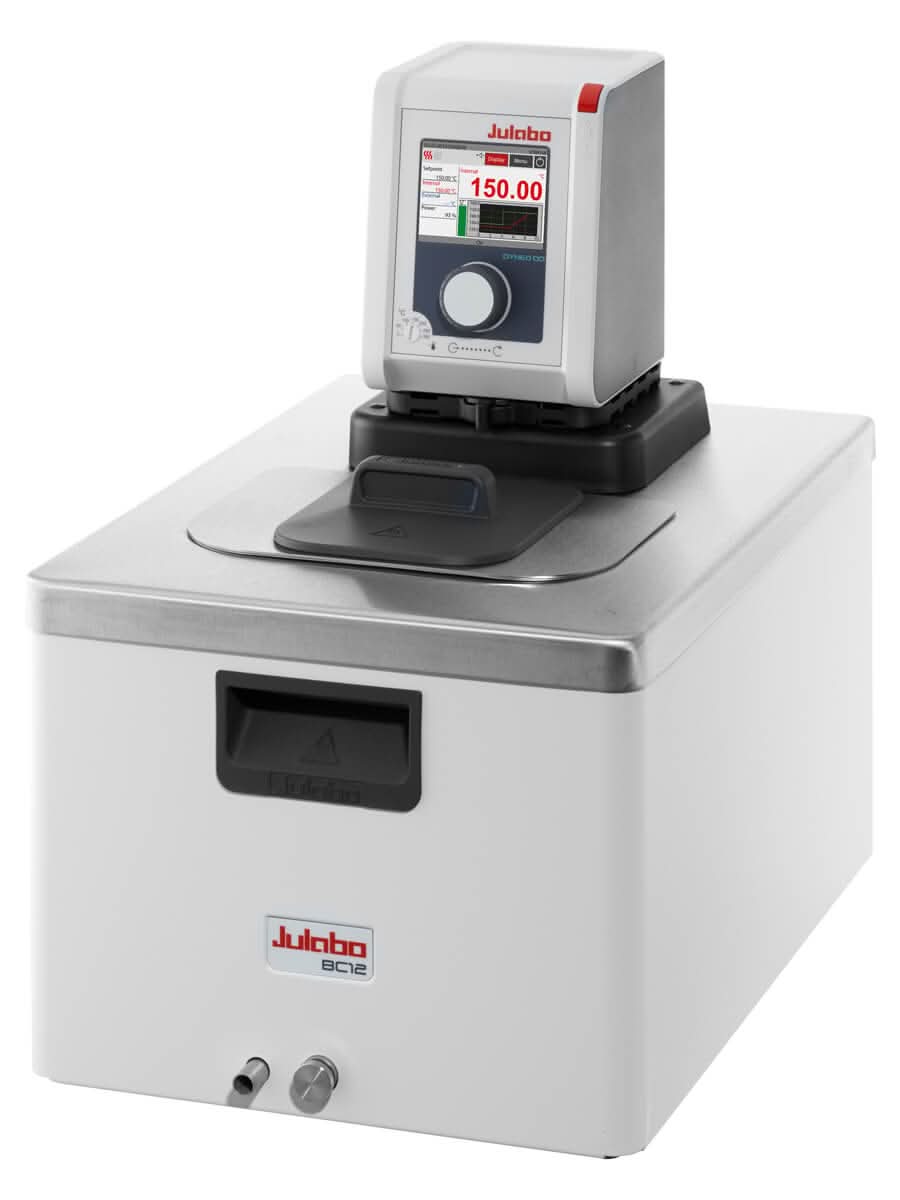

DYNEO™ heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank for temperatures to 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated drain valve. Color TFT display with central rotary knob controller, multi-lingual interface, integrated programmer, Pt100 port for external temperature control. USB connection for external PC control and data-logging; Digital option includes RS232 port; analog option includes analog interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Class III (FL) according to DIN 12876-1.
Product Specifications:- Voltage Version: 100V-115V/50-60Hz100V-115V/50-60Hz100V-115V/50-60Hz200-230V/50-60Hz200-230V/50-60Hz200-230V/50-60Hz
- Interface: Base
AnalogDigitalBaseAnalogDigital- Heating & Cooling: Heating
HeatingHeatingHeatingHeatingHeating- Working Temp Range (°C): 20...200
20...20020...20020...20020...20020...200- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.21.5...10.21.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...278...278...278...27- Working Temp Range (°C): 20...200
20...20020...20020...20020...20020...200- Heating Capacity (kW): 1
11222- Cooling Capacity:
- Voltage Version: 100V-115V/50-60Hz
100V-115V/50-60Hz100V-115V/50-60Hz200-230V/50-60Hz200-230V/50-60Hz200-230V/50-60Hz- Power A: 11A
11A11A10A10A10A- Plug Type:
- Pump Connection: M16x1 male
M16x1 maleM16x1 maleM16x1 maleM16x1 maleM16x1 male- Interface: Base
AnalogDigitalBaseAnalogDigital- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.21.5...10.21.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...278...278...278...27- Bath Fill Volume (L): 8.5…12
8.5…128.5…128.5…128.5…128.5…12- External Devices: Pt100|Remote Control
Pt100|Remote ControlPt100|Remote ControlPt100|Remote ControlPt100|Remote ControlPt100|Remote Control- Fluid Type: water, silicone
water, siliconewater, siliconewater, siliconewater, siliconewater, silicone- Heating & Cooling: Heating
HeatingHeatingHeatingHeatingHeating- Dimensions W x L x H (in): 13 x 19.3 x 18.5
13 x 19.3 x 18.513 x 19.3 x 18.513 x 19.3 x 18.513 x 19.3 x 18.513 x 19.3 x 18.5- Weight (lbs): 26.2
26.226.226.226.226.2 Key Benefits:- Suitable for internal and external applications
- Powerful and infinitely adjustable pressure pump
- Flow rate 27 l/min, pressure 8.7 psi
- Easy switching between internal and external circulation
- Large color TFT display, multilingual interface
- Central rotary knob (controller) simplifies operation
- Integrated programmer for 8 x 60 program steps
- Integrated external Pt100 connection
- USB port
- RS232 interface or analog interfaces
- Bath cover included with delivery
- Integrated drain makes emptying liquid easy and safe.
- High-quality thermal insulation of the bath tank
