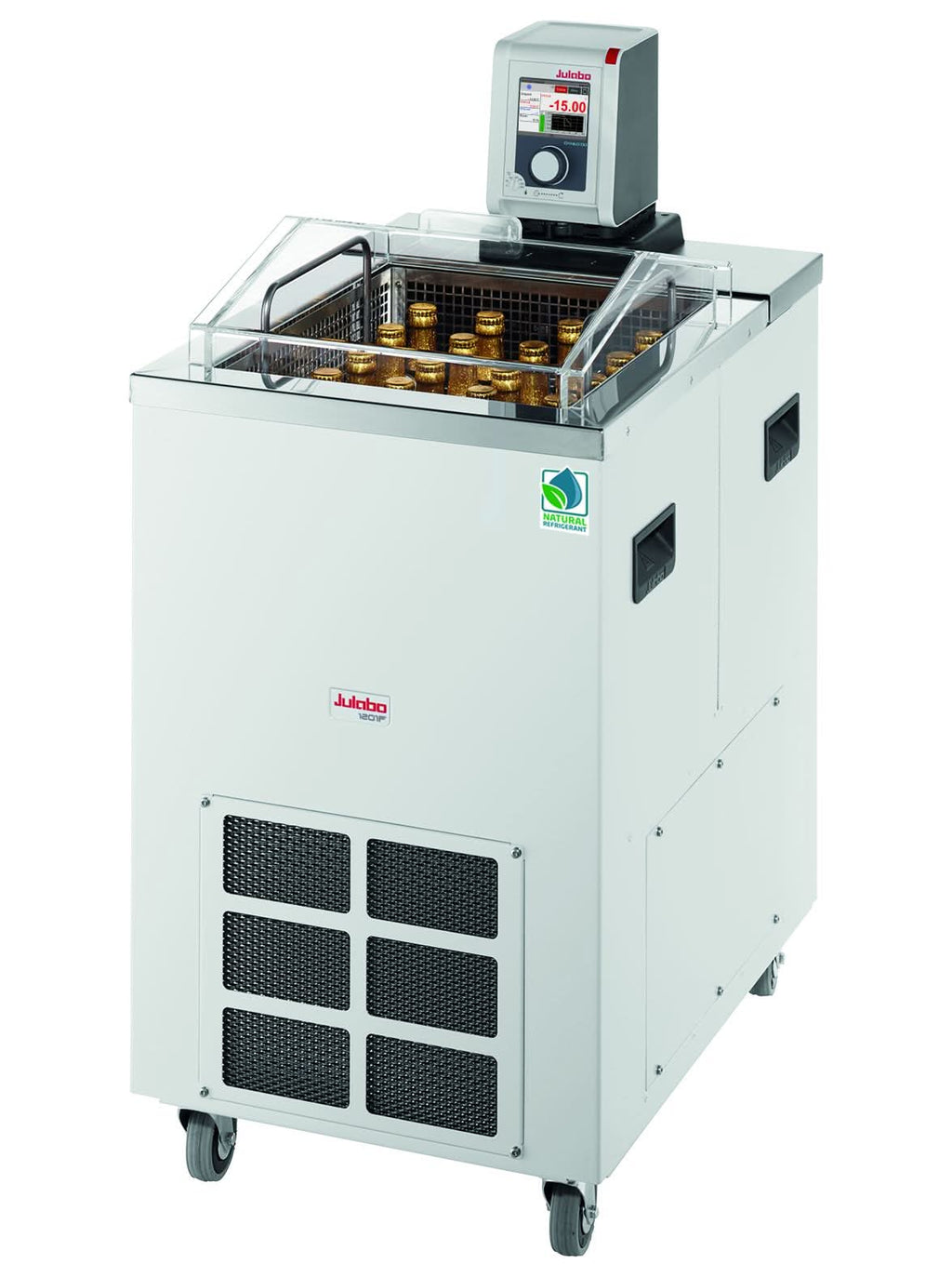

Julabo DYNEO DD-1201F-BF

DYNEO™ DD-1201F-BF Beer-forcing test refrigerated/heating circulator with -40…+100 °C operating range for beer forcing test. The large bath tank (48 – 56L) can accommodate large internal temperature control applications. Included: a 20-position bottle rack with handles for bottles up to 0.5L volume and a Plexiglas bath lid cover. A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control and data-logging with digital option including an RS232 port. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tank and integrated drain port. Class III (FL) according to DIN 12876-1.

• Voltage Version: 208-230V/50-60Hz
• Refrigerant: R1270
• Interface: Digital
• Heating & Cooling: Both
• Working Temp Range (°C): -40...100
• PCF Pressure (psi): 1.5...10.2
• PCF Rate (l/min): 8...27
• Working Temp Range (°C): -40...100
• Heating Capacity (kW): 2
• Voltage Version: 208-230V/50-60Hz
• Power A: 14A
• Plug Type: NEMA 6-20P
• Pump Connection: M16x1 male
• Interface: Digital
• PCF Pressure (psi): 1.5...10.2
• PCF Rate (l/min): 8...27
• Bath Fill Volume (L): 42…56
• External Devices:
• Fluid Type: water, silicone, water/glycol
• Heating & Cooling: Both
• Dimensions W x L x H (in): 17.7 x 25.2 x 37.4
• Weight (lbs): 150
• Refrigerant: R1270

• Powerful cooling machines
• Optimized cooling coil design saves space in the bath tank
• Powerful and infinitely adjustable pressure pump
• Flow rate 27 l/min, pressure 8.7 psi
• Easy switching between internal and external circulation
• Large color TFT display, multilingual interface
• Central rotary knob (controller) simplifies operation
• Integrated programmer for 8 x 60 program steps
• Integrated external Pt100 connection
• USB port
• RS232 interface
• Clear bath cover and bottle basket included with delivery
• Integrated drain makes emptying liquid easy and safe.
