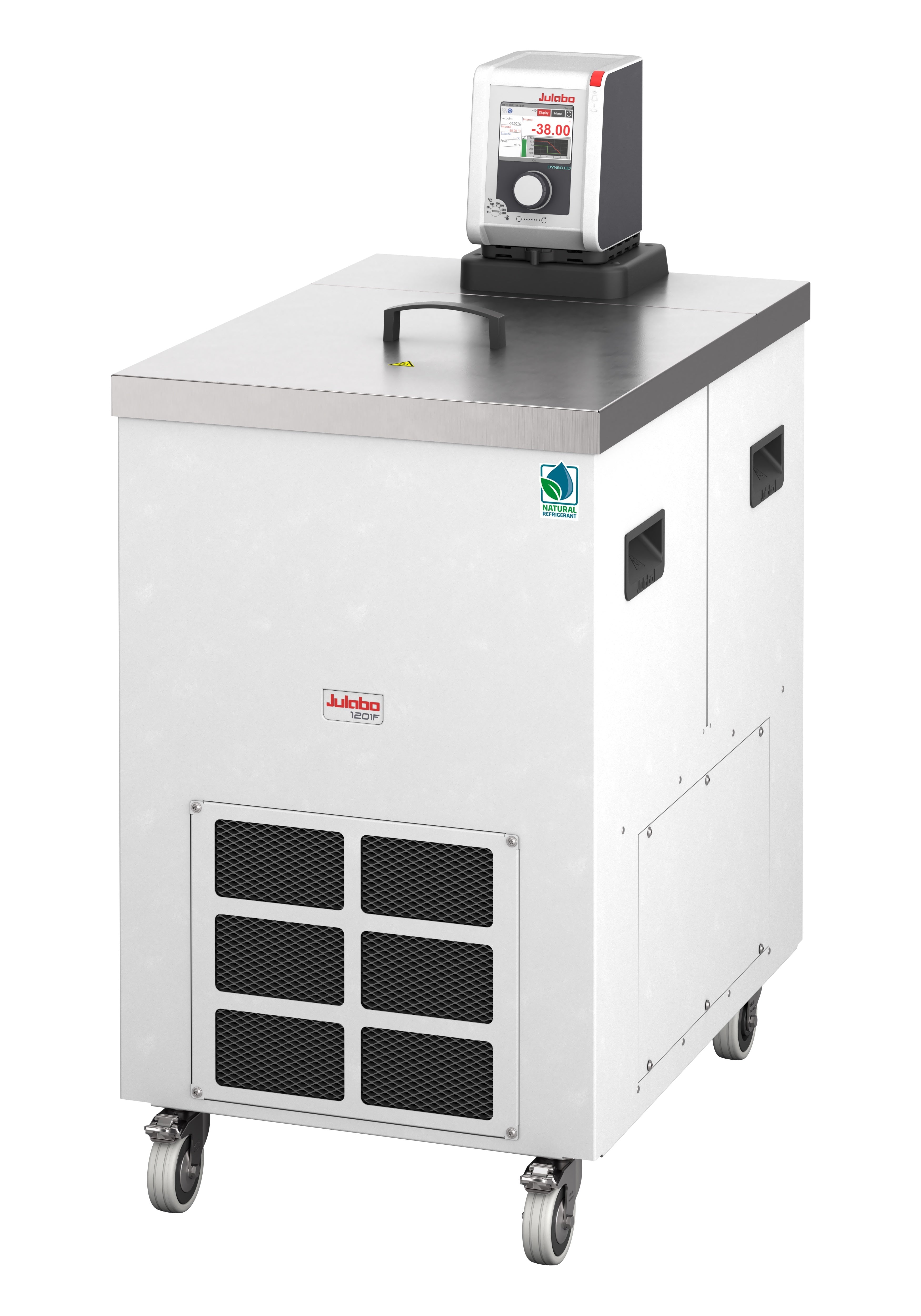

DYNEO™ DD-1201F refrigerated/heating circulator with -40…+100 °C operating range. The large bath tank (48 – 56L) can accommodate large internal temperature control applications. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control and data-logging with digital options including RS232 port or an analog module interface; for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tank with lid and integrated drain port. Class III (FL) according to DIN 12876-1.
Product Specifications:- Voltage Version: 208-230V/50-60Hz208-230V/50-60Hz208-230V/50-60Hz
- Refrigerant: R1270
R1270R1270- Interface: Base
AnalogDigital- Heating & Cooling: Both
BothBoth- Working Temp Range (°C): -40...100
-40...100-40...100- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...27- Working Temp Range (°C): -40...100
-40...100-40...100- Heating Capacity (kW): 2
22- Voltage Version: 208-230V/50-60Hz
208-230V/50-60Hz208-230V/50-60Hz- Power A: 14A
14A14A- Plug Type: NEMA 6-20P
NEMA 6-20PNEMA 6-20P- Pump Connection: M16x1 male
M16x1 maleM16x1 male- Interface: Base
AnalogDigital- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...27- Bath Fill Volume (L): 42…56
42…5642…56- External Devices:
- Fluid Type: water, silicone, water/glycol
water, silicone, water/glycolwater, silicone, water/glycol- Heating & Cooling: Both
BothBoth- Dimensions W x L x H (in): 17.7 x 25.2 x 37.4
17.7 x 25.2 x 37.417.7 x 25.2 x 37.4- Weight (lbs): 150
150150- Refrigerant: R1270
R1270R1270 Key Benefits:- Powerful cooling machines
- Suitable for internal and external applications
- Optimized cooling coil design saves space in the bath tank
- Powerful and infinitely adjustable pressure pump
- Flow rate 27 l/min, pressure 8.7 psi
- Easy switching between internal and external circulation
- Large color TFT display, multilingual interface
- Central rotary knob (controller) simplifies operation
- Integrated programmer for 8 x 60 program steps
- Integrated external Pt100 connection
- USB port
- RS232 interface or analog interfaces (optional)
- Bath cover included with delivery
- Integrated drain makes emptying liquid easy and safe.
