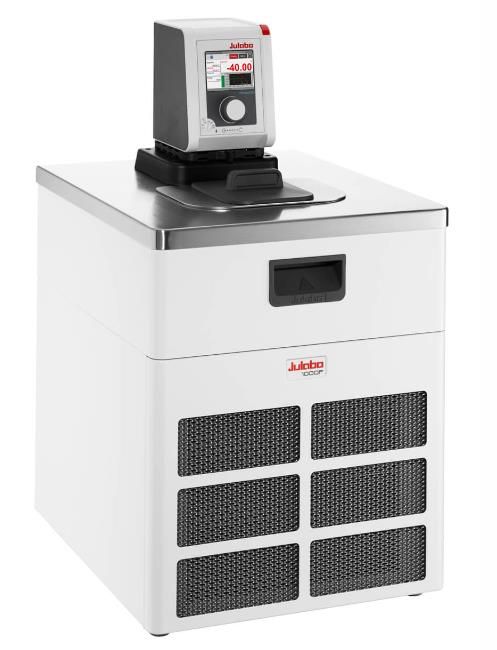

DYNEO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low-temperature capabilities from -20 °C to -50 °C with an upper-temperature limit of 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A color TFT display with a central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control, and data-logging with digital options including RS232 port or an analog module interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tanks with integrated drain port.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
(Canadian and US NRTL Certified for both 110v & 220v)
Features:
- Powerful cooling machines
- Suitable for internal and external applications
- Optimized cooling coil design saves space in the bath tank
- Powerful and infinitely adjustable pressure pump
- Flow rate 27 l/min, pressure 8.7 psi
- Easy switching between internal and external circulation
- Large color TFT display, multilingual interface
- The central rotary knob (controller) simplifies the operation
- Integrated programmer for 8 x 60 program steps
- Integrated external Pt100 connection
- USB port
- RS232 interface or analog interfaces (optional)
- Bath cover included with delivery
- An integrated drain makes emptying liquid easy and safe.
Julabo DD-1000F Ai glass reactor package with adapters and tubing
- QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
- QTY2. P/N 8891243 M16x1 m/m adapter x 2
- QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
- QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4" male x 1
Julabo DD-1000F Ai glass reactor package with adapters, tubing, and fluid
- QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
- QTY2. P/N 8891243 M16x1 m/m adapter x 2
- QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
- QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4" male x 1
- QTY1. P/N 8891402 Julabo Thermal C5 - 10 Liter x 1
- QTY1. P/N 8891403 Julabo Thermal C5 - 5 Liter x 1
| Cooling Capacity |
|
|---|
| Heating Capacity (kW) |
1 @ 115 V, 2 @ 230 V |
|---|---|
| Heating or Cooling Capability |
Both |
| Working Temp Range (°C) |
-50…+200 |
| External Devices |
Remote Control |
| Pump Capacity Flow Pressure (psi) |
1.5…10.2 |
| Dimensions W x L x H (in) |
16.5 x 19.3 / 27.6 |
| Pump Capacity Flow Rate (l/min) |
8…27 |
| Fluid Type |
Silicone, Water, Other |
| Weight (lbs) |
112.9 |
| Voltage Version |
115 V / 60 Hz, 200 V – 230 V / 50 – 60 Hz |
| Additional Options |
Base Model, Analog Interface, Analog Interface & NRTL, Digital Interface, Digital Interface & NRTL, NRTL |
|
Part description |
Quantity |
Part image |
| Julabo DYNEO DD-1000F -50C +200C Refrigerated/Heating Circulator | 1 pc | |
| Power Cord | 1 pc | |
| Caps and Nuts M16x1 (Item Installed On Pump Head of Unit) |
4 pc | |
| 8 mm Hose Barbs | 2 pc | |
| 12 mm Hose Barbs | 2 pc | |
| User's Manual | 1 pc |
