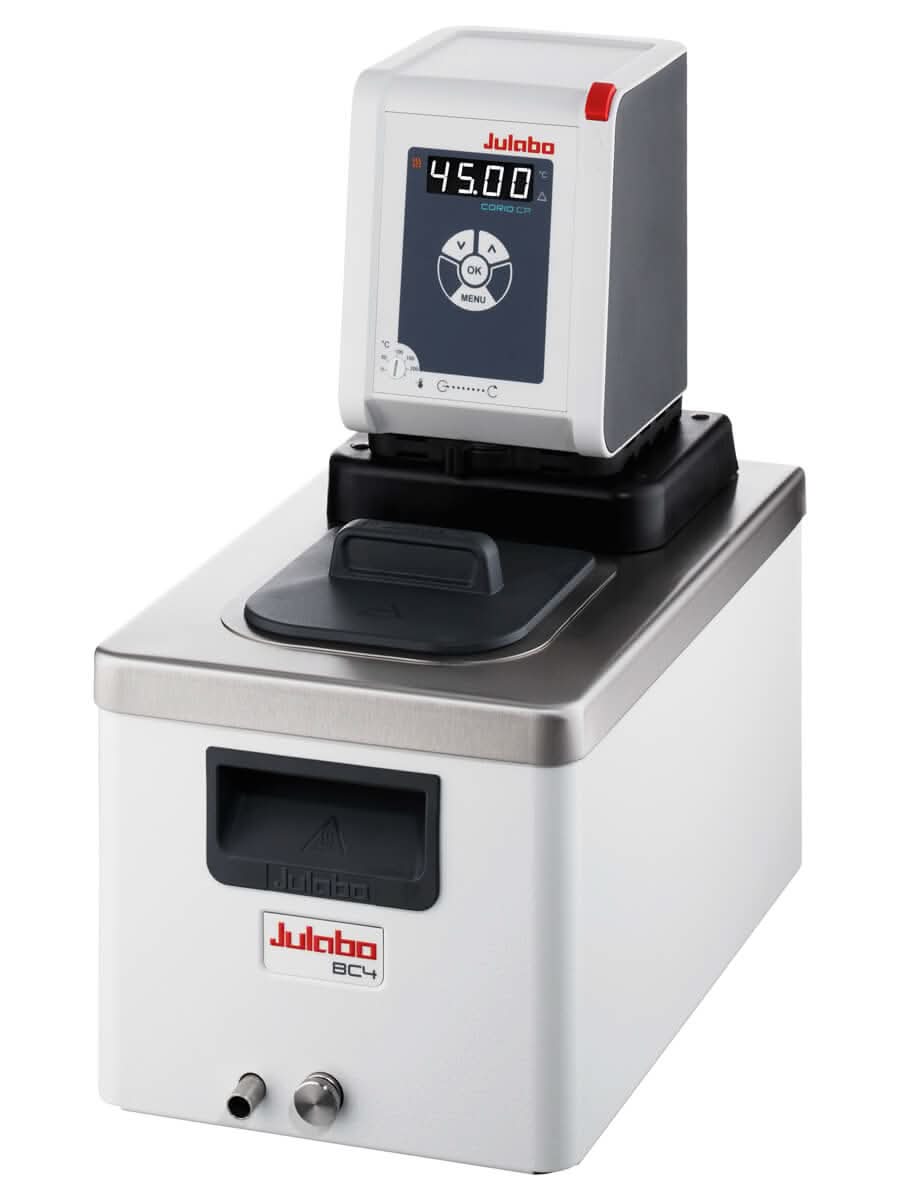

CORIO™ CP heating circulators are suitable for temperature applications to 200 °C with circulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CP circulator incorporates easy change-over for control of fluid circulation internally or externally.
Pump inlet/outlet fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated cooling coil and drain ports. Bright LED display with easy to use interface including USB and RS232 connections for external PC control and data-logging. PID temperature control provides ±0.02 °C stability. Adjustable centrifugal pump capacity of 8-27 L/min with pressure from 1.5-10.2 psi
Class III (FL) according to DIN 12876-1
- Voltage Version: 100V-115V/50-60Hz200-230V/50-60Hz
- Heating & Cooling: Heating
Heating- Working Temp Range (°C): 20...200
20...200- PCF Pressure (psi): 1.5...10.7
1.5...10.9- PCF Rate (l/min): 8...32
8...34- Working Temp Range (°C): 20...200
20...200- Heating Capacity (kW): 1
2- Cooling Capacity:
- Voltage Version: 100V-115V/50-60Hz
200-230V/50-60Hz- Power A: 10A
10A- Plug Type:
- Pump Connection: M16x1 male
M16x1 male- PCF Pressure (psi): 1.5...10.7
1.5...10.9- PCF Rate (l/min): 8...32
8...34- Bath Fill Volume (L): 3…4.5
3…4.5- External Devices: Remote Control
Remote Control- Fluid Type: water, silicone
water, silicone- Heating & Cooling: Heating
Heating- Dimensions W x L x H (in): 9.1 x 16.2 x 16.6
9.1 x 16.2 x 16.6- Weight (lbs): 19.4
19.4 Key Benefits:- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over between internal and external circulation
- USB & RS232 connection
- High-quality bath tanks made of stainless steel with bath lid and drain tap
- Integrated cooling coil for counter-cooling
