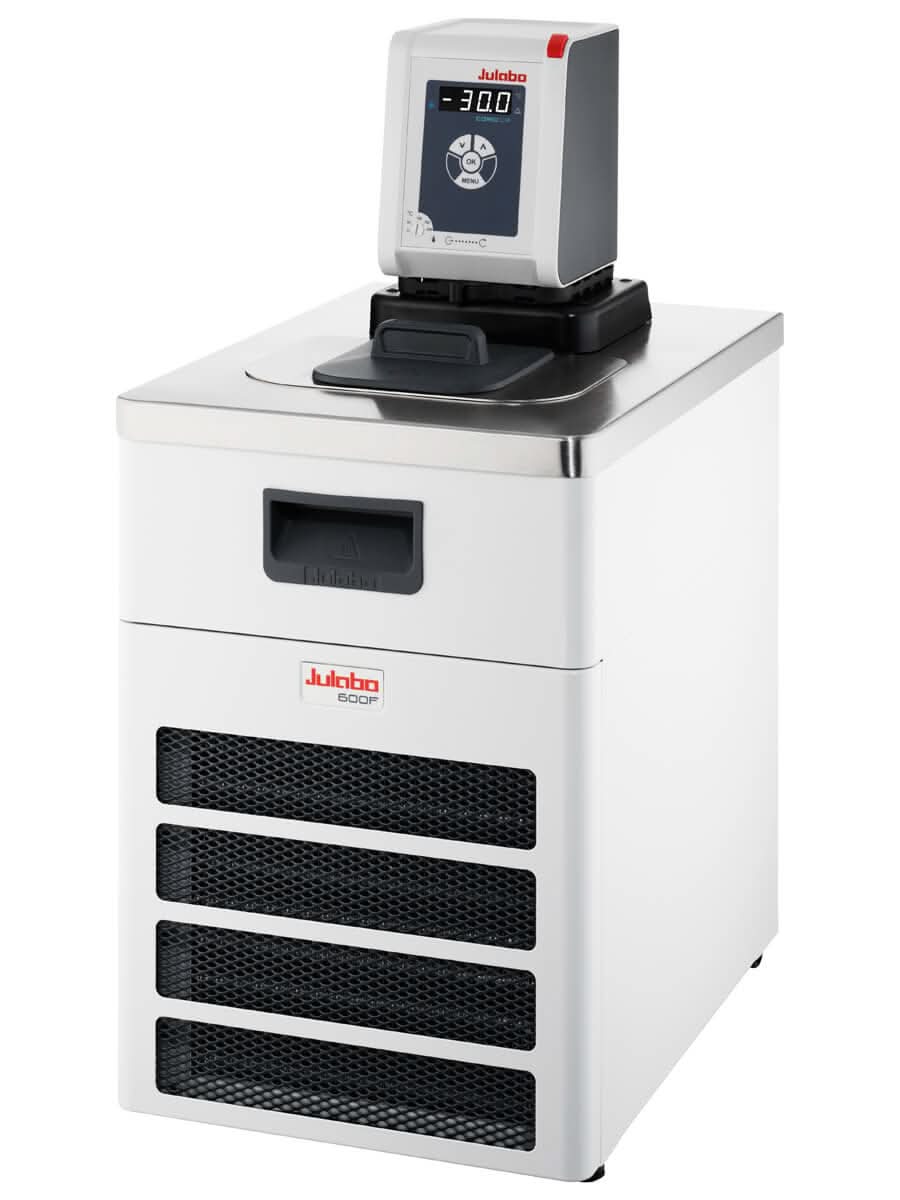

Julabo CORIO CP-600F

CORIO™ CP refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations offer low temperatures between -20 °C to -50 °C with an upper limit of 200 °C. The CORIO™ CP circulator incoporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.
USB and RS232 connections for external PC control and data-logging. A space-saving cooling coil design yields more usable space in the bath tank. Bath lid and drain tap included.
PID temperature control provides ±0.03 °C stability. Adjustable centrifugal pump capacity of 8…27 L/min with pressures 1.5…10.2 psi.
Stainless steel bath tank. Class III (FL) according to DIN 12876-1

• Voltage Version: 230V/50-60Hz
• Refrigerant: R449A
• Heating & Cooling: Both
• Working Temp Range (°C): -35...200
• PCF Pressure (psi): 1.5...10.2
• PCF Rate (l/min): 8...27
• Working Temp Range (°C): -35...200
• Heating Capacity (kW): 2
• Voltage Version: 230V/50-60Hz
• Power A: 14A
• Plug Type:
• Pump Connection: M16x1 male
• PCF Pressure (psi): 1.5...10.2
• PCF Rate (l/min): 8...27
• Bath Fill Volume (L): 5…7.5
• External Devices: Remote Control
• Fluid Type: water, silicone, water/glycol
• Heating & Cooling: Both
• Dimensions W x L x H (in): 13 x 18.5 x 27.2
• Weight (lbs): 78.7
• Refrigerant: R449A

• Models for internal and external applications
• Bright, white, easy to read display
• Very quiet
• Easy pump change-over (internal and external circulation)
• External pump connections (M16x1)
• USB & RS232 connection
• Space-saving cooling coil design yields more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
