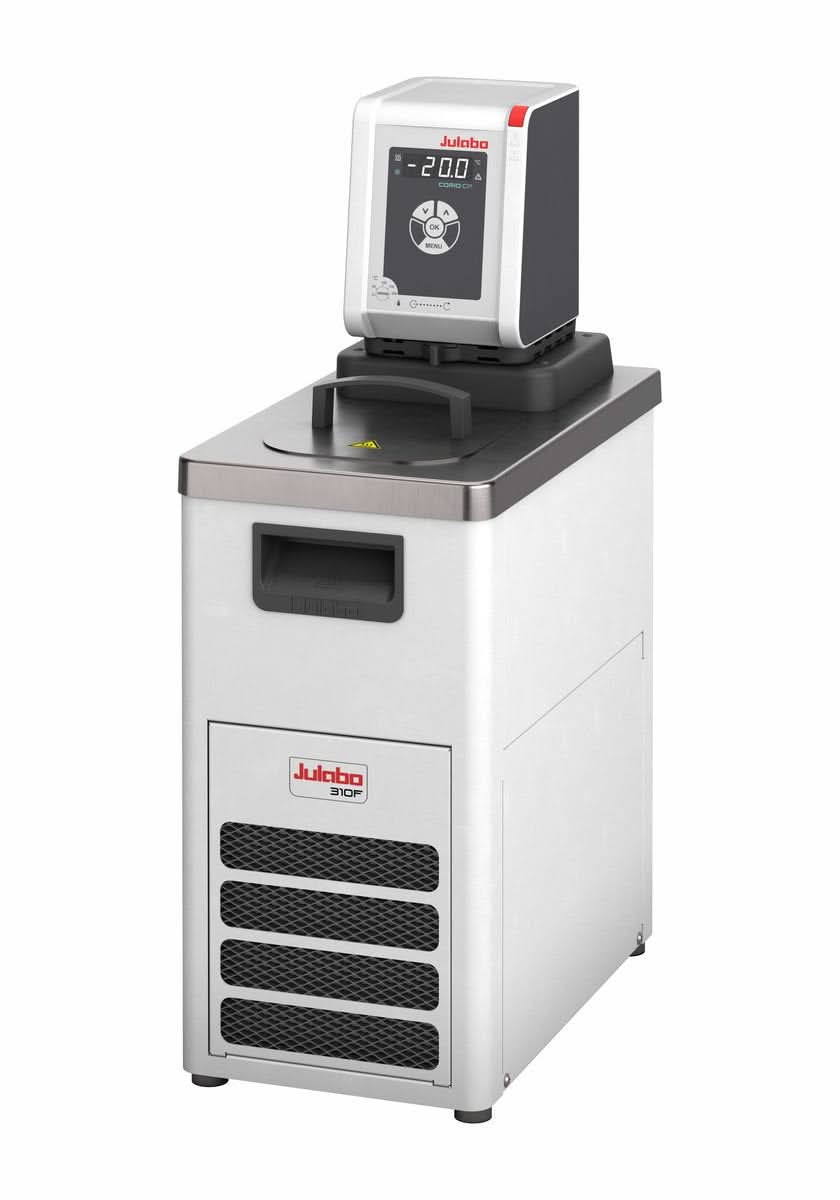

CORIO™ CP-310F refrigerated/heating circulator with an operating range of -30…+200 °C and ±0.03 °C stability. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CP circulator incorporates easy change-over for control of fluid circulation internally or externally and an adjustable pump from 8-27 L/min; 1.5-10.2 PSI. The CORIO CP includes USB-B and RS232 ports for PC communication and a USB-A port for datalogging. Unit fittings: M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. 300W cooling power at 20 °C with 20W at -30 °C. Options for heating power (1kW or 2kW) and refrigerant (R290 natural refrigerant or R449A synthetic refrigerant).
Class III (FL) according to DIN 12876-1.
- Voltage Version: 115V/60Hz200-230V/50-60Hz115V/60Hz200-230V/50-60Hz
- Refrigerant: R290
R290R449AR449A- Heating & Cooling: Both
BothBothBoth- Working Temp Range (°C): -30...200
-30...200-30...200-30...200- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...278...27- Working Temp Range (°C): -30...200
-30...200-30...200-30...200- Heating Capacity (kW): 1
212- Voltage Version: 115V/60Hz
200-230V/50-60Hz115V/60Hz200-230V/50-60Hz- Power A: 12A
13A12A13A- Plug Type:
- Pump Connection: M16x1 male
M16x1 maleM16x1 maleM16x1 male- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...278...27- Bath Fill Volume (L): 3…4
3…43…43…4- External Devices: Remote Control
Remote ControlRemote ControlRemote Control- Fluid Type: water, water/glycol
water, water/glycolwater, silicone, water/glycolwater, silicone, water/glycol- Heating & Cooling: Both
BothBothBoth- Dimensions W x L x H (in): 9.1 x 15.7 x 25.6
9.1 x 15.7 x 25.69.1 x 15.7 x 25.69.1 x 15.7 x 25.6- Weight (lbs): 56.4
56.456.456.4- Refrigerant: R290
R290R449AR449A Key Benefits:- For internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over (internal and external circulation)
- External pump connections (M16x1)
- USB & RS232 connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- Class III (FL) according to DIN 12876-1
