Description

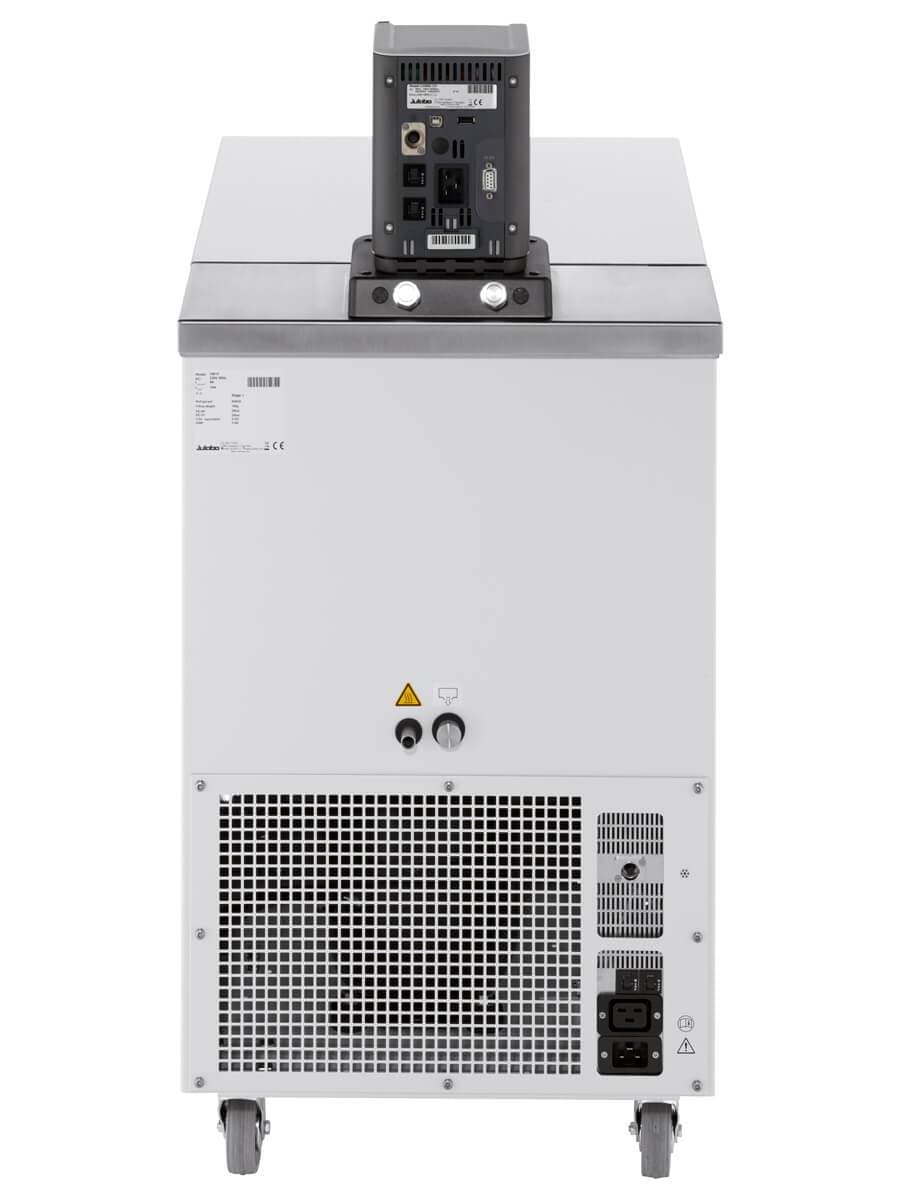

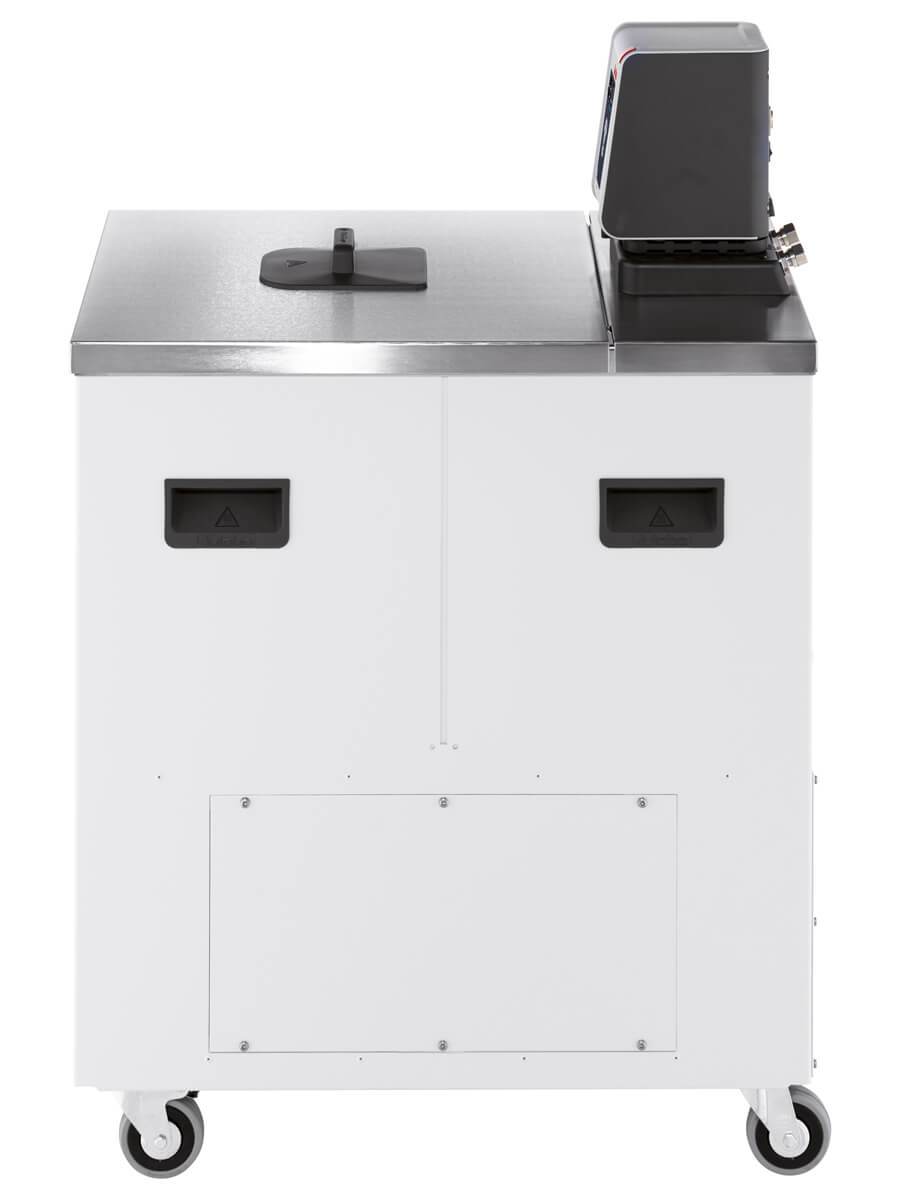

Julabo CORIO CP-1001F
Call for lead time
Refrigerated Circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Key Benefits:
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over (internal and external circulation)
- External pump connections (M16x1)
- USB & RS232 connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- Class III (FL) according to DIN 12876-1
Technical Data | |
---|---|
Order No. | 9013708 |
Model series | CORIO |
Category | Refrigerated - Heating Circulators |
Working temperature range (°C) | -38 ... +100 |
Temperature control | PID |
Temperature stability (°C) | ±0.03 |
Setting / display resolution | 0.01 – 0.1 °C |
Temperature Display | LED |
Heating capacity (kW) | 1 |
Cooling capacity (Medium Ethanol) | °C 20 10 0 -10 -20 -30 kW 1 0.95 0.9 0.6 0.6 0.12 |
Pump capacity flow rate (l/min) | 8 ... 27 |
Pump capacity flow pressure (psi) | 1.5 ... 10.2 |
Bath opening / bath depth (W x L / D inch) | 13.8 x 16.1 x 11.8 |
Pump connections | M16x1 |
Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
Filling volume (liters) | 42 ... 56 |
Refrigerant stage 1 | R449a |
Filling volume refrigerant stage 1 (g) | 170 |
Ambient temperature | 5...40 °C |
Dimensions W x L x H (inch) | 17.7 x 25.2 x 37.4 |
Weight (LBS) | 162.5 |
Included with each unit | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) |
Bath tank | Stainless steel |
Bath cover | integrated |
Cooling of compressor | Air |
